Electrical Diagrams



SIR, Schematics

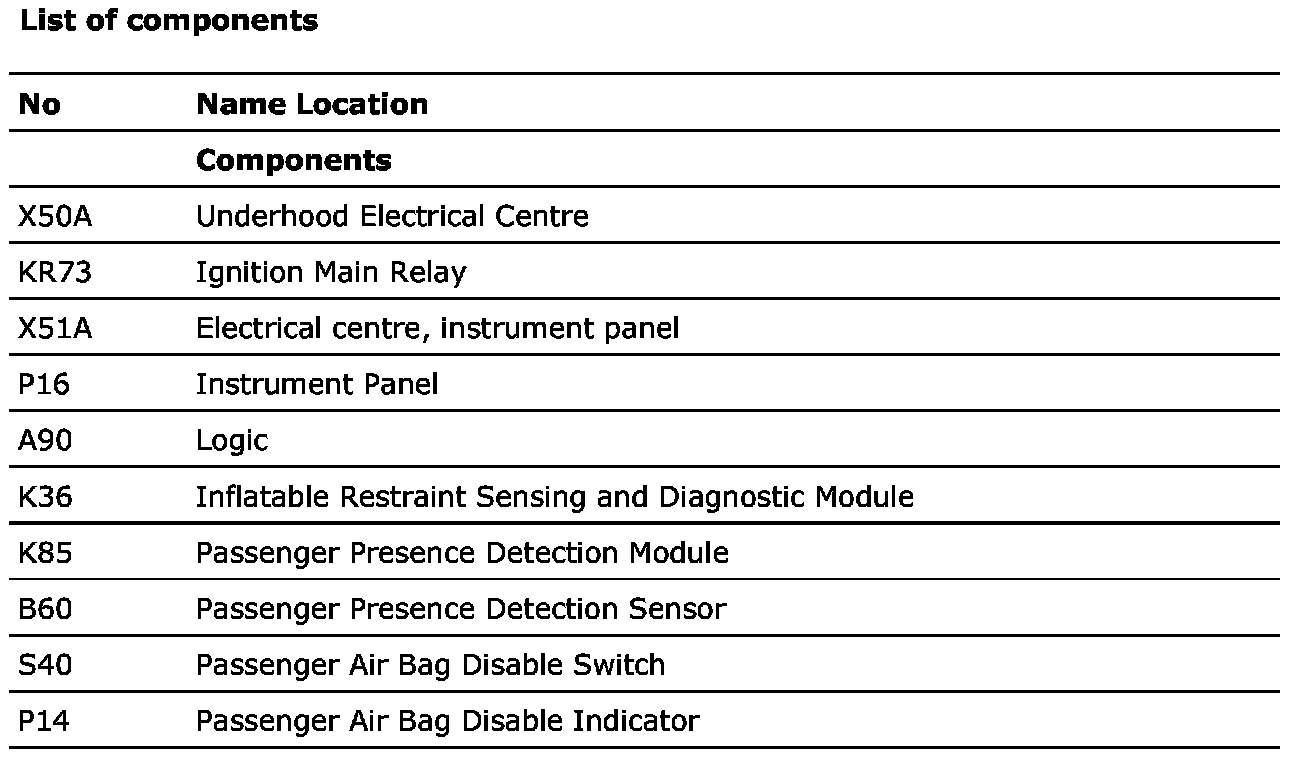

Power, Ground, Serial Data, Indicators, Disable Switch, and Passenger Presence

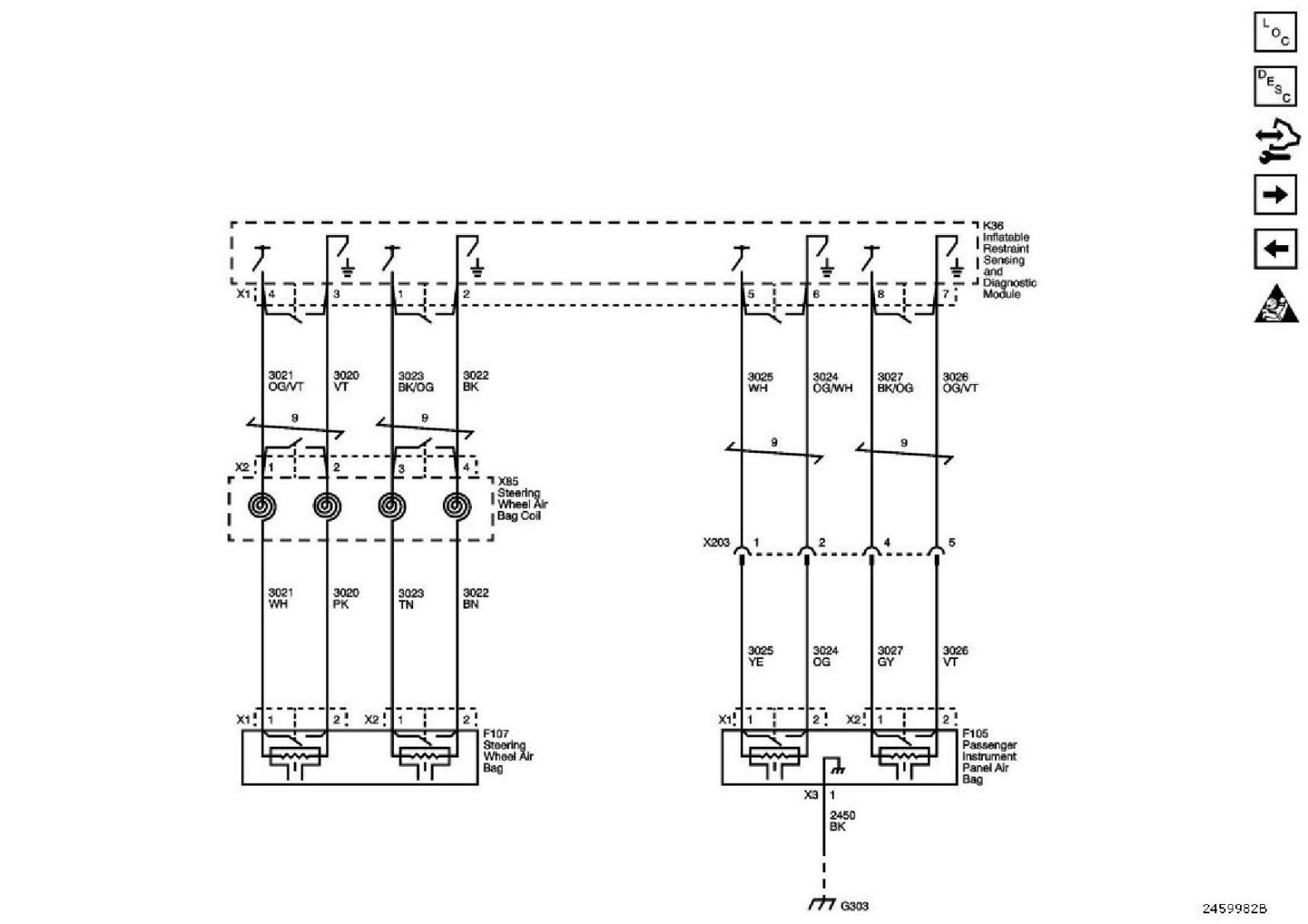

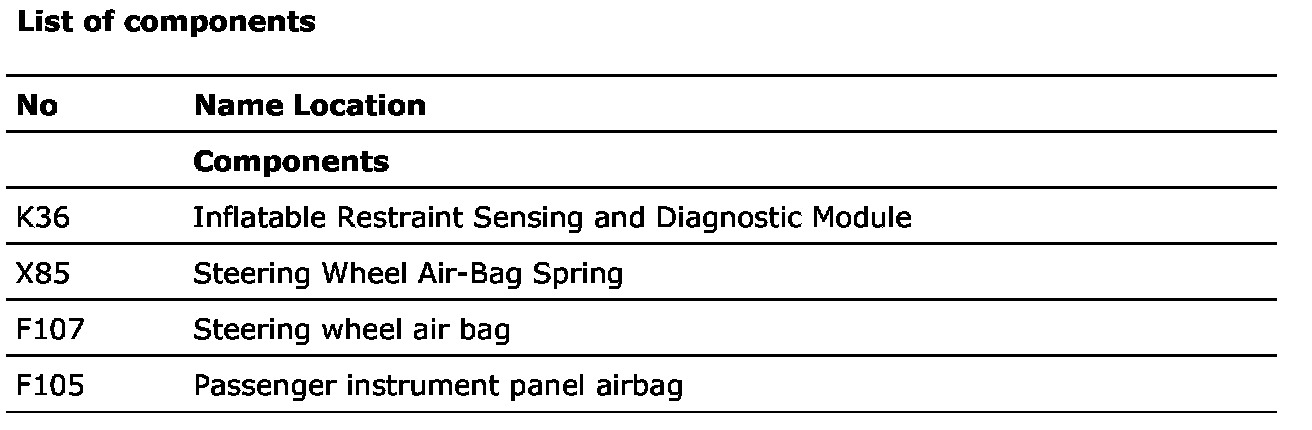

Frontal Air Bags

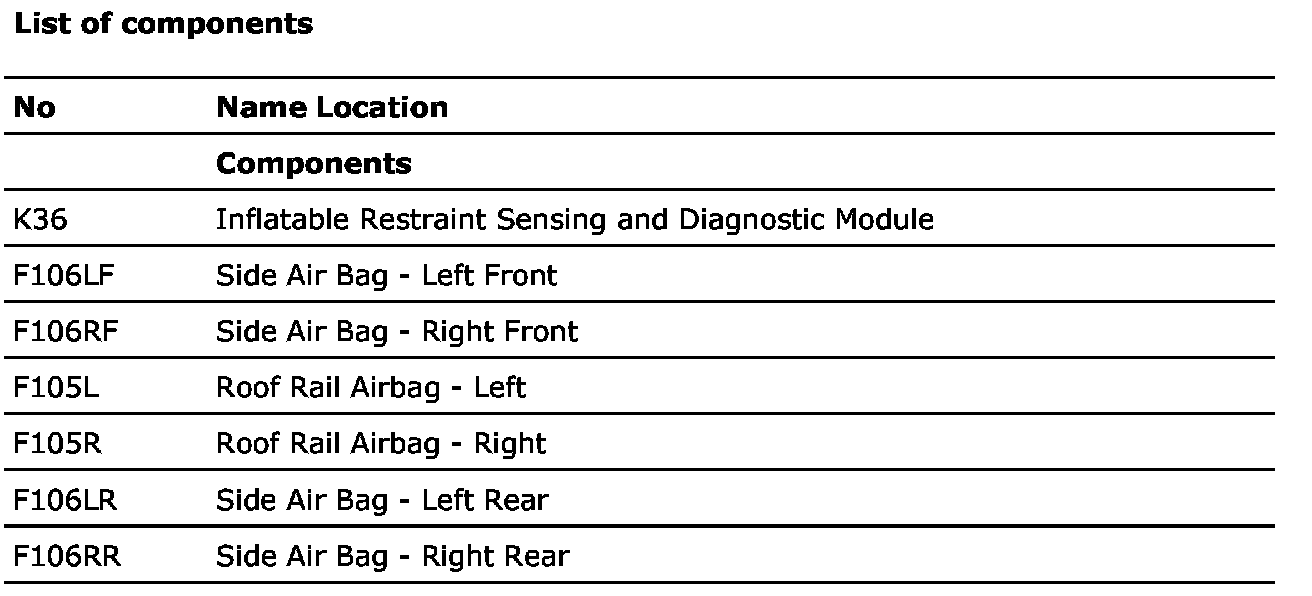

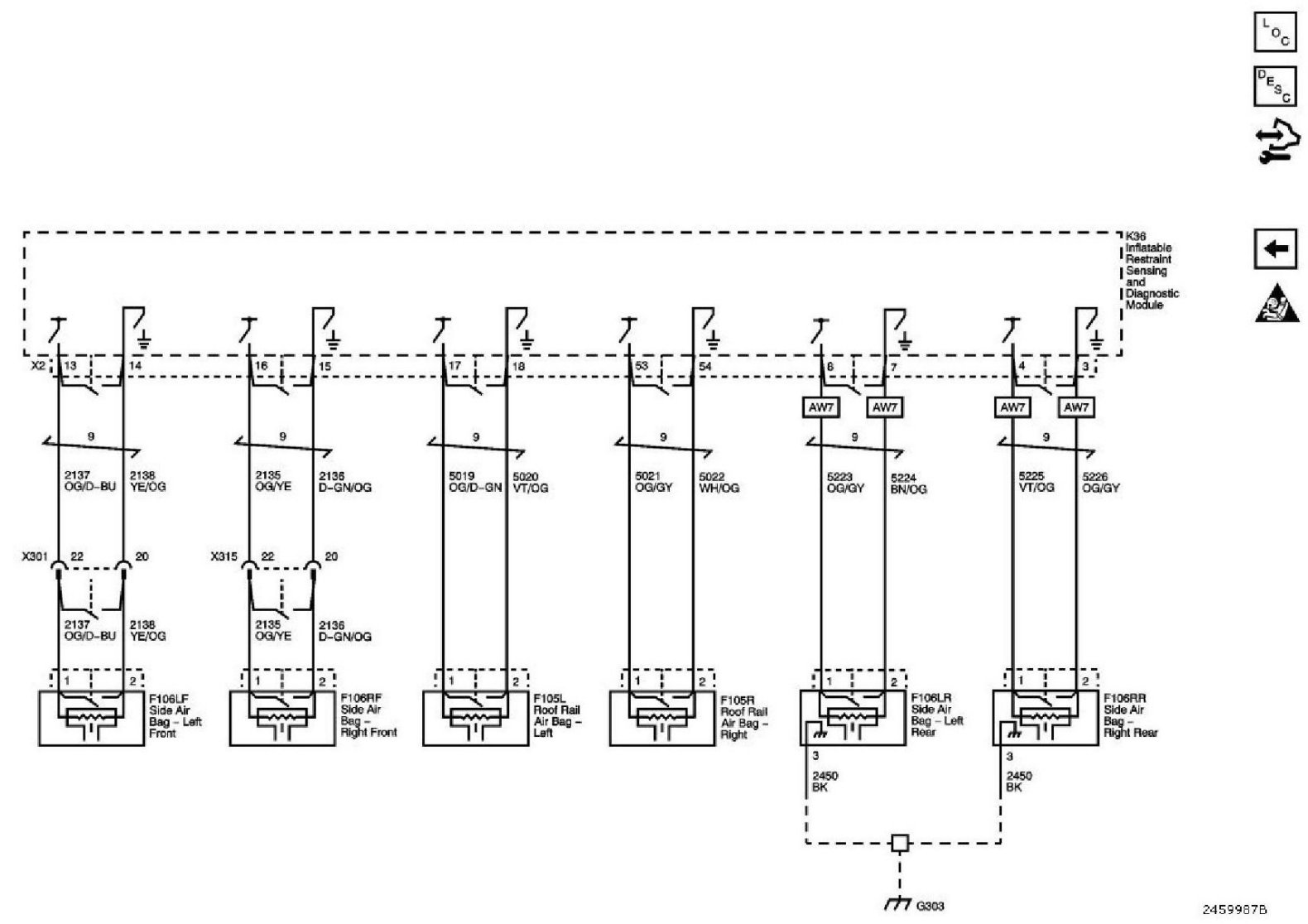

Side and Roof Rail Air Bags

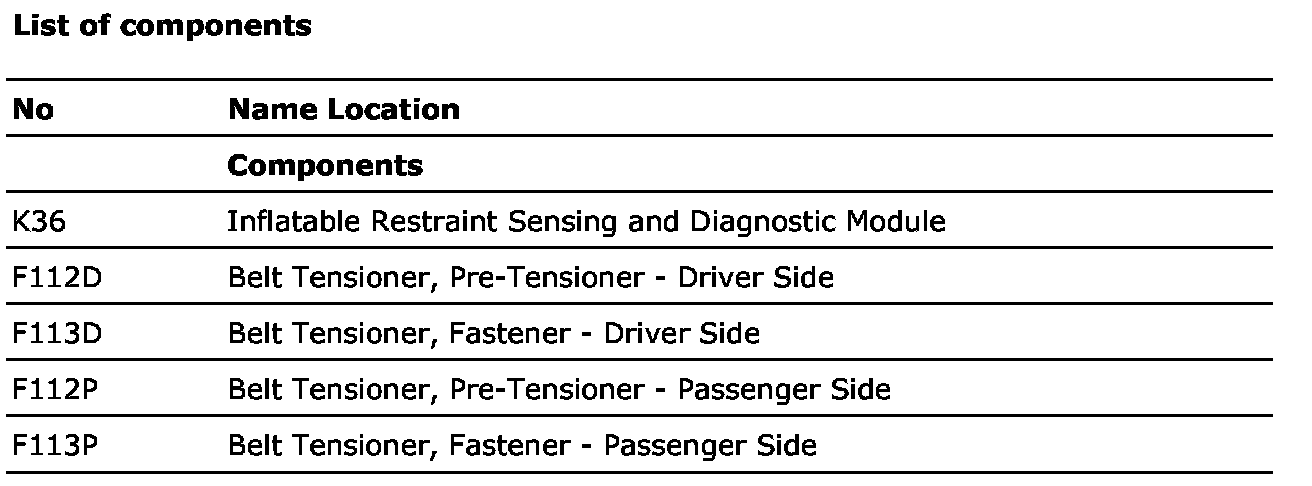

Belt Tensioner

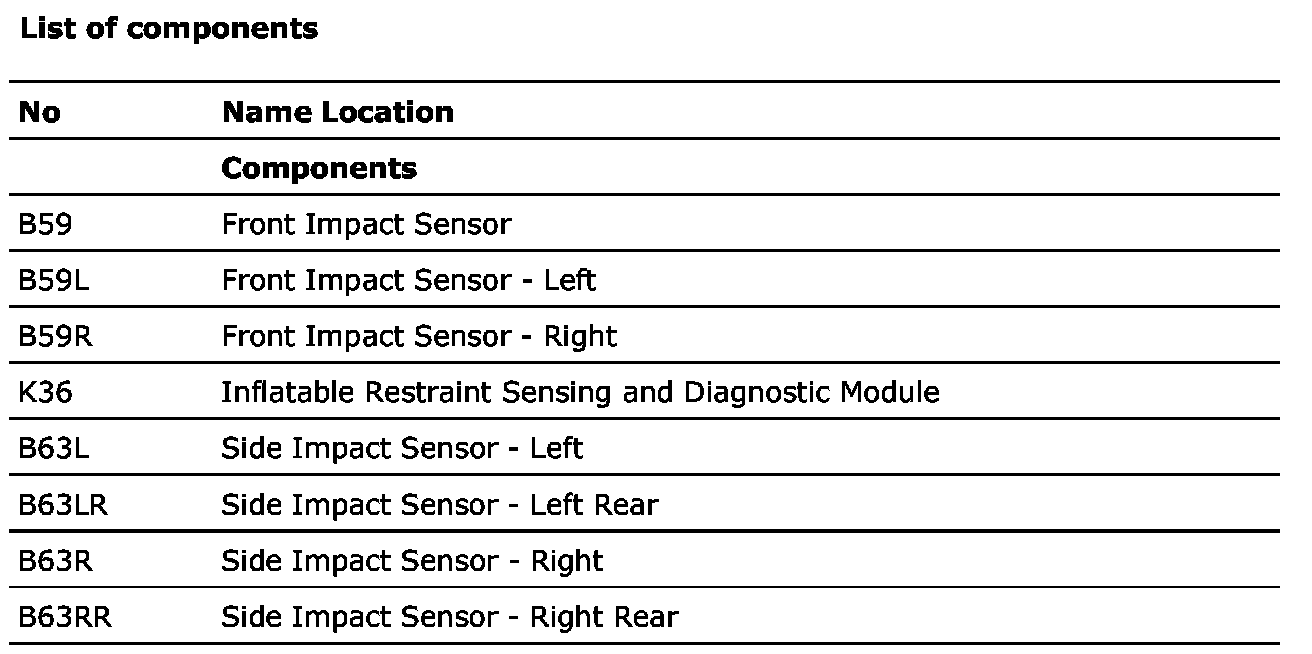

Impact Sensors
