Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
2011
>>
9-3 FWD (9440) L4-2.0L Turbo
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>

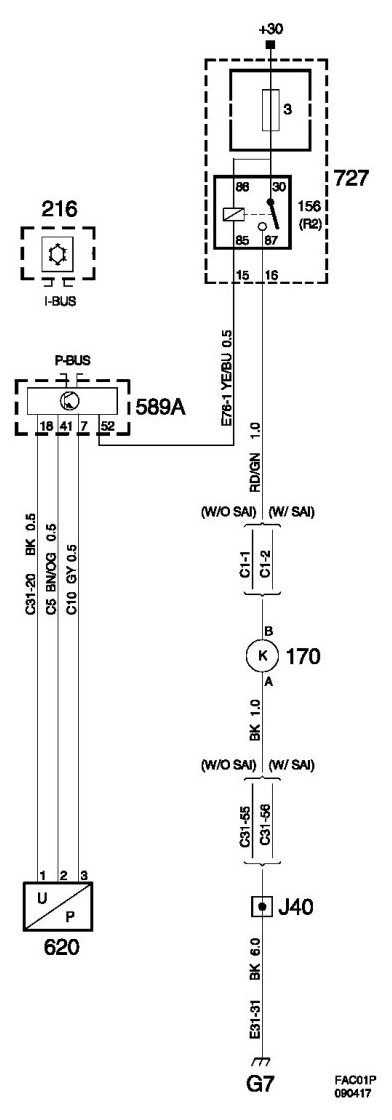

Air Conditioning A/C, B207
Air Conditioning A/C, B207
Air Conditioning A/C, B207

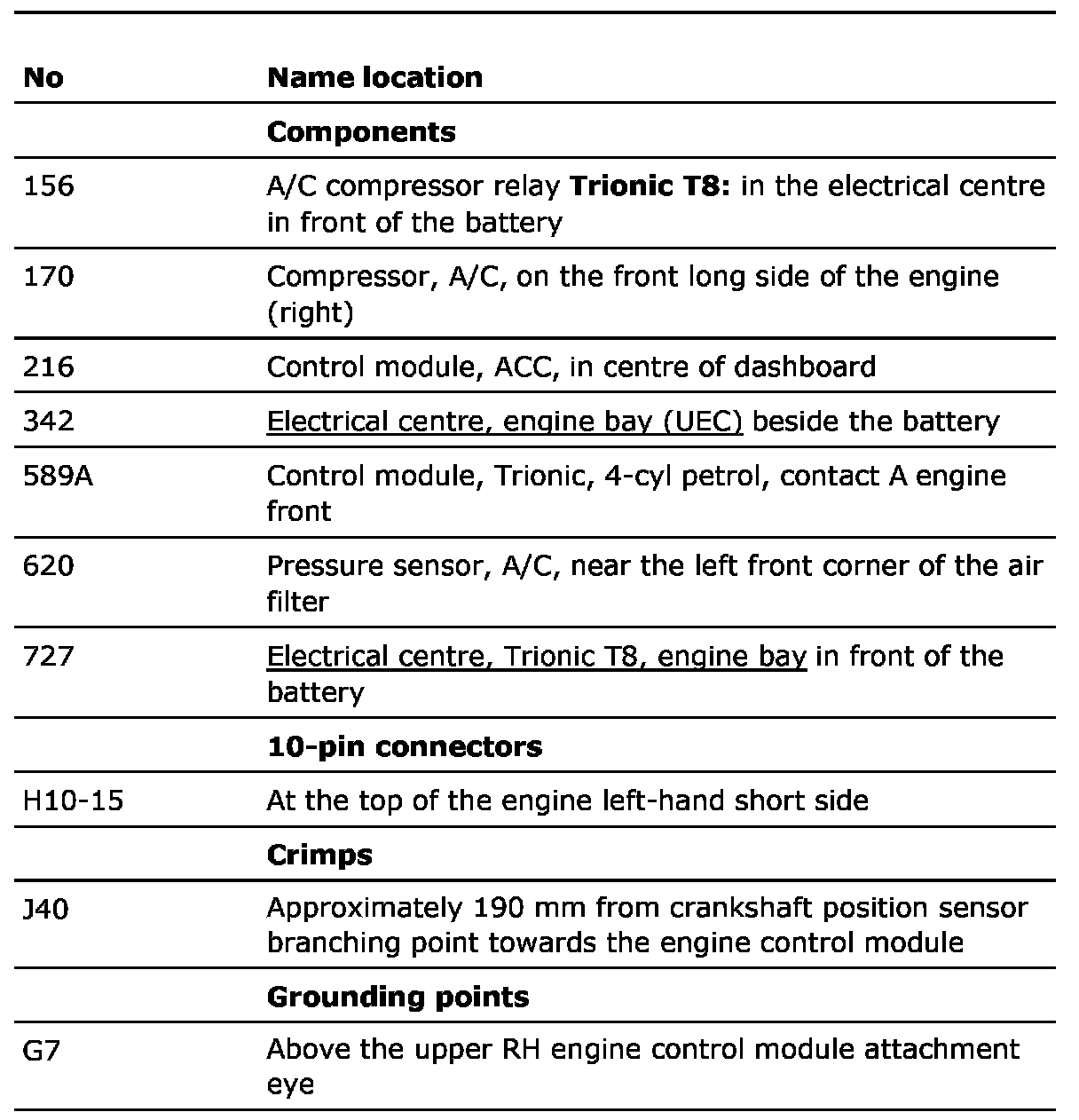

List of components
