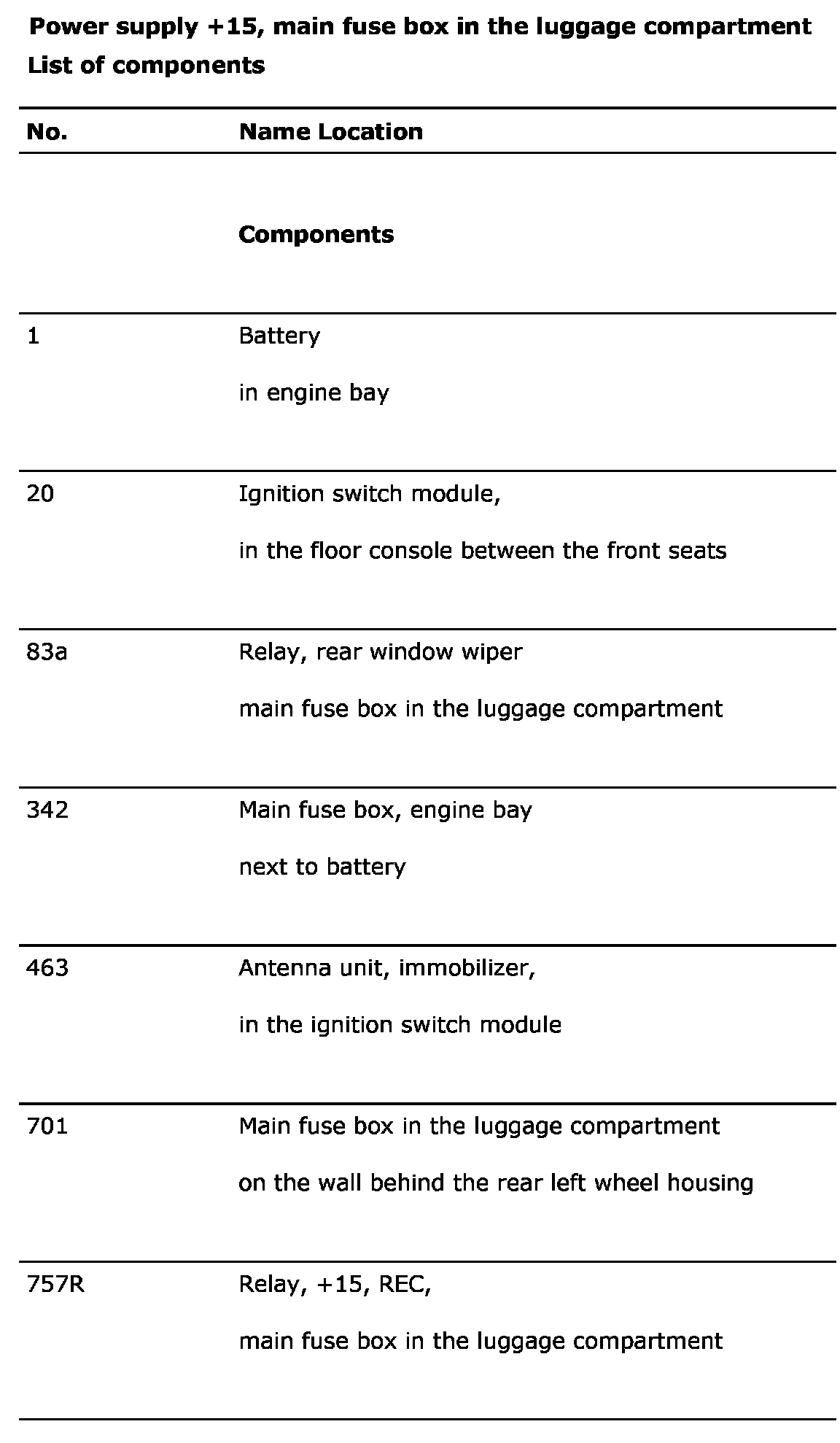

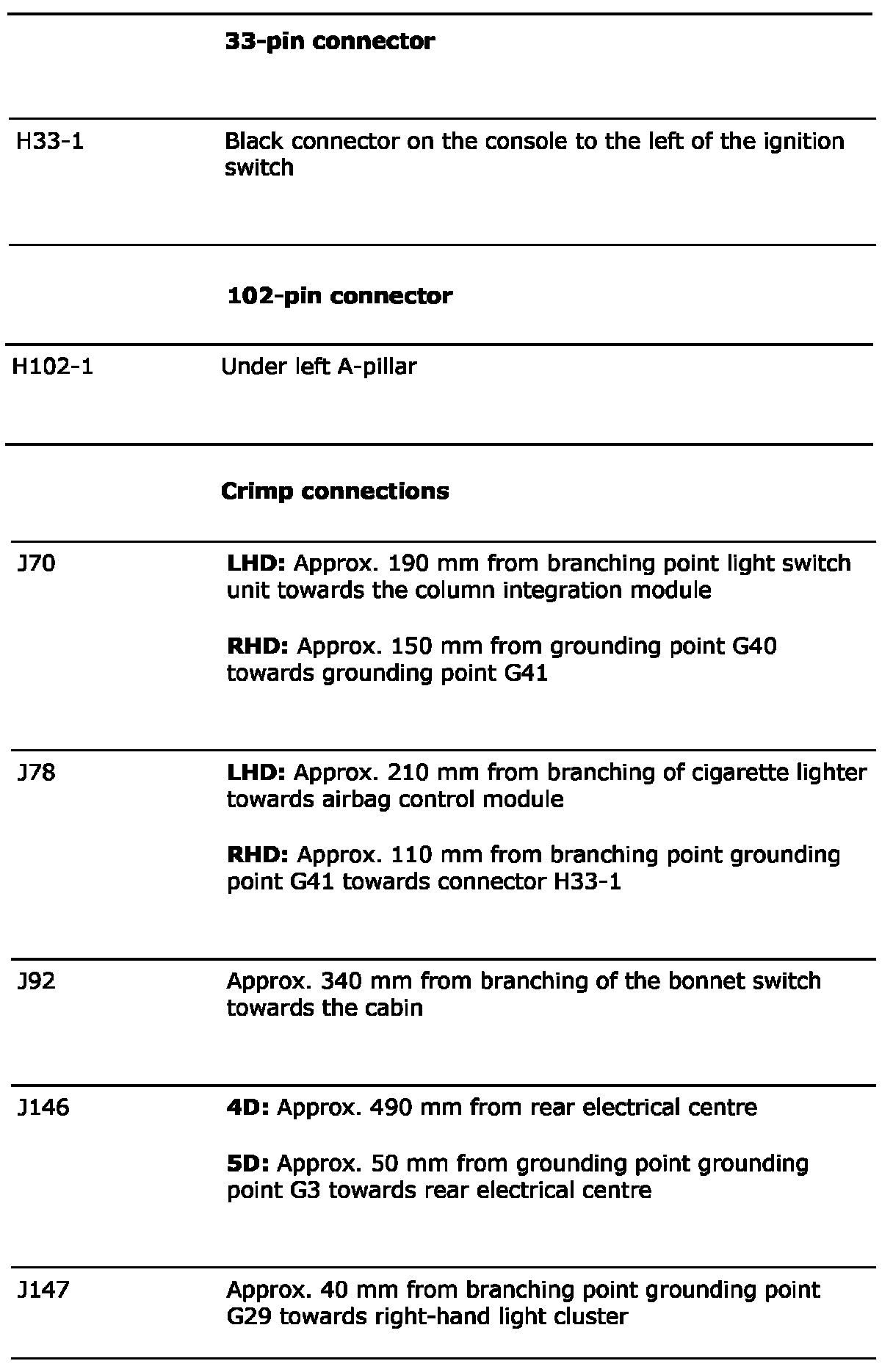

Power Supply +15, Main Fuse Box In the Luggage Compartment
Power Supply +15, Main Fuse Box In the Luggage Compartment
