Home >> Saab >> 2011 >> 9-3 FWD (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Supply +30 Main Fuse Box In the Luggage Compartment

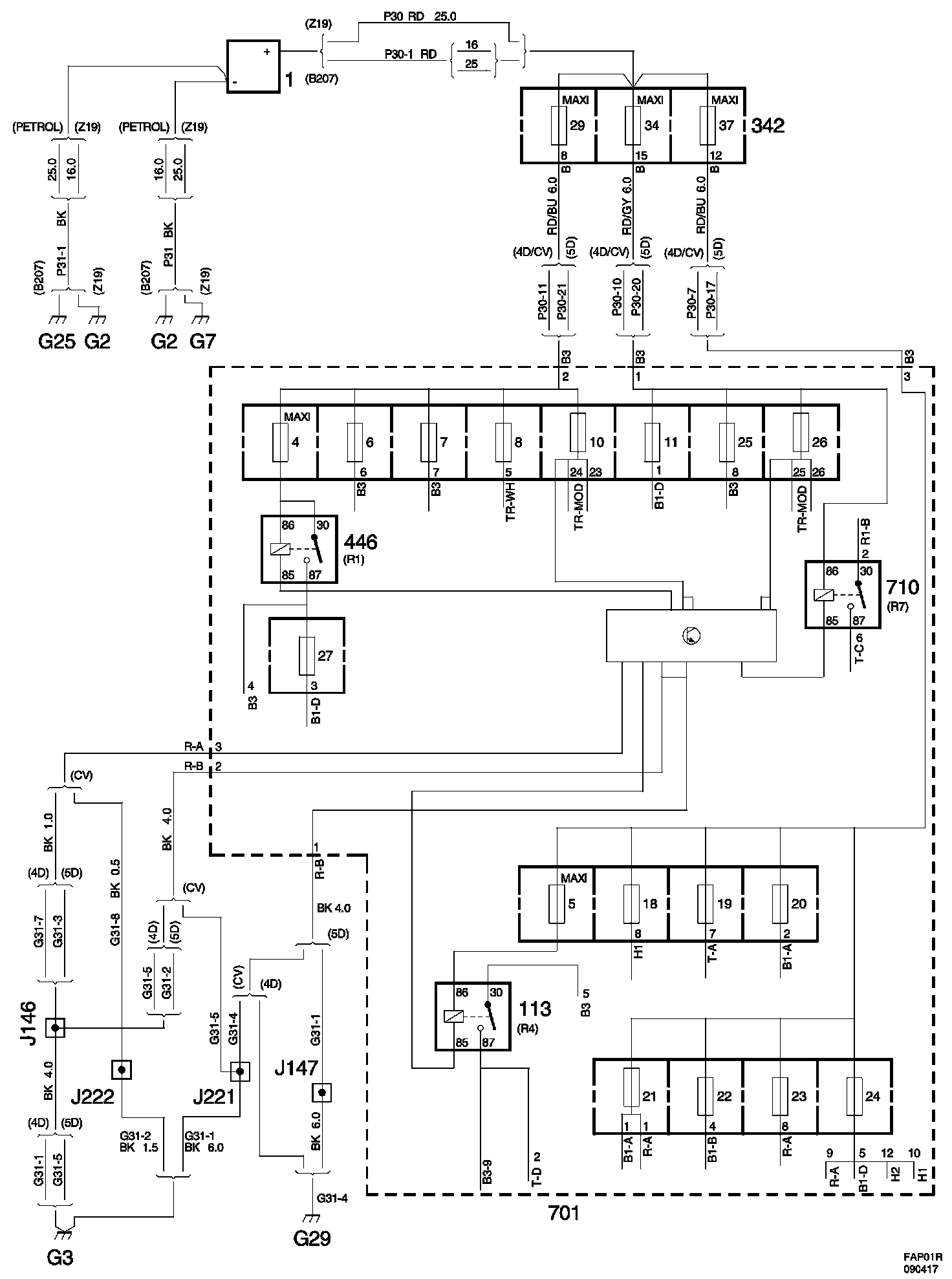

Power Supply +30 Main Fuse Box In the Luggage Compartment
