Charge Air Pressure Sensor (603)



Charge Air Pressure Sensor (603)

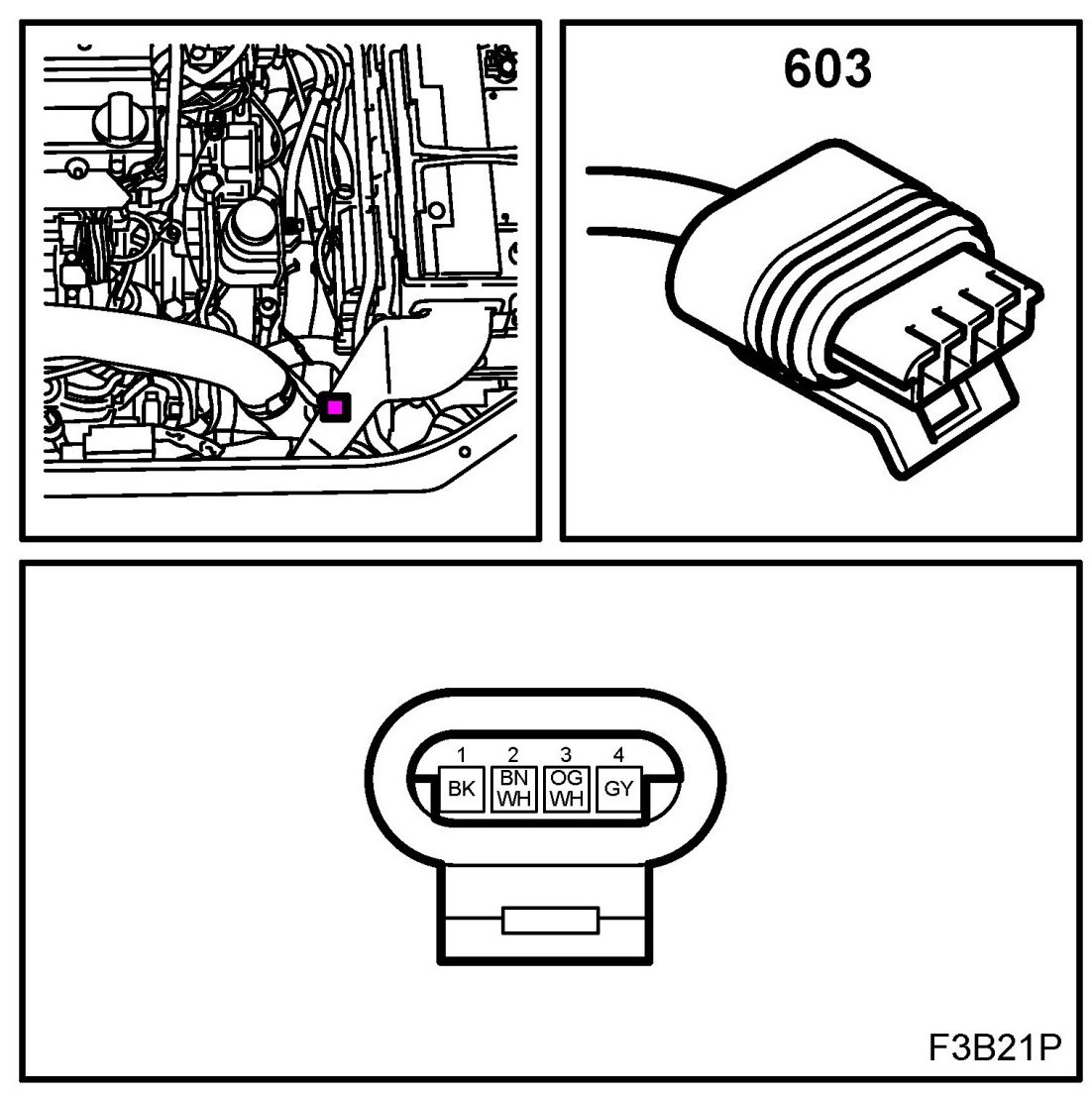

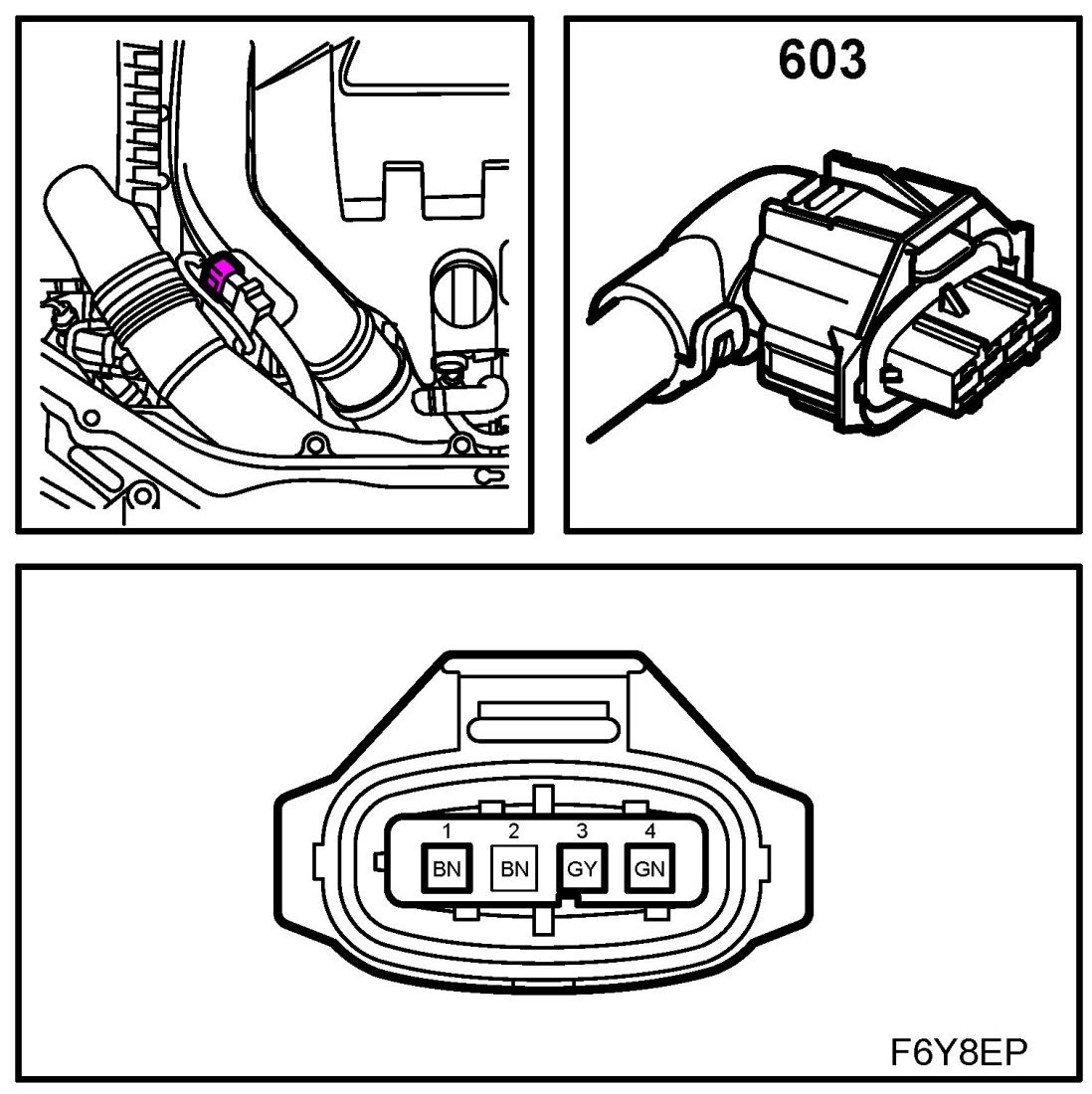

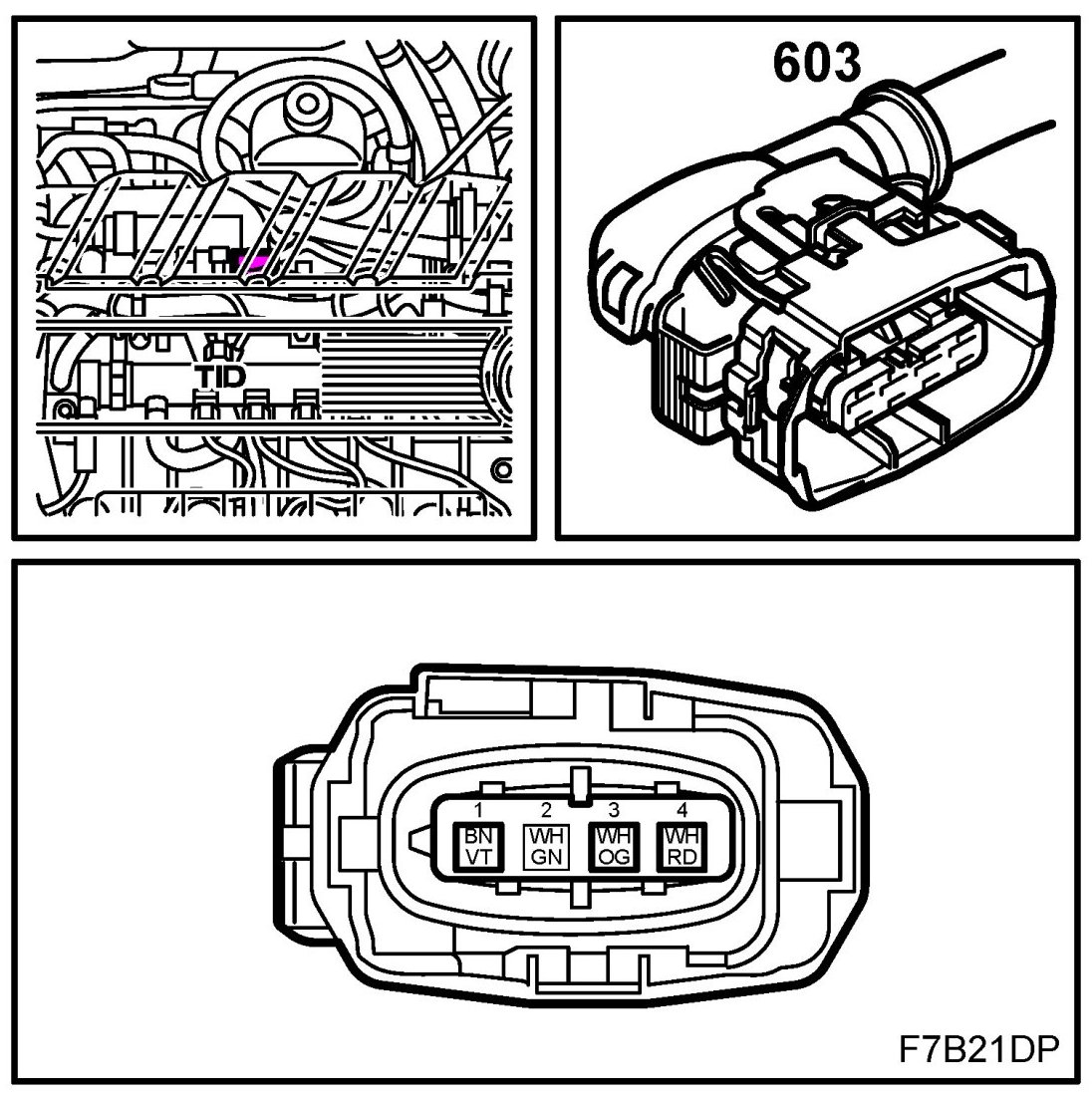

Location: integrated in the intake air sensor 688 on the charge air pipe

B207






B284






Z19DT






Z19DTH/DTR
