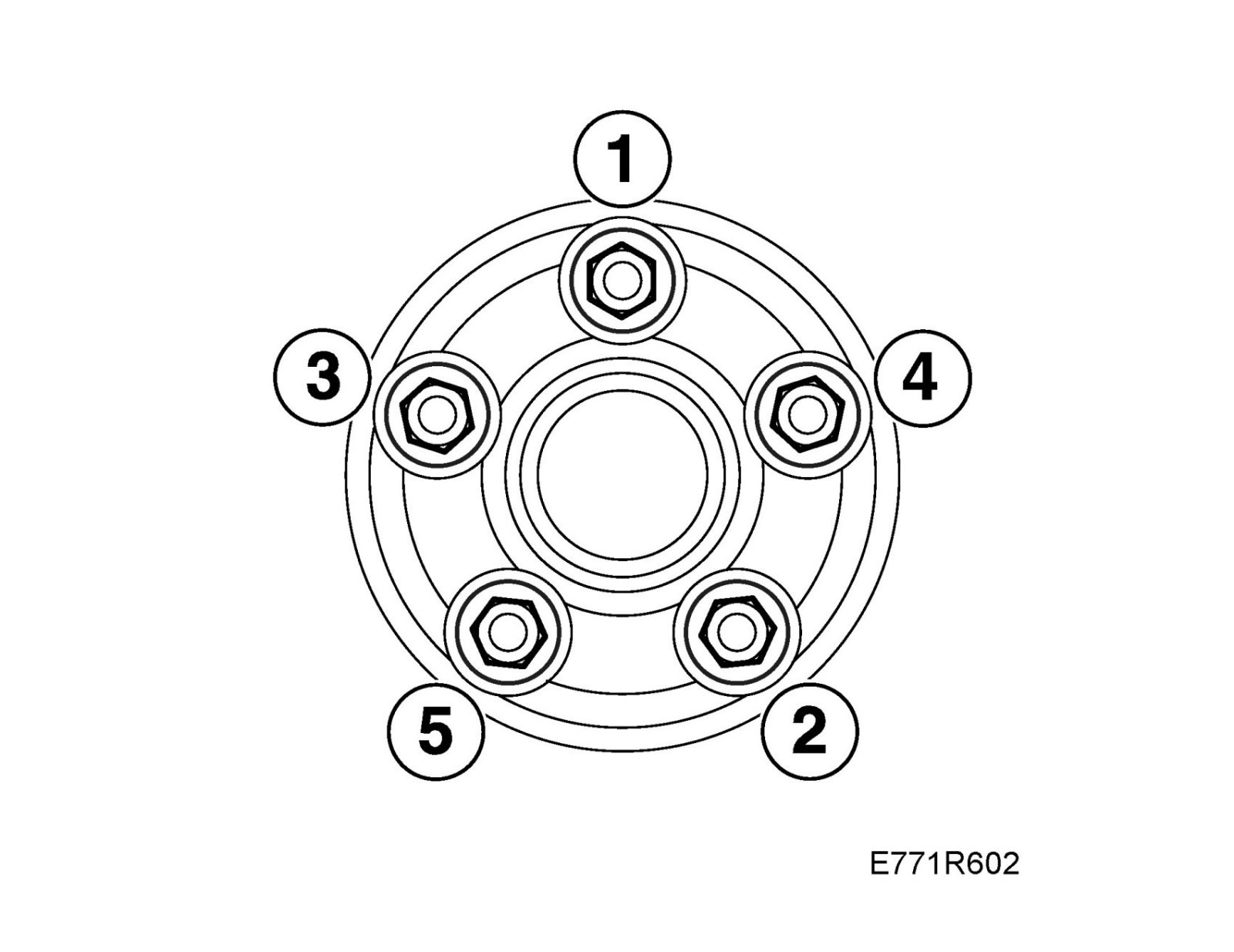

Wheel Stud / Lug Nut

Wheel Bolts





Aluminum wheel
Oil bolt threads
Tightening torque 110 Nm (81 lbf ft)

Pressed steel wheels
First Pass 50 Nm +90° +90° max 110 Nm
Second Pass 37 lbf ft +90° +90° max 81 lbf ft


Note
To avoid tightening the bolts too hard when fitting steel wheels, angle tighten with a torque wrench set to 110 Nm (81 lbf ft). If the torque wrench indicates that 110 Nm (81 lbf ft) has been reached, stop tightening.
