Motor, Backrest Adjustment, Electrically Operated Seat (357D)



Motor, Backrest Adjustment, Electrically Operated Seat (357d)

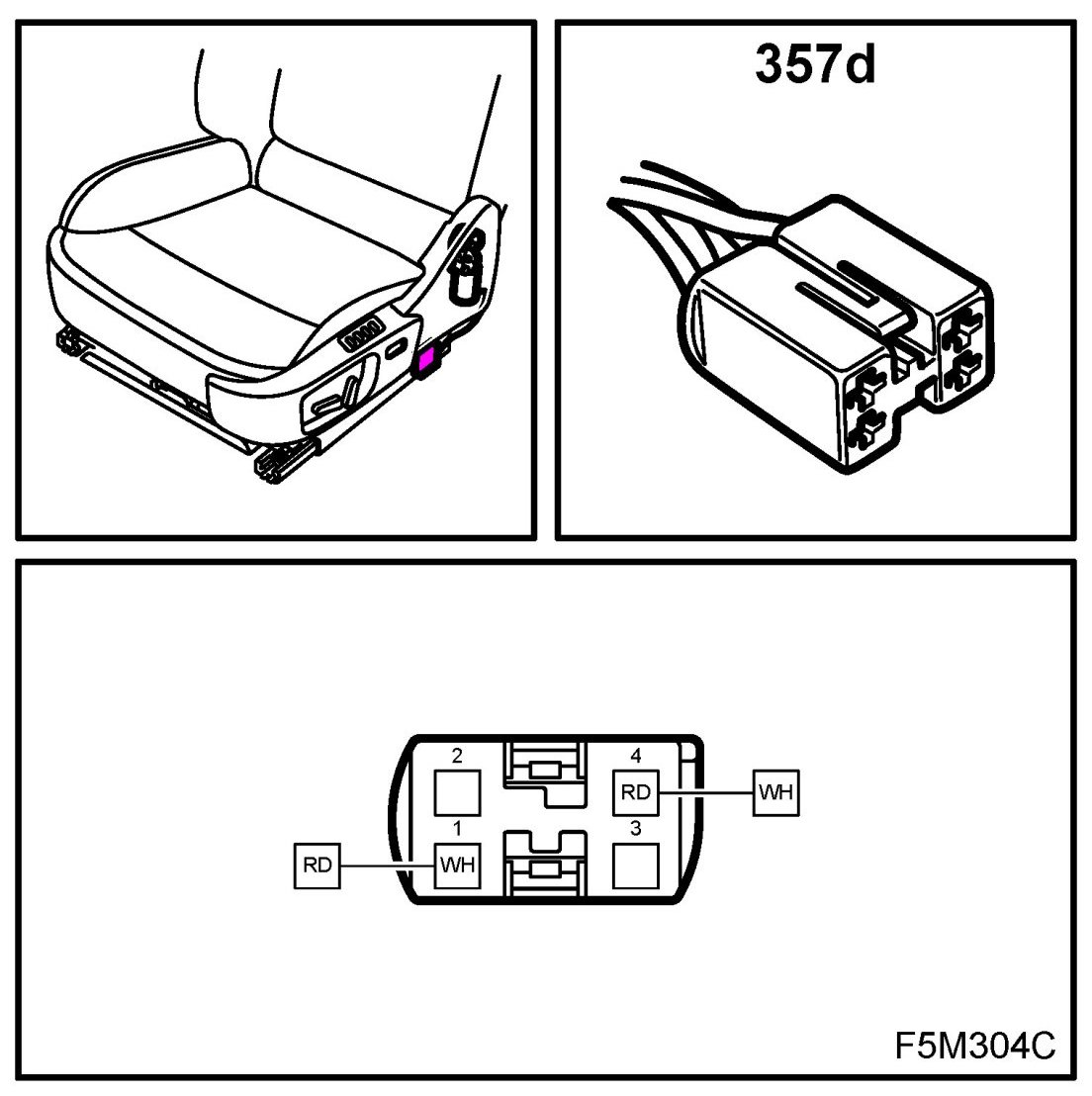

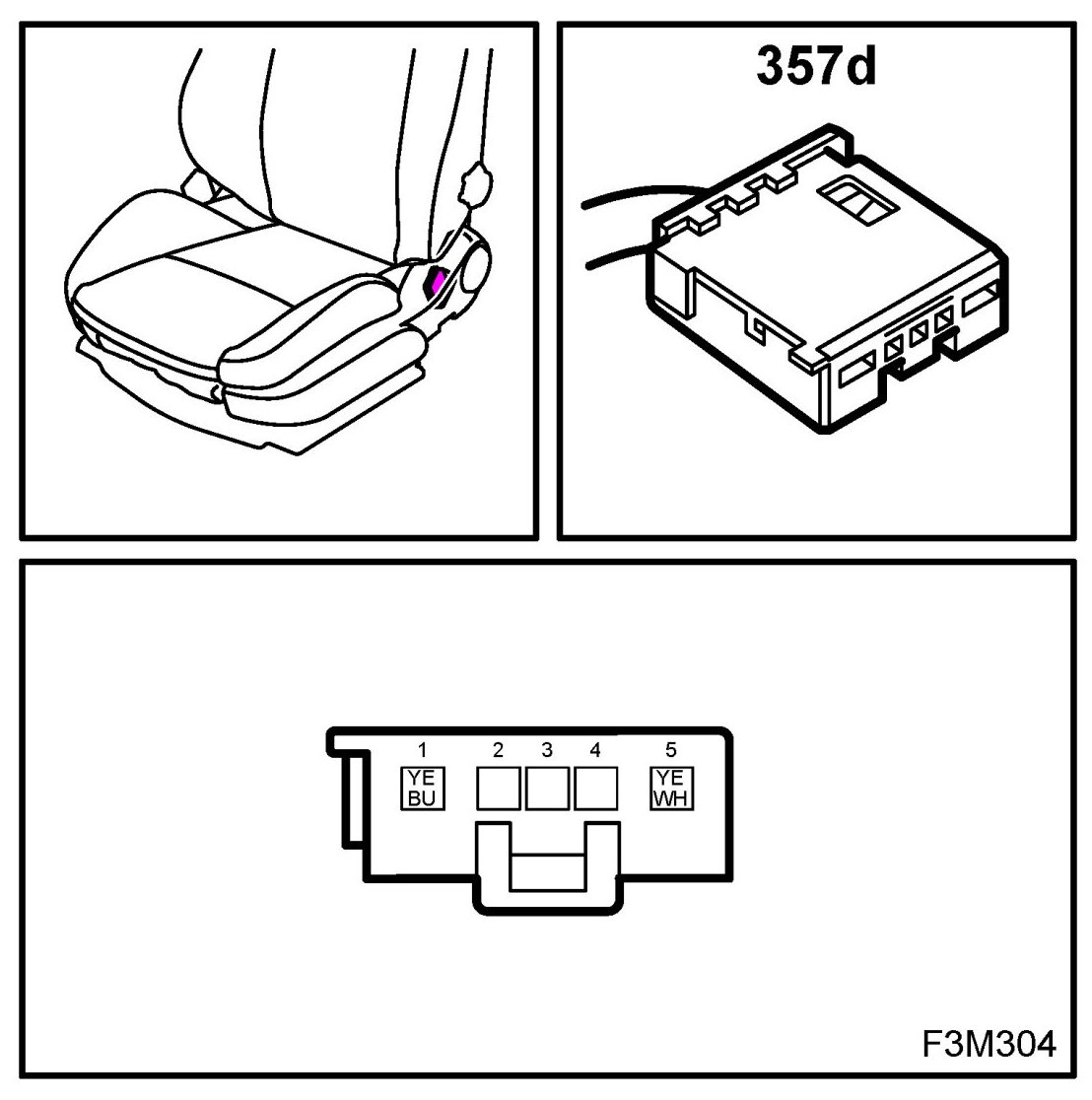

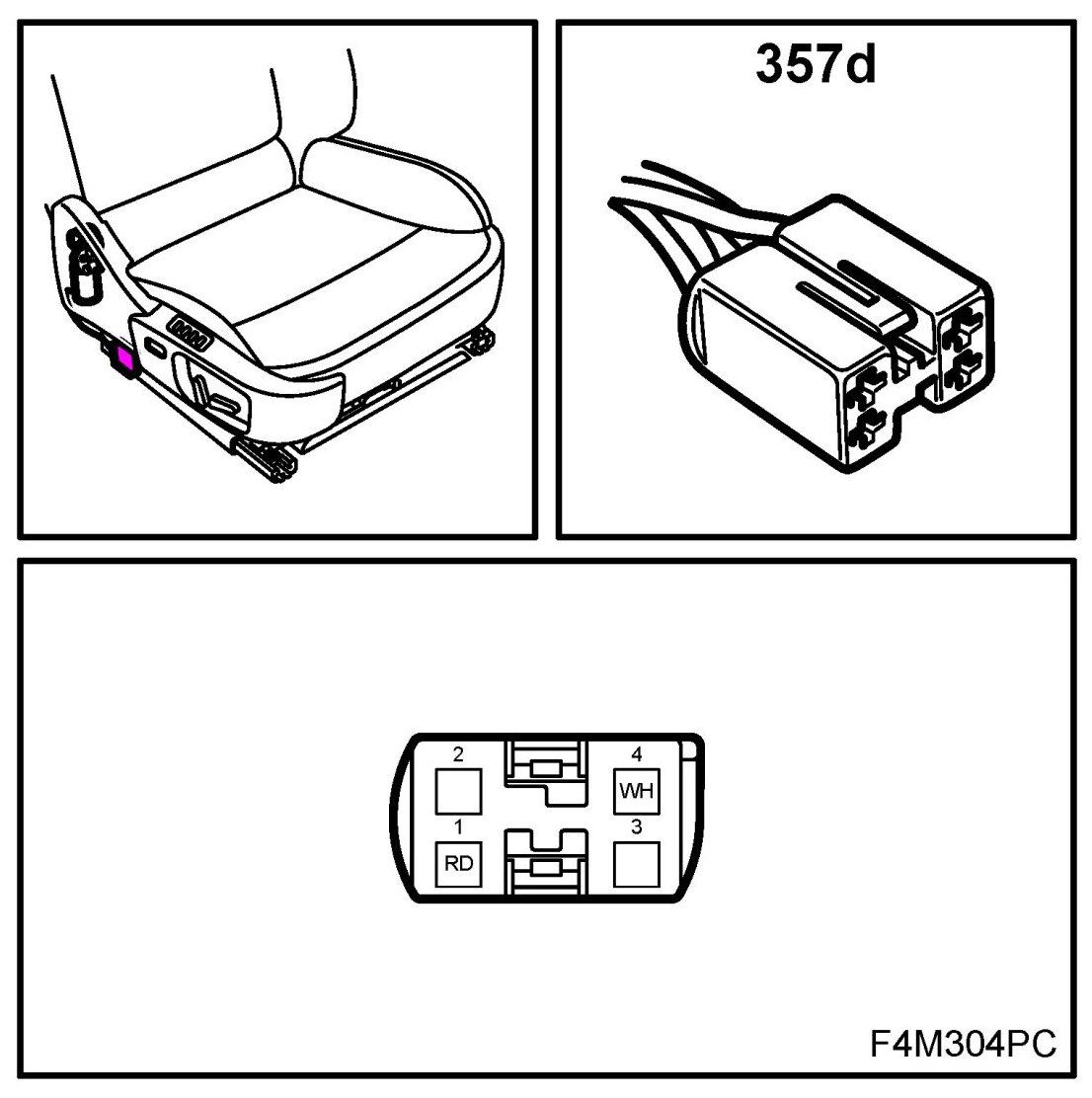

Location: in the seat under the seat cushion

4D LH






4D RH






CV LH






CV RH
