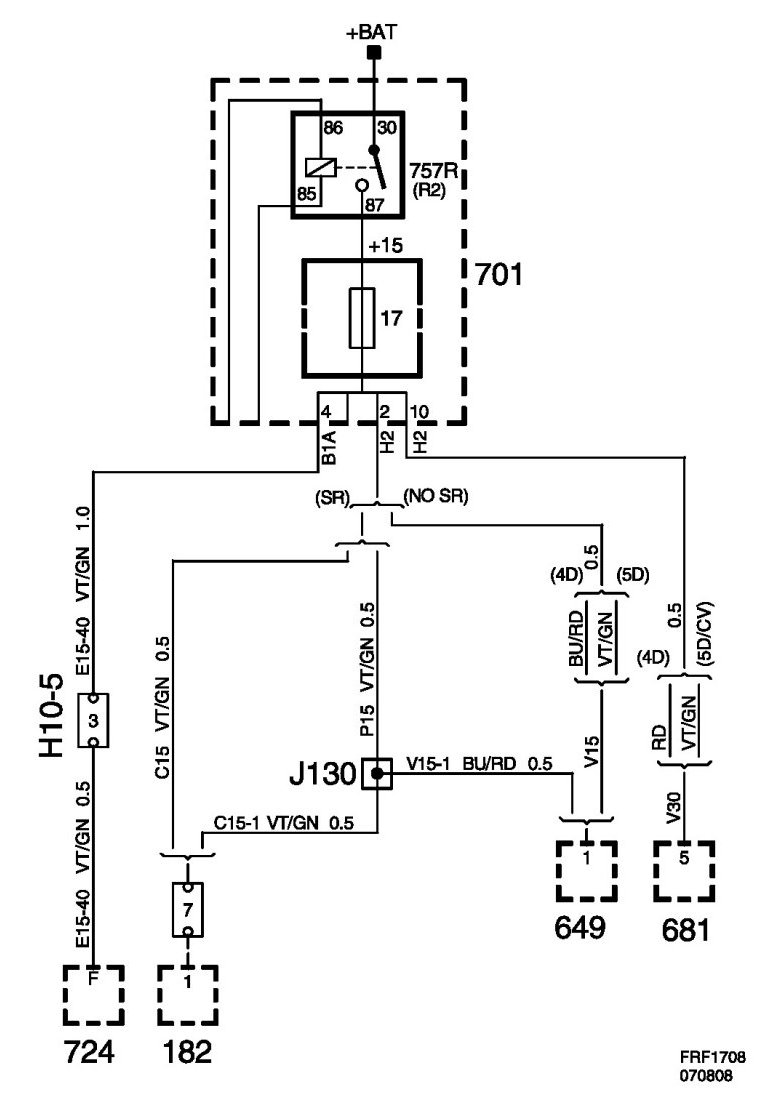

Fuse 17, Rear Electrical Centre 701
Fuse 17, Rear Electrical Centre 701
Fuse 17, Rear Electrical Centre 701

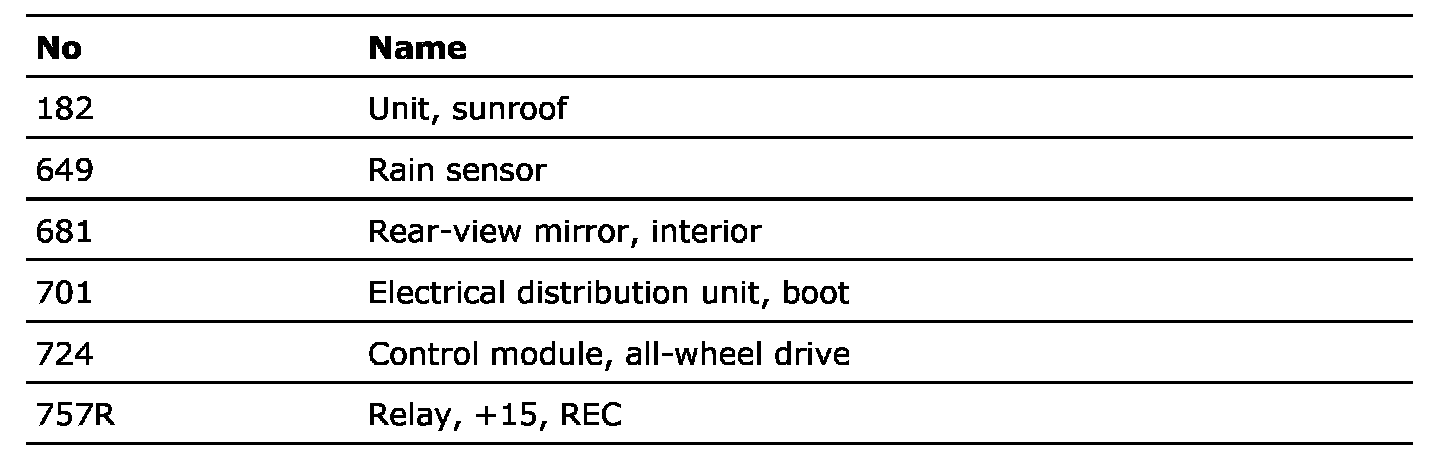

List of components
