Automatic Transmission/Transaxle: Application and ID

Type designations





Gearbox

The 6-speed automatic transmission in the Saab 9-3 MY 05 has the designation AF 40 (Automatic transmission Front wheel drive).

This designation provides information about the transmission as explained below.

First row TF-80SC AF 40 PD:





Second row W-Z04000001PD:

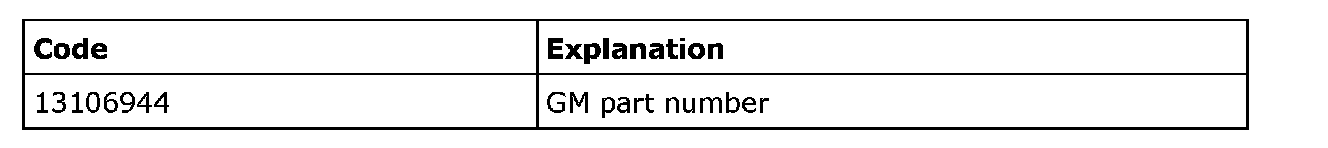

Third row 13106944:

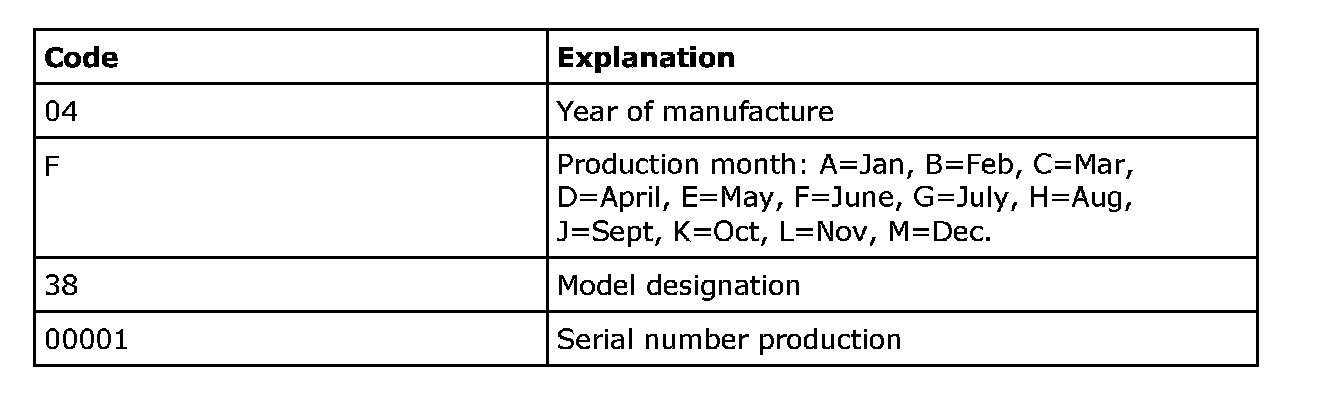

Fourth row 04F38 00001:





Control module

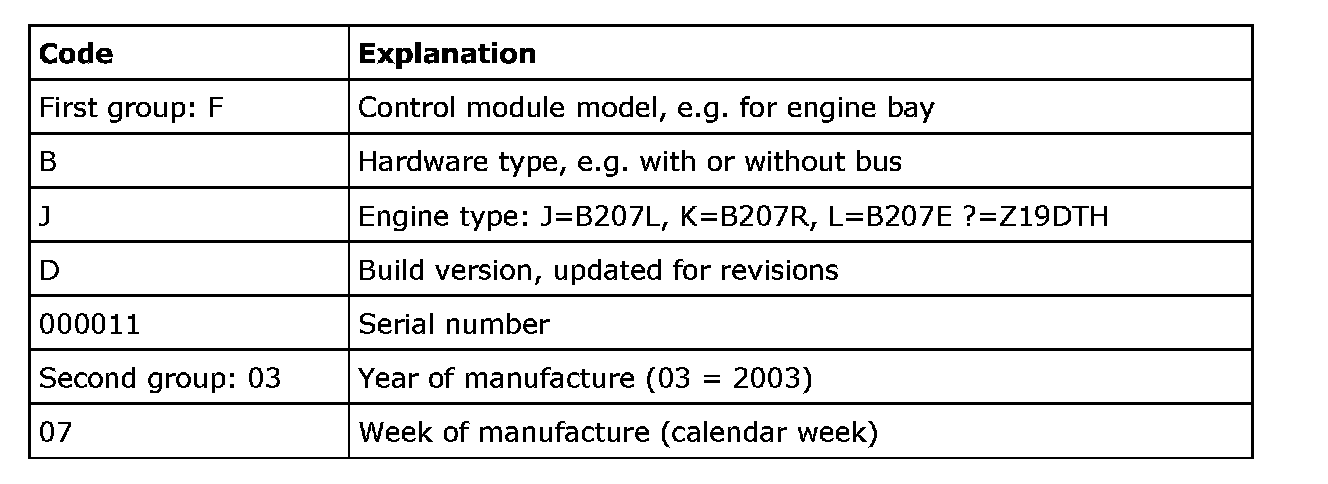

The type designation of the transmission control module comprises two codes with two groups of characters as in the following example: WBJD 000011 and 03 07 respectively.
