Assembling the Transfer Case Ventilation

Assembling the transfer case ventilation

1. Refer to Fastener Caution.

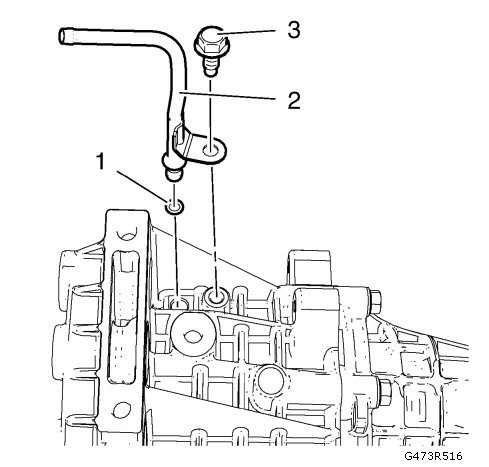

Install transfer case vent pipe (2) with new seal (1) to transfer case, if applicable.





2. Install transfer case vent bolt (3) and tighten to 22 Nm (17 lb ft), if applicable.
