Diagnosis

New diagnostic charts, included in this bulletin, are required when diagnosing a problem with a 2nd designed transaxle.

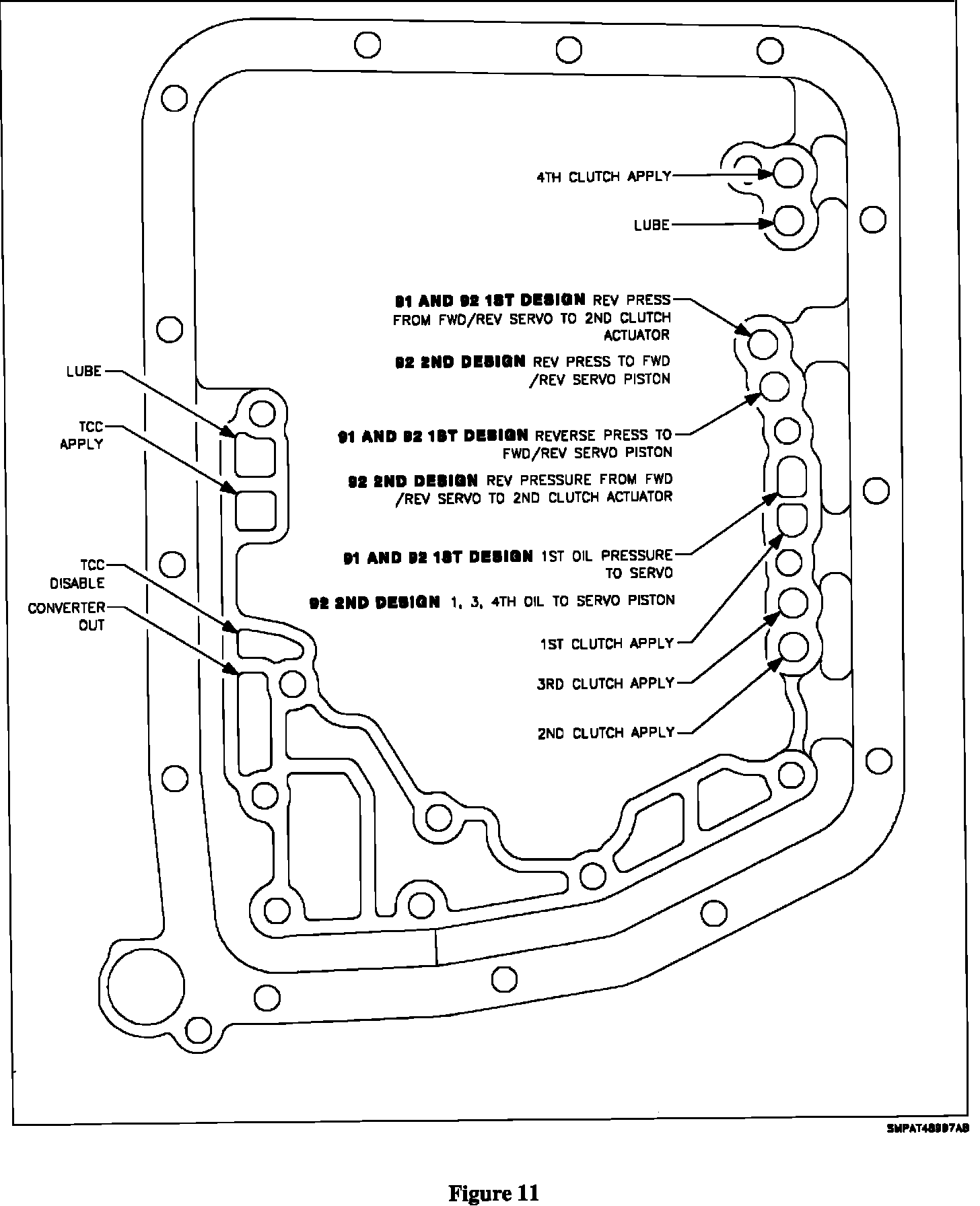

^ Pressure test (Figure 11)

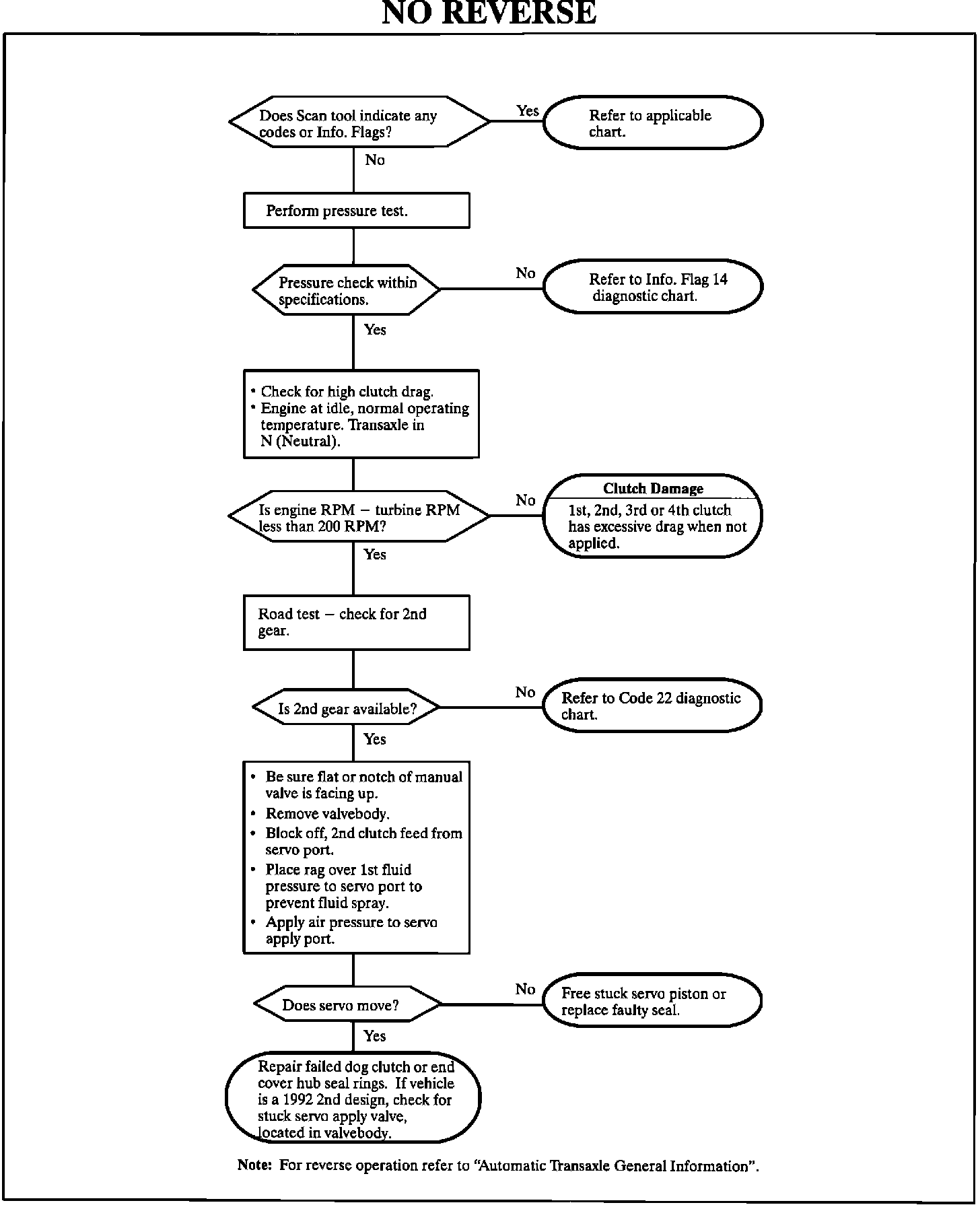

^ No Reverse trouble tree chart





^ No TCC, Code 25 trouble tree chart
