Windshield Washer Nozzle - New Procedures For Aiming
NO.: 92-T-02DATE: January 1992
GROUP: Body
CORP. NO.: 181513
SUBJECT:
New Procedures for Windshield Washer Nozzle Aiming
MODELS AFFECTED:
All 1991 and 1992 Saturns
PURPOSE:
To replace windshield washer nozzle aiming procedures incorrectly printed in the "Wiper/washer/Stationary Glass" section of the "1991-1992 Body/Collision Repair Service Manual."
PROCEDURE:

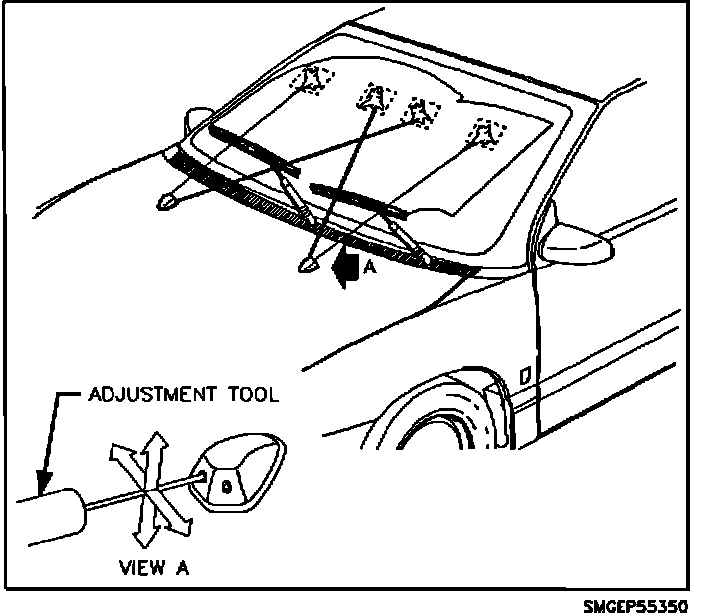

Insert adjustment tool into the spray orifice of the windshield washer nozzle, moving the nozzle to the correct position as shown in the illustration. Note that the inward spray patterns of the nozzles crossover one another at the center of the windshield. The procedure found in the service manual does not show this crossover spray pattern.
