Washer Nozzle Removal and Installation

Removal

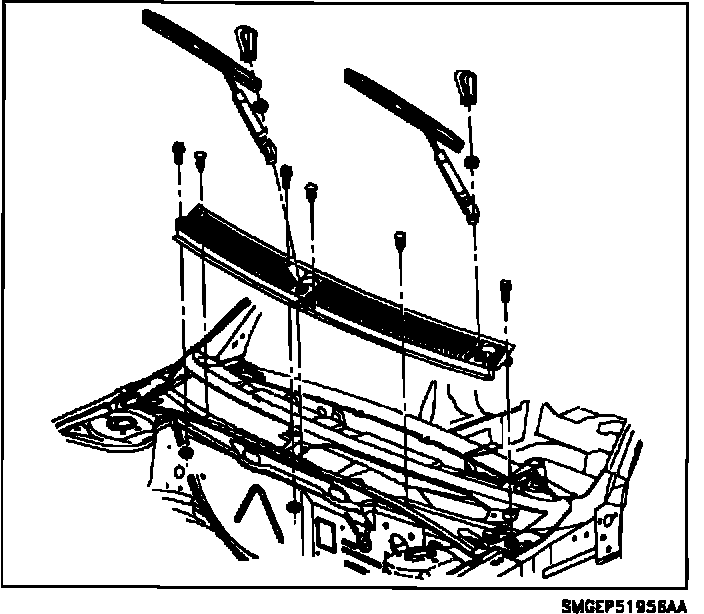

1. Remove shroud top vent grille. Refer to "Shroud Top Vent Grille Removal" procedure in the "Front End" section of the "Body/Collision Repair Service Manual."

2. Disconnect washer fluid hose from vent grille.

3. Disconnect washer fluid hose from washer nozzle.

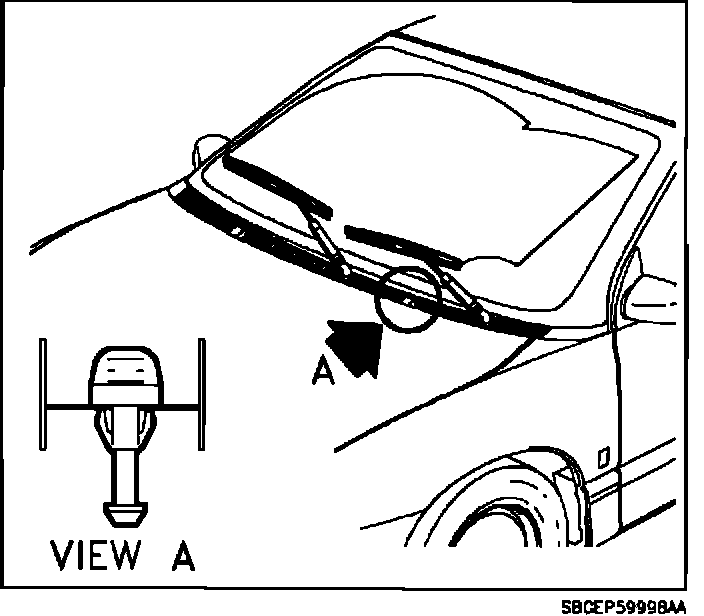

4. Pinch attachment fingers on bottom of nozzle and remove nozzle.

Installation





1. Install nozzle through opening in shroud top vent grille and push into place.

IMPORTANT:
Make sure that nozzle is fully seated in grille and attachment fingers are in place.

2. Attach washer fluid hose to nozzles (P/N 21049096).

3. Attach washer fluid hose to vent grille.

4. Install shroud top vent grille. Refer to "Shroud Top Vent Grille Installation" procedure in the "Front End" section of the "Body/Collision Repair Service Manual."
