DTC 83

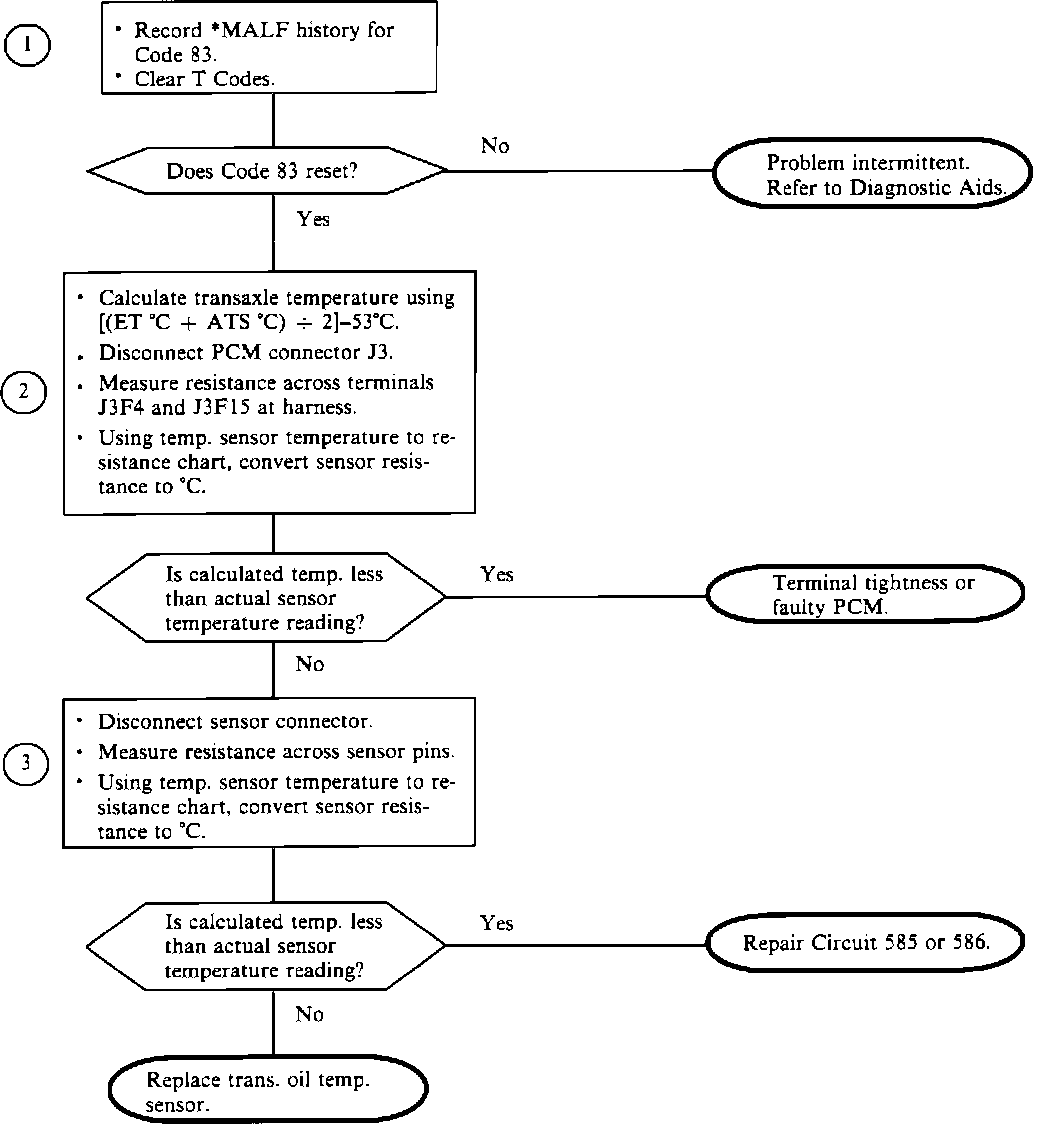

Diagnostic Chart:

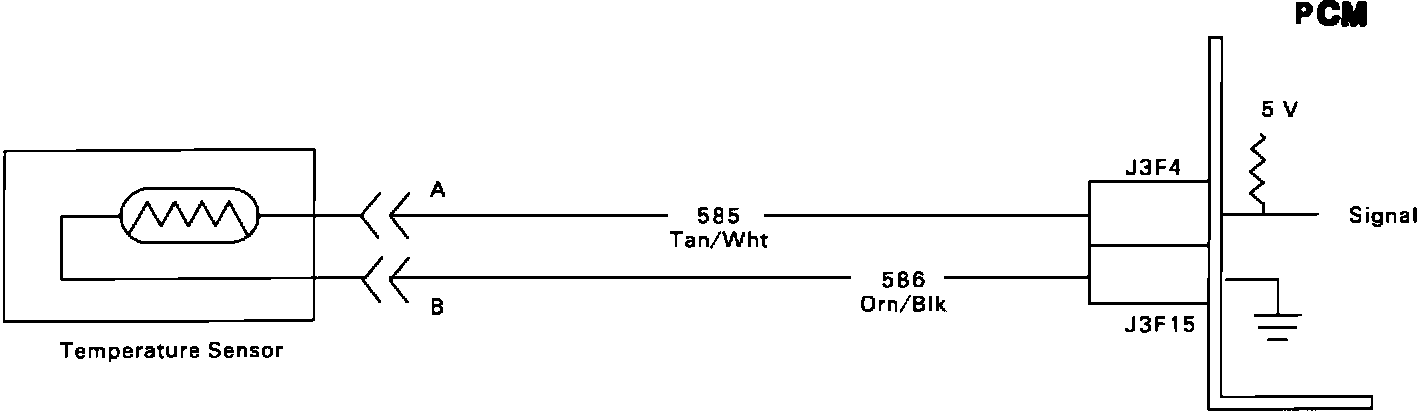

Wiring Diagram:

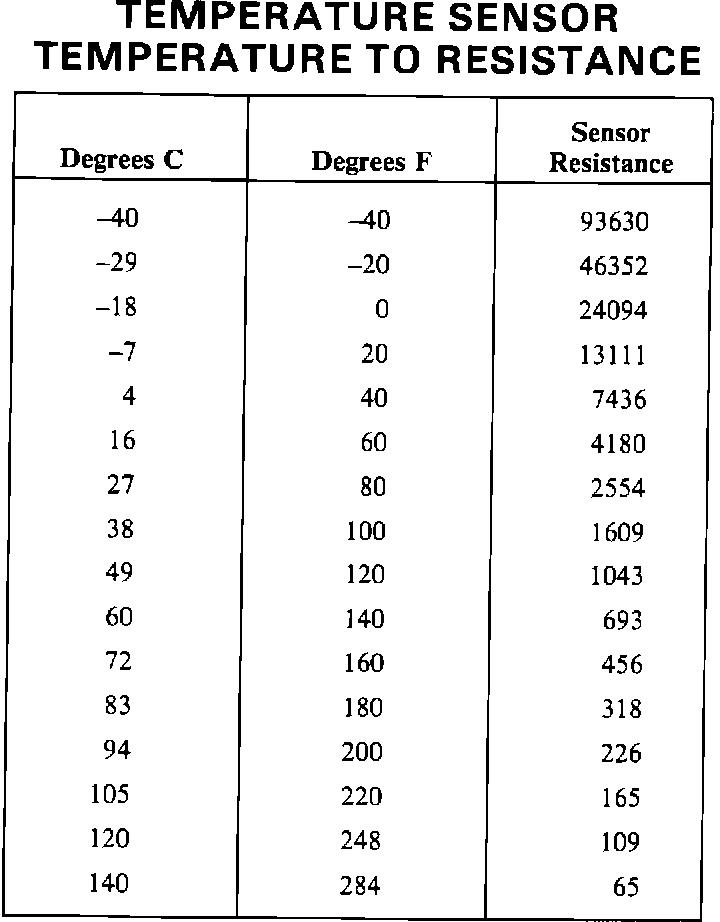

Resistance Chart:

INFORMATION FLAG PARAMETERS

Info. Flag 83 is set when the PCM has detected the following conditions for more than 21 minutes.

- No ground/open in the temperature circuit.

- No short in the temperature circuit.


- Stable temperature signal, no Info. flag 82.

- Temperature value (TV) is less than a calculated temperature based on engine temperature (ET) and manifold air temperature (MAT).


TV < [(ET + MAT)] / 2 - 53°C.



TEST DESCRIPTION

Numbered steps below refer to numbered steps on chart.


1. This step verifies the problem is still present.

2. This step verifies proper PCM operation.

3. This step indicates faulty temp. sensor or faulty wires/connections.



DIAGNOSTIC AIDS

When attempting to diagnose an intermittent problem use the Scan tool* to review supplemental diagnostic information. The supplemental data can be used to duplicate a problem.

* Select MALF History from Scan tool TCM menu.


Check the tightness of the female terminal grip with a spare male terminal.

Since this info flag does not set with a ground/open or short the problem is probably added resistance in the wiring.
