Wire Splicing

With the wiring used in the Saturn vehicles, it is recommended that approved Delphi Packard Electric Crimp and Seal Splice Sleeves (or equivalent) be used.

1. Remove insulation from both ends, recommended strip length is 9.5 mm (3/8 in.). Caution must be used to prevent cutting the wire strands. Locate new splice a minimum of 40 mm (1-1/2 in.) from an outlet or other splice.

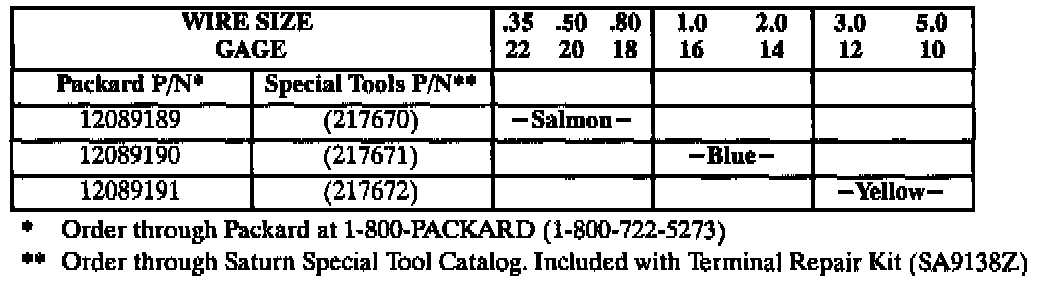

2. Determine proper sleeve for gauge of wire. Position stripped ends in sleeve until wires hit stop.

IMPORTANT:
When using the salmon splice sleeve with .35 (22 gage) wire, remove 19 mm (3/4 in.) of insulation. Bend the stripped portion in half to double the thickness of the wire going into the splice sleeve. Twist the stripped, doubled wire and insert into the splice sleeve.

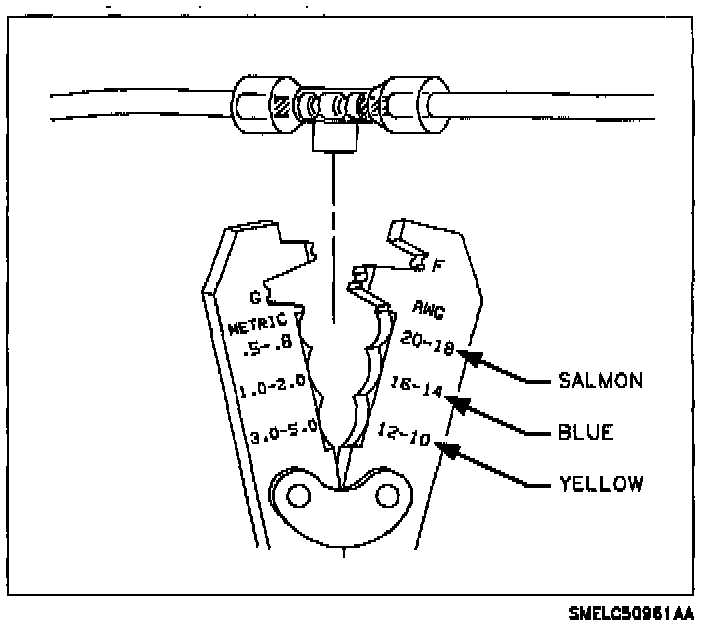

3. Hand crimp sleeve using the approved crimping tool. Gently tug on wires to make sure they are secure before applying heat to them.

CAUTION:
DO NOT USE A MATCH OR OPEN FLAME TO APPLY HEAT TO SPLICE SLEEVE.

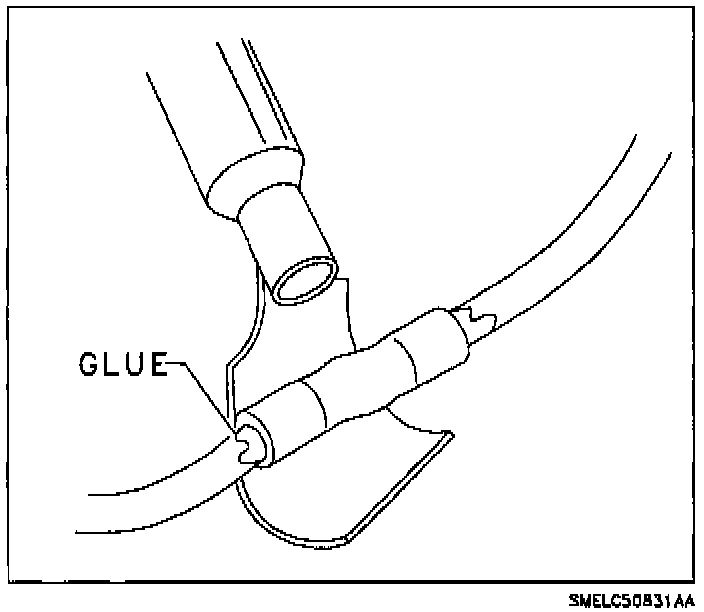

4. Apply heat using Ultratorch (R) (or equivalent), heating splice sleeve to 175°C (347°F). Heat until glue flows around edges of splice sleeve.

5. Check for continuity in the wire.
