DTC 58

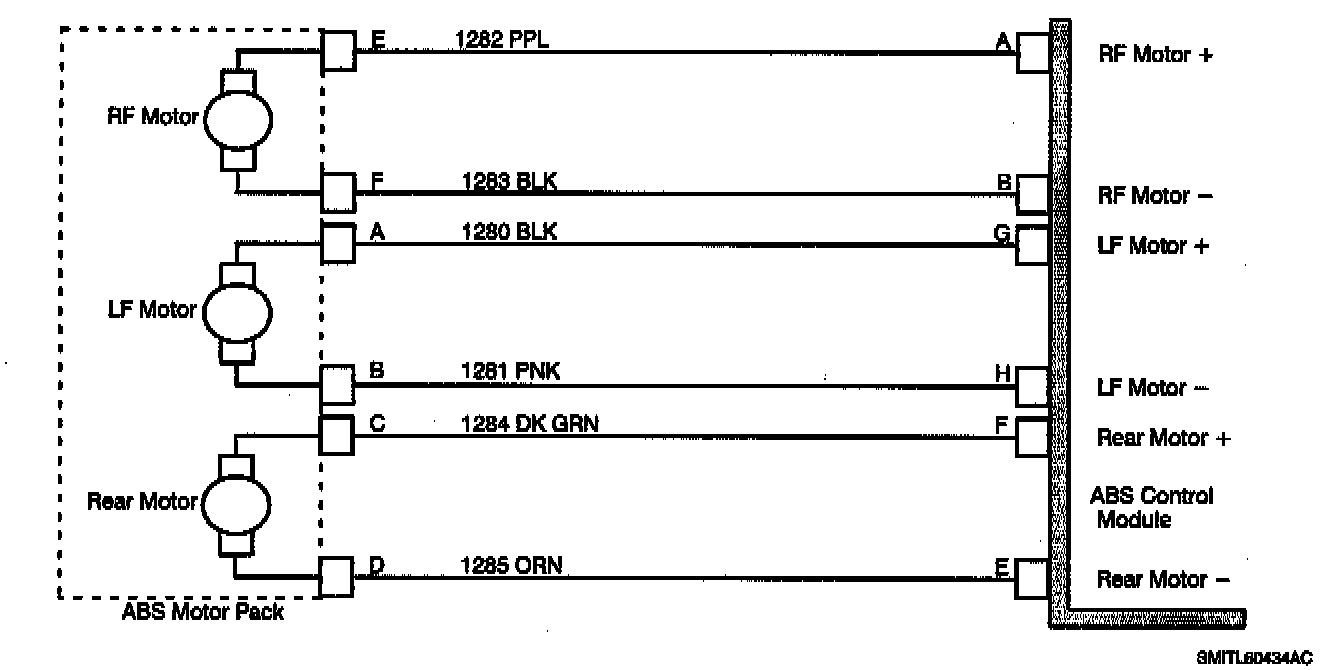

ABS Schematic: Code 58:

LEFT FRONT MOTOR CIRCUIT SHORTED TO B+
If a motor circuit is shorted to battery, ABS will be disabled and the antilock telltale will be turned On.

CODE PARAMETERS
Code 58 sets if:
^ LF motor circuit is shorted to B+.
^ This code can set at all times except when a previous failure has disabled ABS operation.

Diagnostic Chart: Code 58:

DIAGNOSTIC AIDS
When Attempting To Diagnose - an intermittent problem, use the scan tool to review supplemental diagnostic information. The supplemental data can be used to duplicate a problem.

Check the tightness of the female terminal grip with a spare male terminal.
