DTC 63

ABS Schematic: Code 63:

RIGHT FRONT MOTOR CIRCUIT SHORTED TO B+
If a motor circuit is shorted to battery, ABS will be disabled and the antilock telltale will be turned On.

CODE PARAMETERS
Code 63 sets if:
^ Right front motor circuit is shorted to B+.
^ This code can set at all times except when a previous failure has disabled ABS operation.

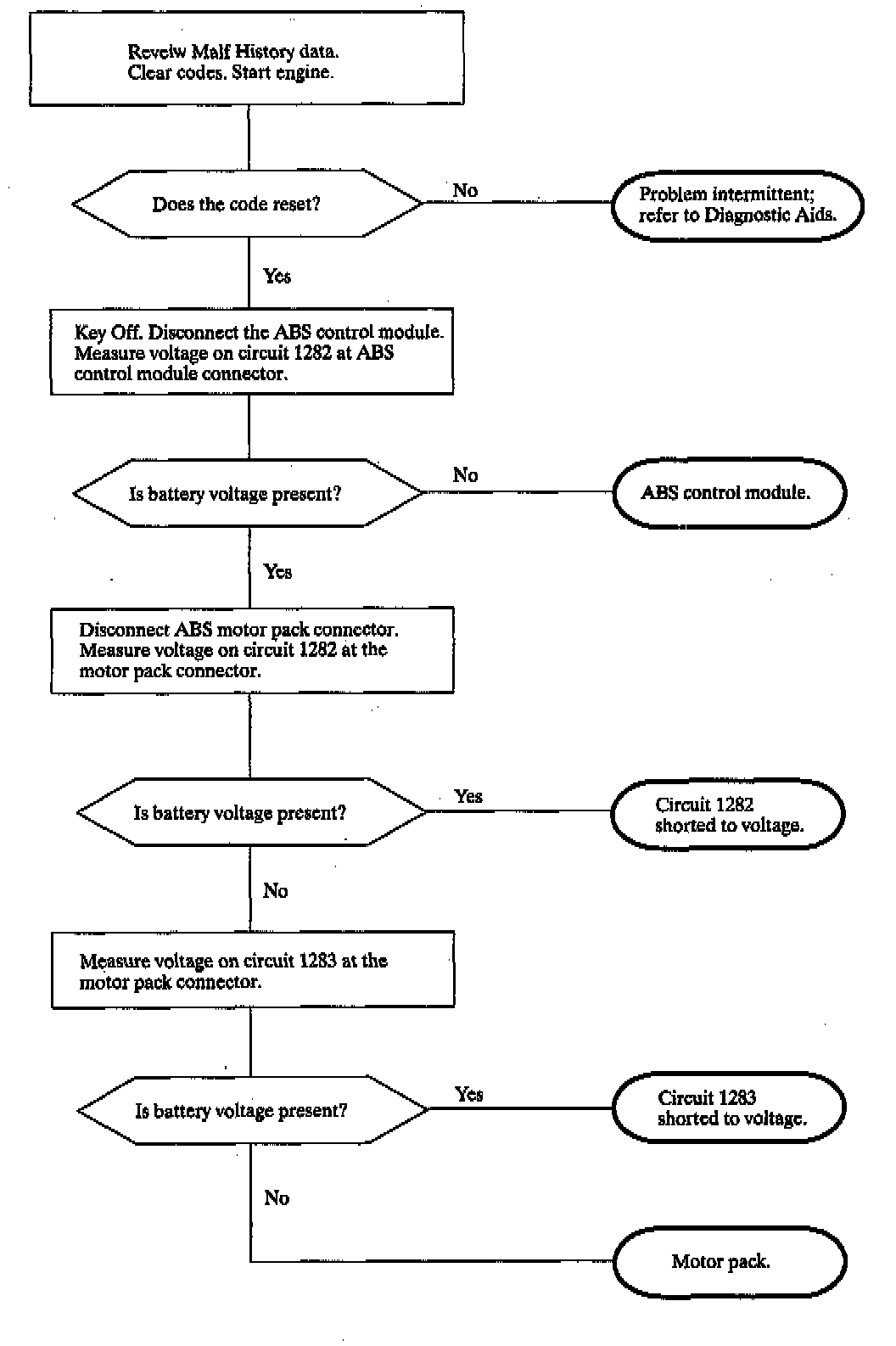

Diagnostic Chart: Code 63:

DIAGNOSTIC AIDS
When Attempting To Diagnose - an intermittent problem, use the Scan tool to review supplemental diagnostic information. The supplemental data can be used to duplicate a problem.

Check the tightness of the female terminal grip with a spare male terminal.
