DTC 65

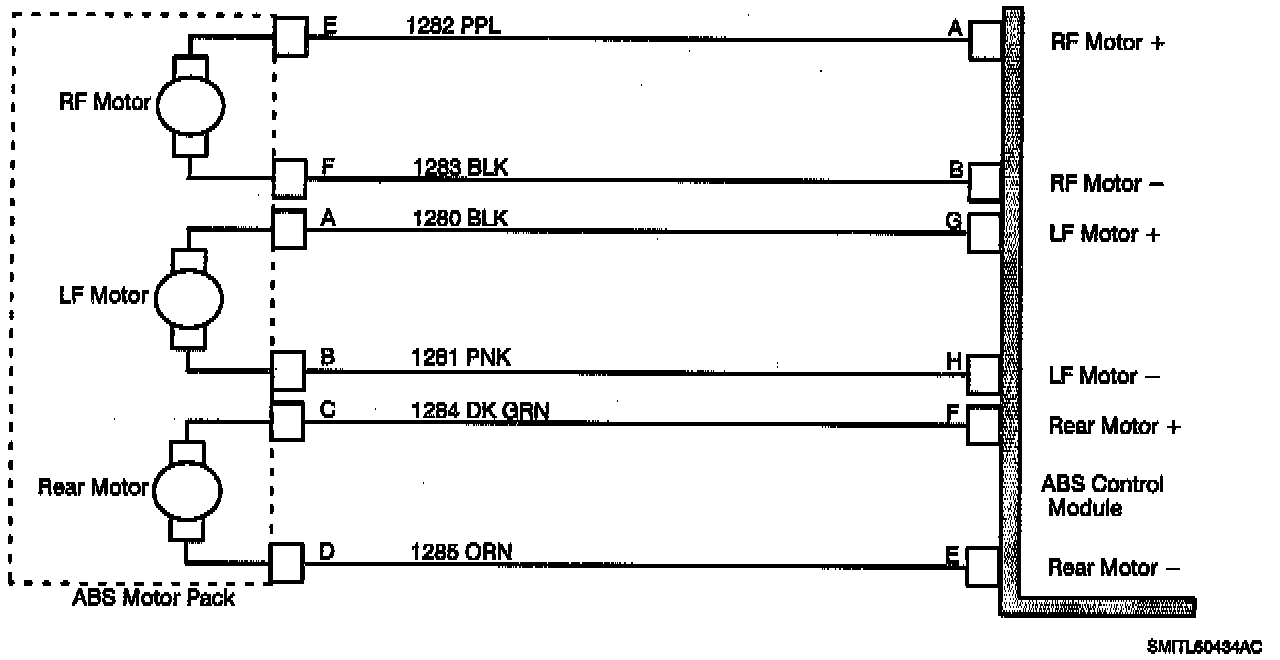

ABS Schematic: Code 65:

REAR MOTOR CIRCUIT GROUNDED
If a motor circuit is grounded, ABS will be disabled and the antilock telltale will be turned On.

CODE PARAMETERS
Code 65 sets if:
^ Rear motor circuit is grounded.
^ Code 86 could also set and the brake telltale will light if the rear ABS motor is not in home position.
^ This code can set at all times except when a previous failure has disabled ABS operation.

Diagnostic Chart: Code 65:

DIAGNOSTIC AIDS
When Attempting To Diagnose - an intermittent problem, use the Scan tool to review supplemental diagnostic information. The supplemental data can be used to duplicate a problem.

Check the tightness of the female terminal grip with a spare male terminal.

Motor resistance is less than 2 ohms. Motor runs in both direction.
