DTC 93

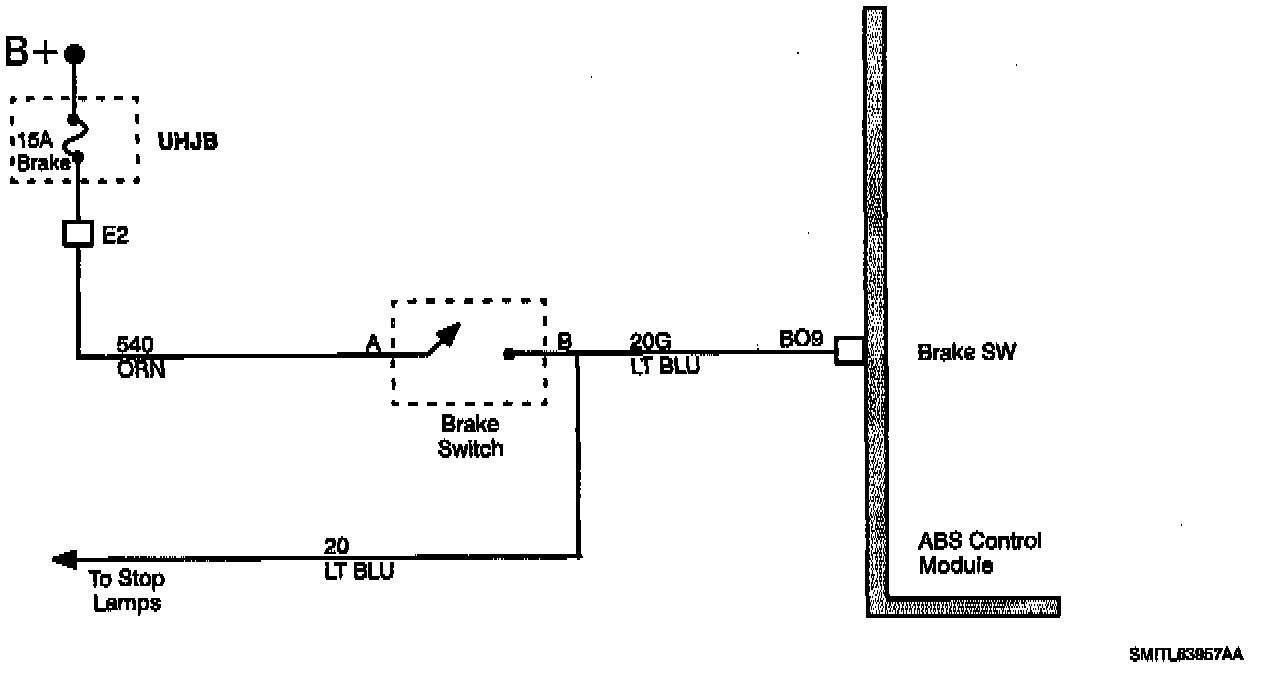

ABS Schematic: Code 93:

BRAKE SWITCH CIRCUIT OPEN DURING INITIALIZATION
When the wheel speed sensors indicate to the ABS control module that the vehicle is under braking, the ABS control module should receive voltage from the brake switch. If no voltage is received, ABS is disabled and the antilock telltale will be turned On. Check for ABS code 95. If present, proceed to the code 95 diagnostic description. DTC 95

CODE PARAMETERS
Code 93 sets if:
^ Brake switch circuit is open during initialization.
^ This code can only set if codes 91 or 92 failed on previous seven ignition cycles and no brake transition has been seen since.

Diagnostic Chart: Code 93:

DIAGNOSTIC AIDS
When Attempting To Diagnose - an intermittent problem, use the scan tool to review supplemental diagnostic information. The supplemental data can be used to duplicate a problem.

Intermittents Or Opens - suspected to be at the connectors can be detected by using a diagnostic service probe. Voltage can be read on wires without disconnecting any connectors.

Check the tightness of the female terminal grip with a spare male terminal.

The ABS system will initialize when the vehicle is driven over 13 km/h (8 mph) after start-up.

Brake switch is normally open. Depressing brake pedal completes the circuit (closes switch).

Check brake switch adjustment. Refer to Lighting and Horns.
