Blower Motor Resistor: Service and Repair

Blower Motor Resistor And Connector "A":

REMOVAL
1. Disable the Supplemental Inflatable Restraint (SIR) system. Refer to Disabling the SIR System in Service Precautions.

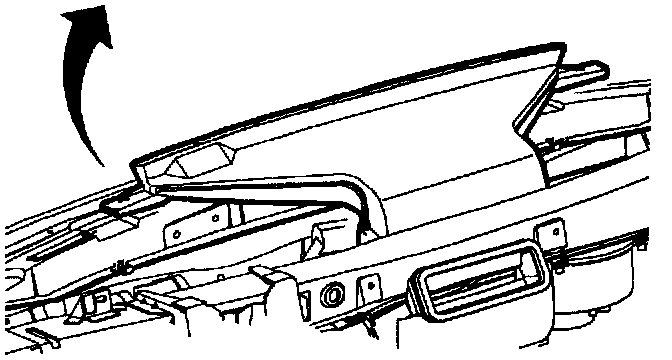

2. Remove screws and unsnap windshield defroster duct from mode valve assembly. Lift up on defroster duct and move it to the right. This will allow access to resistor assembly.

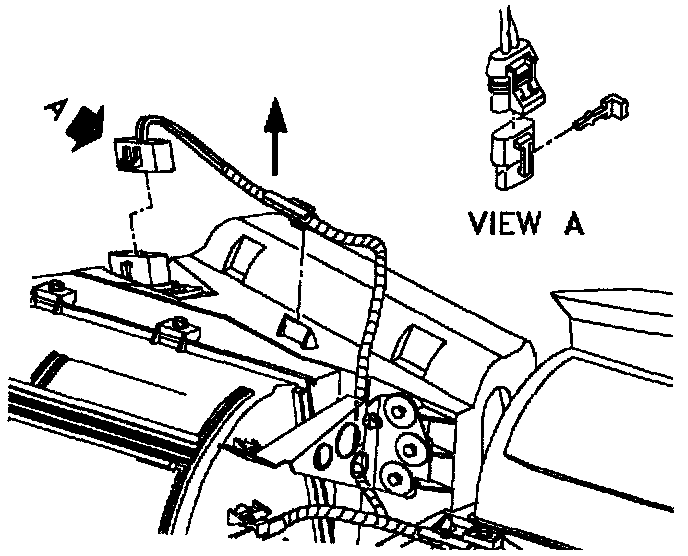

3. Disconnect blower motor resistor connector.

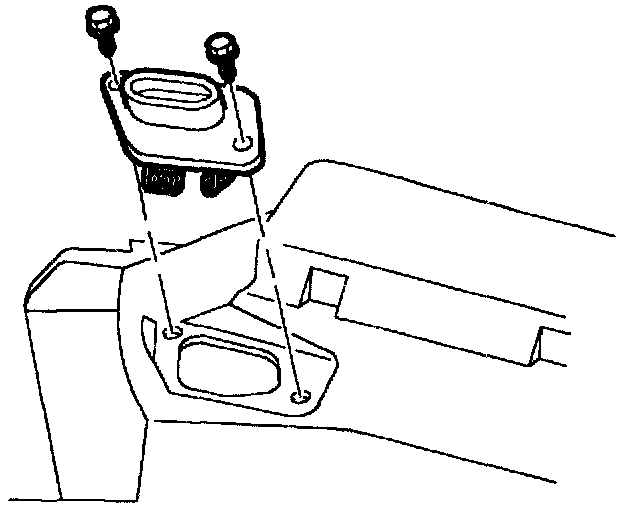

4. Remove screws and blower motor resistor.

INSTALLATION
1. Install blower motor resistor and screws.

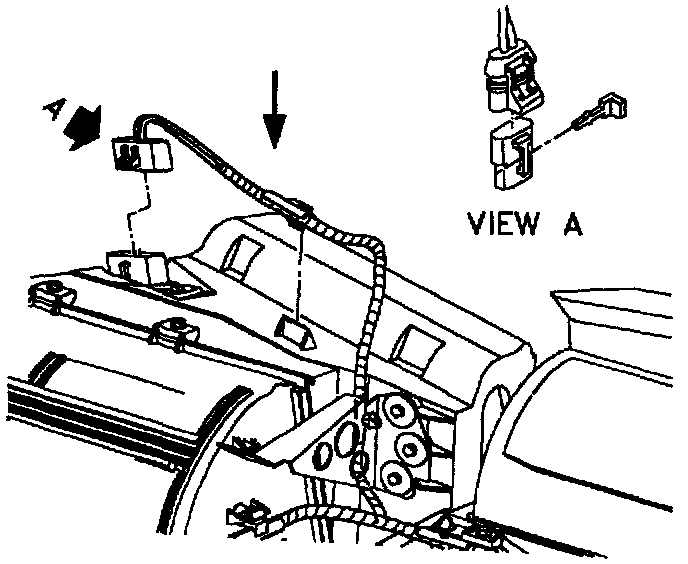

2. Connect blower motor resistor connector.

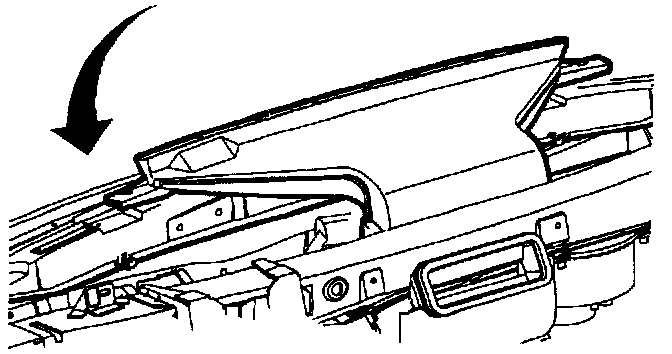

3. Move defroster duct to the left. Install windshield defroster duct onto the mode valve assembly and install screws.
4. Enable SIR system. Refer to Enabling the SIR System in Service Precautions.
