Removal

Instrument Panel Cluster Assembly:

1. Disable the SIR System.

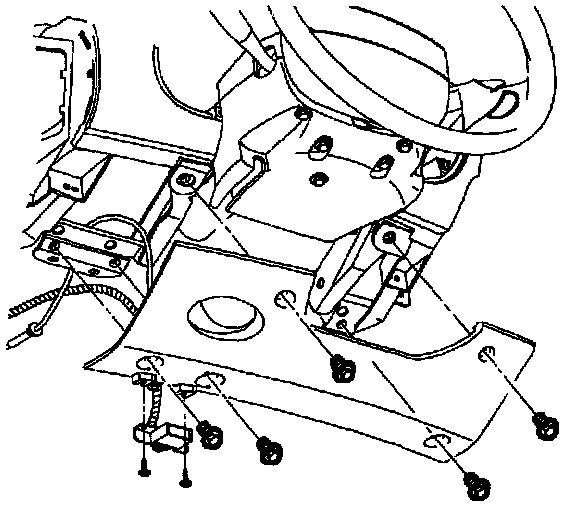

2. Remove screws from DLC connector and steering filler panel.

Instrument Panel Cluster Assembly:

3. Remove hood release cable from lever.
4. Remove steering column filler panel.

Instrument Panel Cluster Assembly:

5. Disconnect ignition switch electrical connector at right steering column bolt.

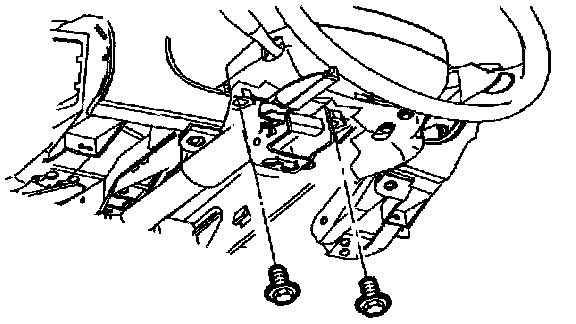

6. Remove steering column bolts and lower column on front seat.

Instrument Panel Cluster Assembly:

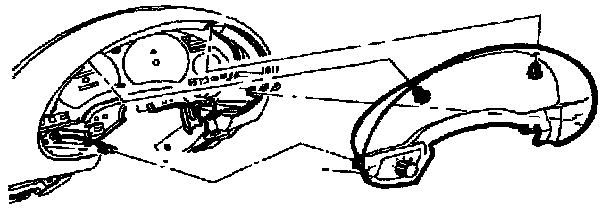

7. Remove fasteners and pull instrument cluster trim bezel rearward at clip locations.
8. Disconnect electrical connector from instrument panel dimmer switch.

Instrument Panel Cluster Assembly:

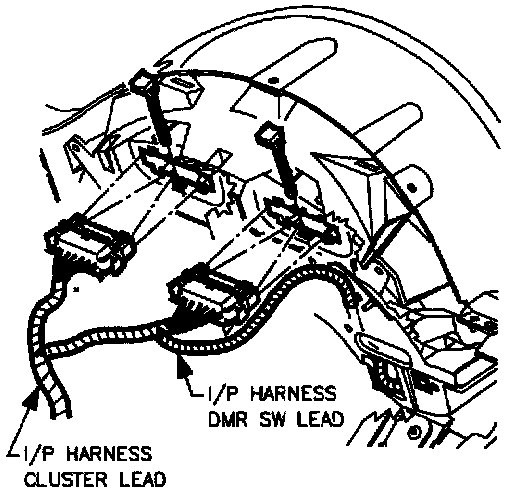

9. Remove connector position assurance (CPA) devices and disconnect electrical connectors from instrument panel cluster assembly by squeezing tabs on each side of connector.

Instrument Panel Cluster Assembly:

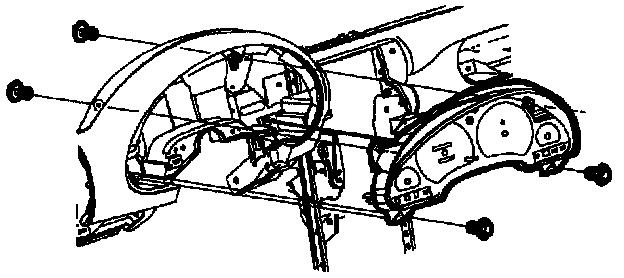

10. Remove front and rear instrument panel cluster assembly screws.
11. Remove instrument panel cluster assembly.
