Removal

1. Remove end cover. (Refer to "End Cover" removal procedures.)
2. Install the input shaft holding tool SA9119T.

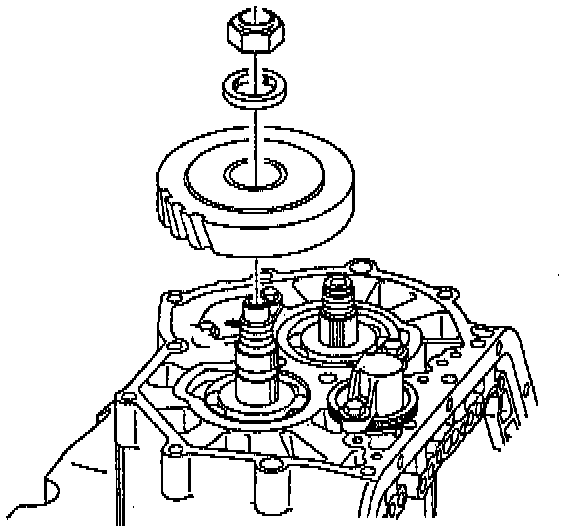

3. Remove the input shaft nut.
4. Remove holding tool, and remove the output shaft nut.

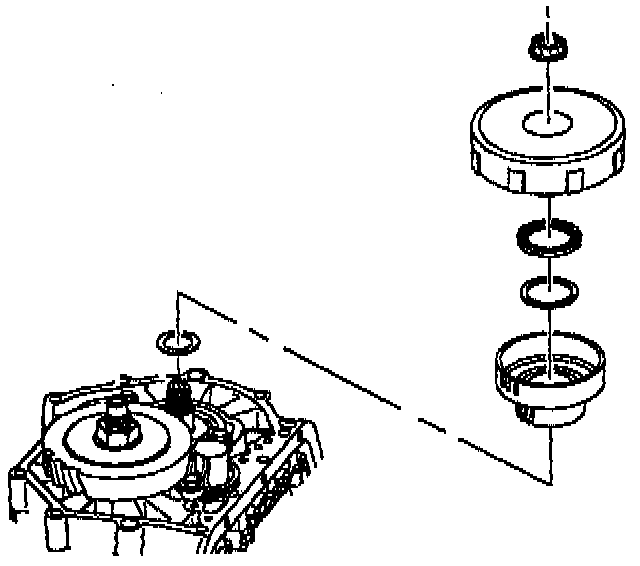

5. Remove 1st clutch housing and 1st drive gear from the input shaft.

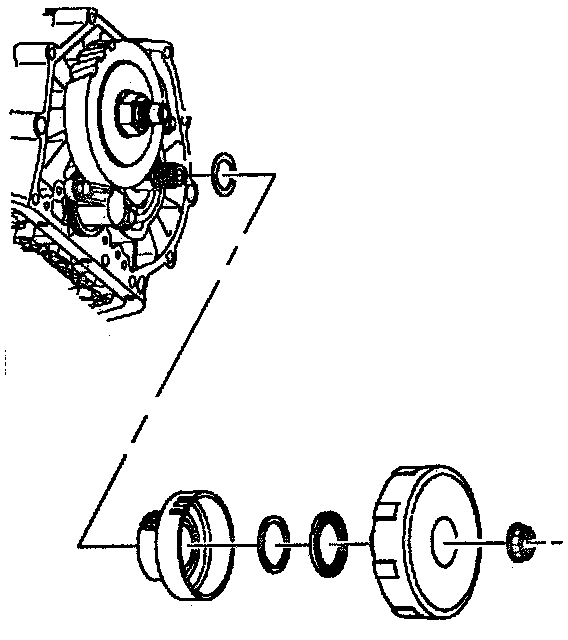

6. Remove 1st driven gear, spray clutch, and thrust washer from the output shaft.
