Home >> Saturn >> 1998 >> SW2 L4-1.9L DOHC VIN 7 >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Diagrams >> Electrical Diagrams >> Instrument Panel Cluster >> Instrument Panel Cluster Telltales

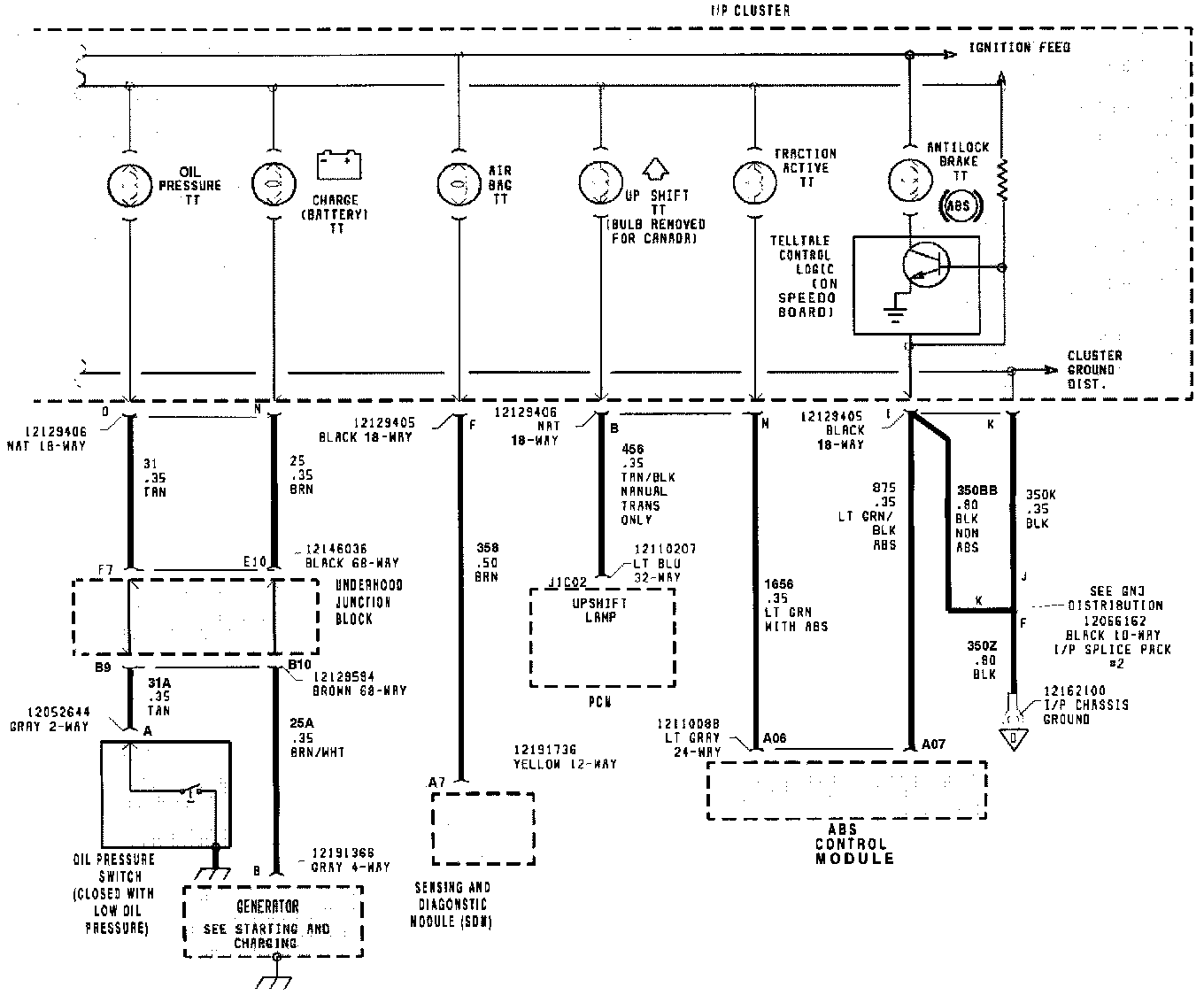

Instrument Panel Cluster Telltales

Instrument Panel Cluster Telltales:



Instrument Panel Cluster Telltales:
