Interior Lights Dimming Schematics

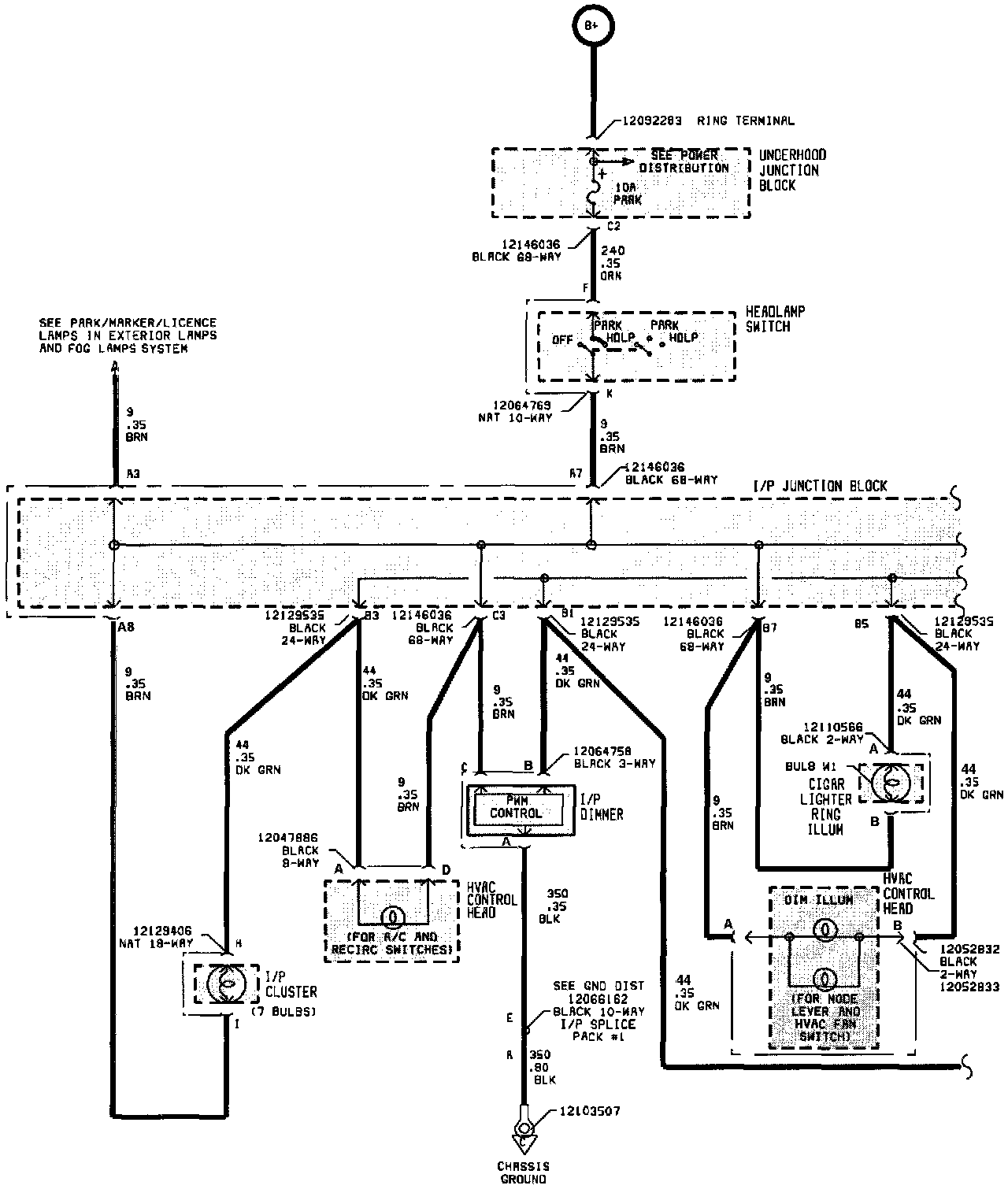

Interior Lamps - Dimming: Dim Illumination Lamps (Part 1 Of 2):



Interior Lamps - Dimming: Dim Illumination Lamps (Part 2 Of 2):
