Enabling the SIR System

1. Turn ignition switch to LOCK position and remove key.

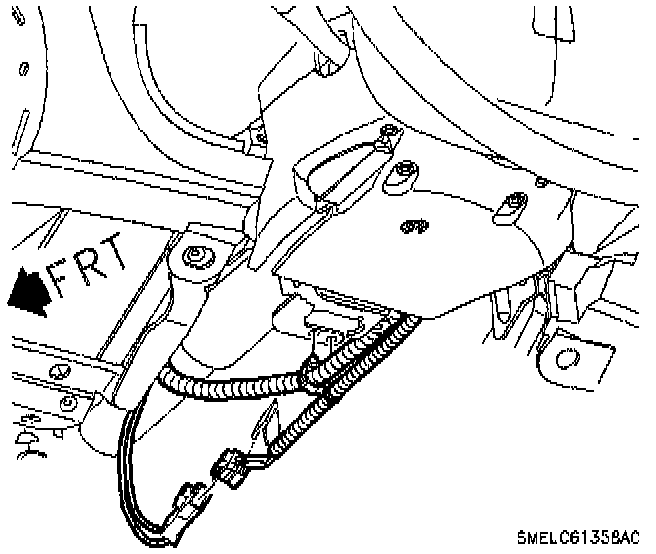

Yellow Two-way SIR Connector - Driver Side Under Steering Console:

2. Connect yellow two-way SIR connector at the base of steering column and install Connector Position Assurance (CPA) device to connector.

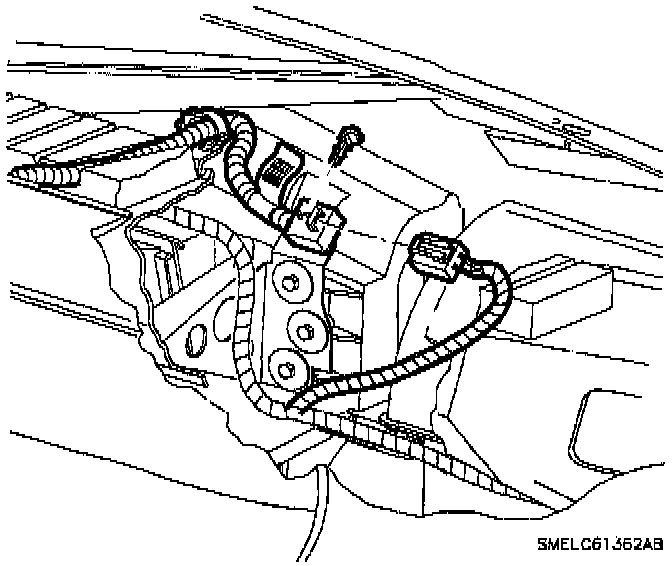

Yellow Two-way SIR Connector - Passenger Side:

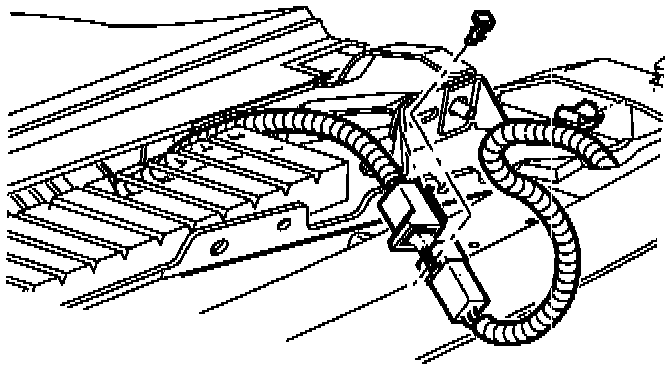

3. Connect yellow two-way passenger inflator module pigtail and install Connector Position Assurance (CPA) device to connector.

Right Hand Drive Description:

For RHD Domestic vehicles only.

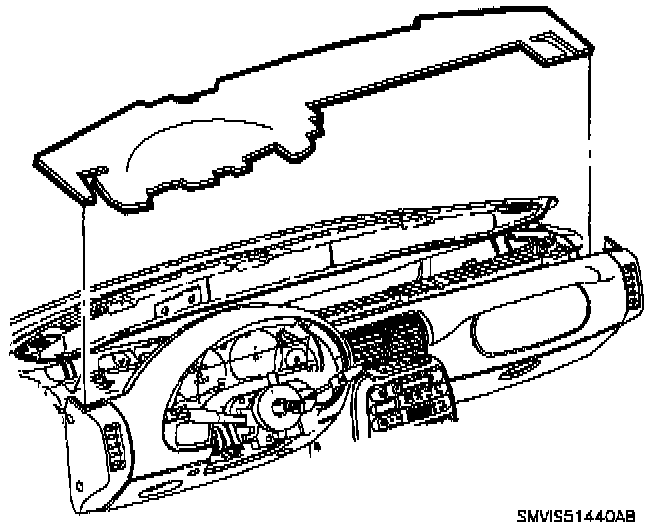

4. Install upper trim panel insulator.

Upper Dash Trim Panel:

IMPORTANT: Make sure to tuck in all flaps.

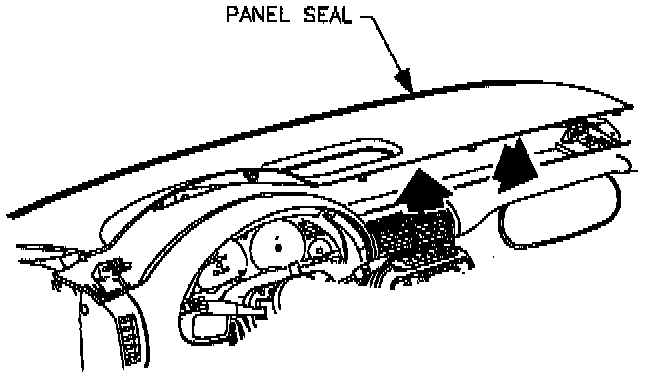

IMPORTANT: Be sure upper trim panel seal is correctly seated on forward edge before installing tipper trim panel.

IMPORTANT: Be careful not to damage VIN plate when replacing upper trim panel.






5. Lower panel, making sure upper trim panel alignment tabs interlock with windshield garnish slots.
6. Push down at clip locations to secure.
7. Press down firmly at forward corners to fully engage retainers.

Upper Dash Trim Panel:

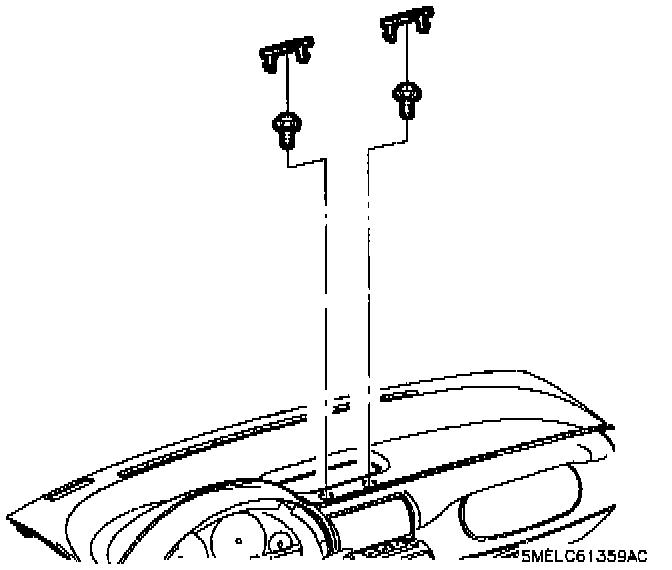

8. Install and tighten screws.
9. Install screw caps.

Torque: 2.3 N-m (20 in-lbs)

10. Install AIR BAG fuse to I/P junction block.
11. Turn ignition switch to the RUN position and verify that the AIR BAG warning lamp flashes seven times and then turns Off. If it does not operate as described, perform the "SIR Diagnostic System Check."
