Windshield Washer Hose: Service and Repair

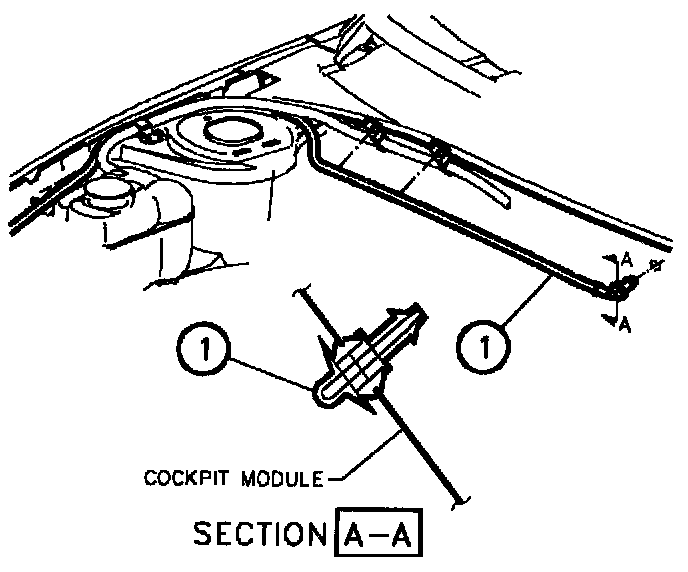

WASHER HOSE ROUTING - ALL




1. Attach washer fluid hose to washer pump.
2. Route washer hose using retaining clips around top of strut tower and across front of cowl as shown in illustration.
3. Ensure washer hose passes through a grommet in the cowl panel and is connected to the grille assembly.
