Tail Lamp: Service and Repair

TAIL LAMP

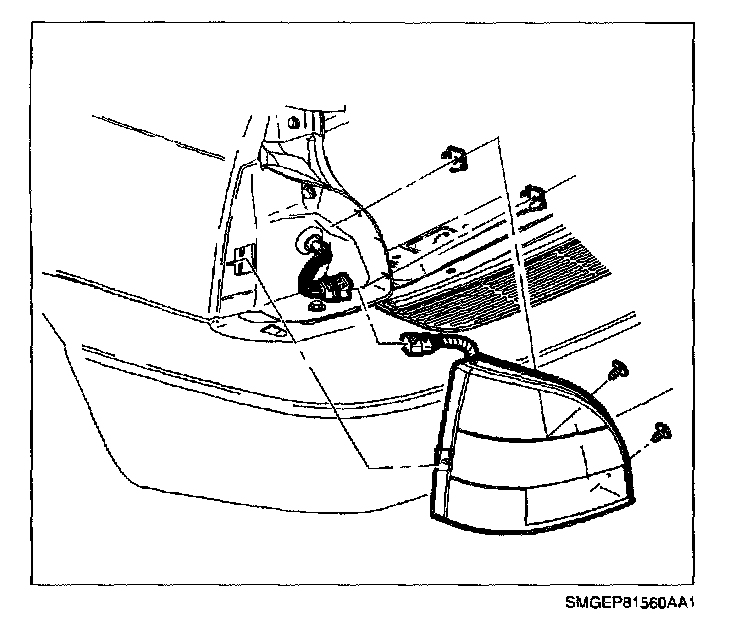

REMOVAL




1. Open rear liftgate.
2. Remove fasteners from side of lamp assembly.
3. Gently pull the tail lamp housing straight back.
4. Disconnect harness assembly from tail lamp assembly.

INSTALLATION




1. Connect harness assembly to tail lamp assembly.
2. Align tail lamp to quarter panel and push gently forward until tab fits into quarter panel.
3. Tighten fasteners.

Torque:
Rear Tail Lamp Fasteners: 3.5 N.m (31 in-lbs)

4. Close rear liftgate.
