52. Right Hand Axle Seal Assemble

RIGHT HAND AXLE SEAL ASSEMBLE

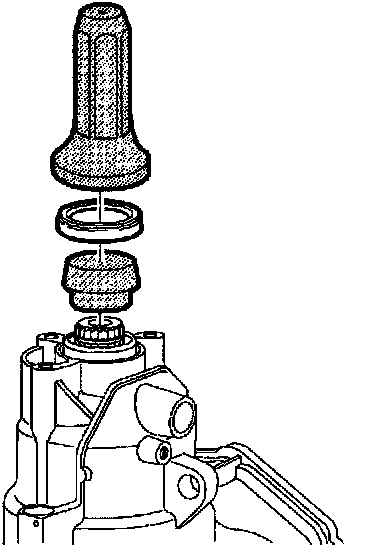

IMPORTANT: The Axle Seal Installer J41102 must be used in order to install seal correctly. J41102-1 Axle Seal Installing Driver installs axle seal to a given depth.





1. Install Axle Seal Expansion Cap J41102-2 onto the stub shaft.
2. Install a new axle seal into case. Use J41102-1 Axle Seal Installing Driver.
3. In order to prevent damage to shaft splines during vehicle operation, add grease (P/N 7847638) to splines on output shaft.
