P0520
DTC P0520

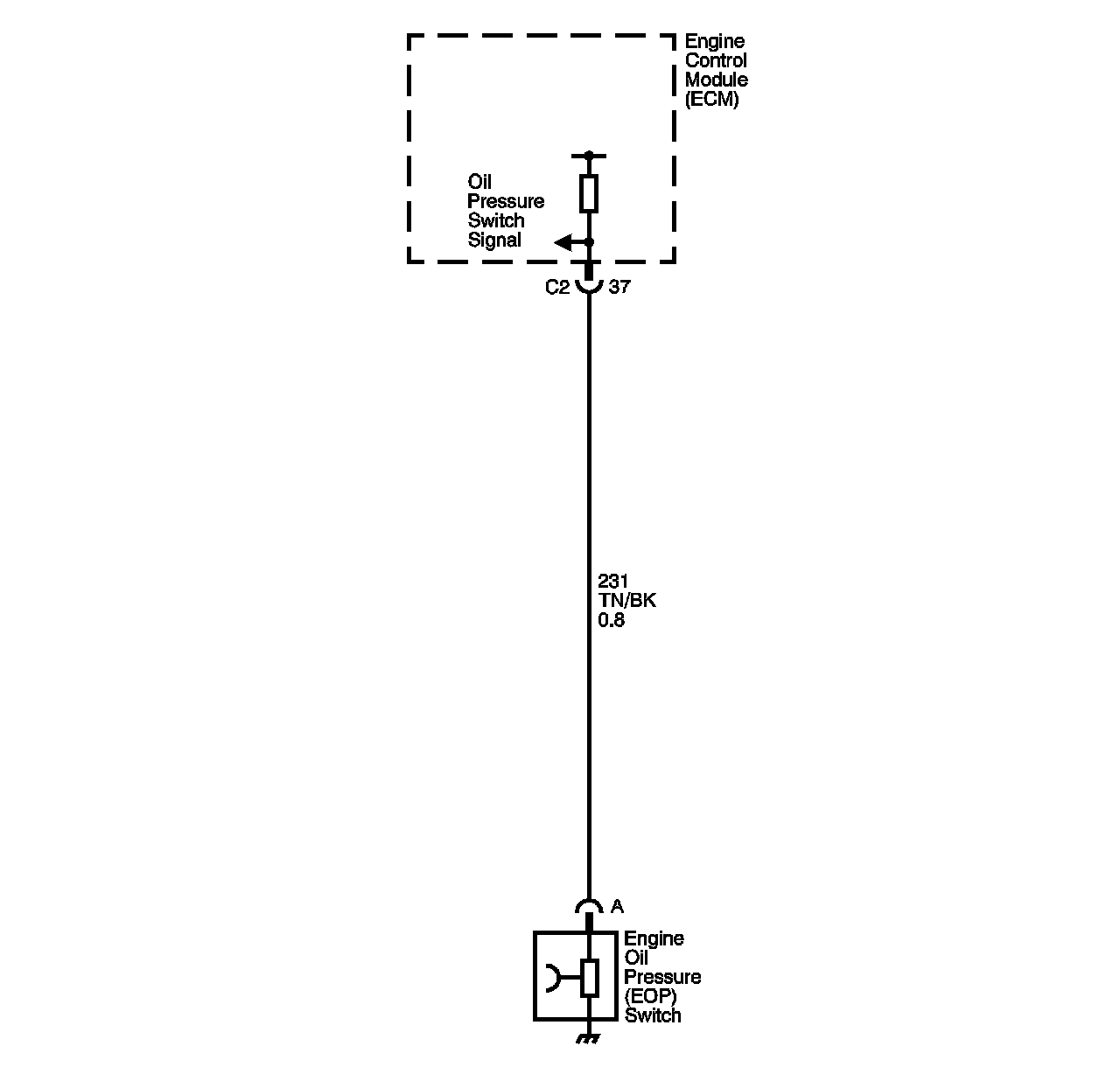

CIRCUIT DESCRIPTION
When the oil pressure is above 4.5 psi, the oil pressure switch opens, and the ECM senses a high signal voltage. The engine control module (ECM) monitors the oil pressure switch signal circuit and sends a class 2 message to the IPC indicating the switch status. When the engine oil pressure is low, the engine oil pressure switch closes, the signal circuit is low, and DTC P0520 sets.
CONDITIONS FOR RUNNING THE DTC
The ignition is ON, with the engine ON.
CONDITIONS FOR SETTING THE DTC
- The ECM detects that the EOP sensor signal circuit is pulled low.
- The above condition is present for greater than 5 seconds.
ACTION TAKEN WHEN THE DTC SETS
- The ECM records the operating conditions at the time the diagnostic test fails. The ECM displays this information in the Failure Records on the scan tool.
- The instrument panel cluster (IPC) illuminates the engine oil pressure indicator.
CONDITIONS FOR CLEARING THE DTC
- The DTC becomes history when the conditions for setting the DTC are no longer present.
- The history DTC clears after 40 malfunction free warm-up cycles.
- The engine control module (ECM) receives a clear code command from the scan tool.
DIAGNOSTIC AIDS
Using the Failure Records data may help locate an intermittent condition. If you cannot duplicate the DTC, the information in the Failure Records can help determine how many miles since the DTC set. The Fail Counter and Pass Counter can help determine how many ignition cycles that the diagnostic test reported a pass and/or a fail.
The test light will illuminate when the vehicle is started, until engine oil pressure is achieved.
TEST
