Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Instrument Panel, Gauges and Warning Indicators >> System Diagram

System Diagram

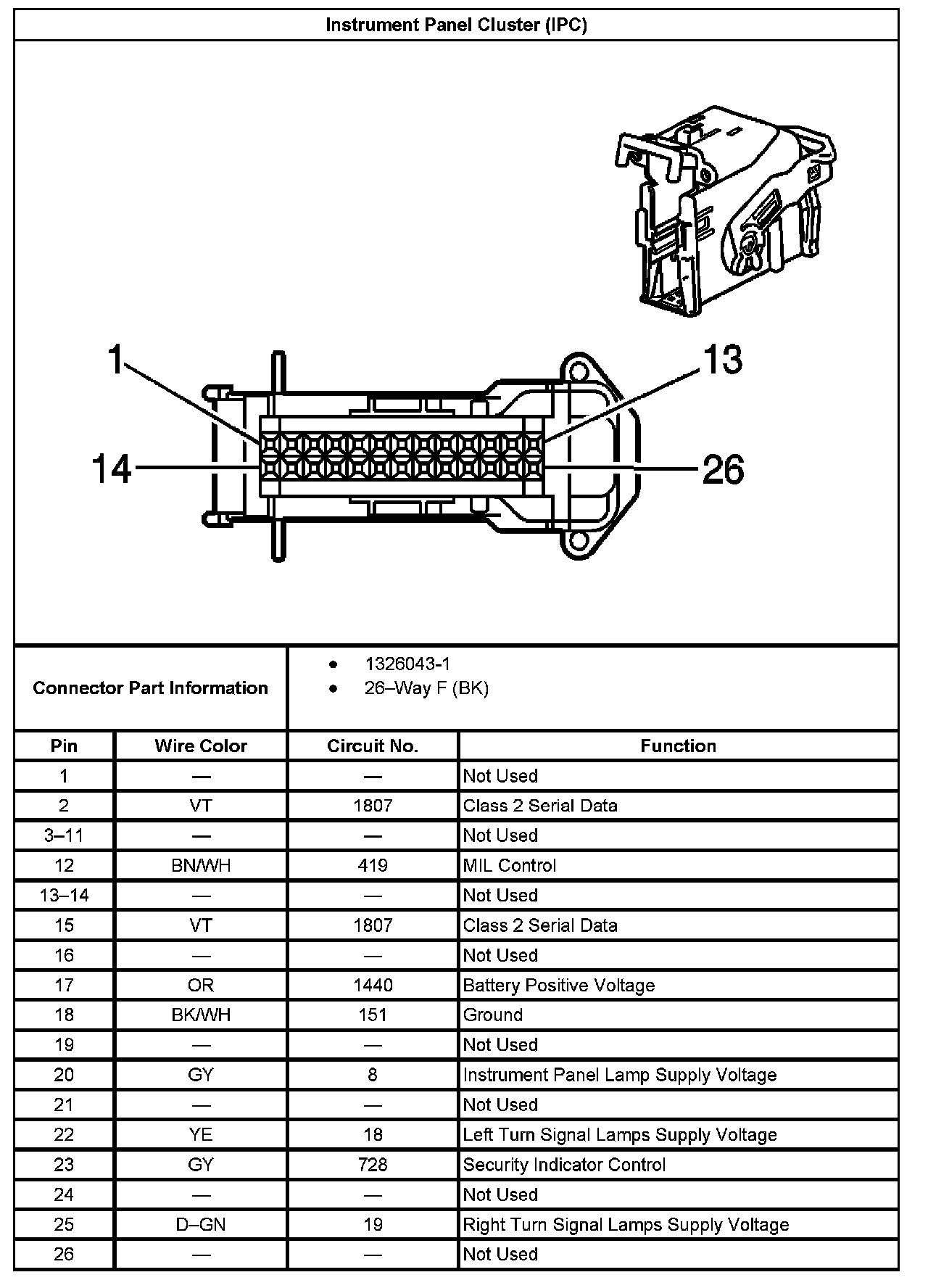

Instrument Panel Cluster (IPC):
