Home >> Saturn >> 2003 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Speaker >> LR

LR

Speaker - LR (With RPO Code U79 And UX7):

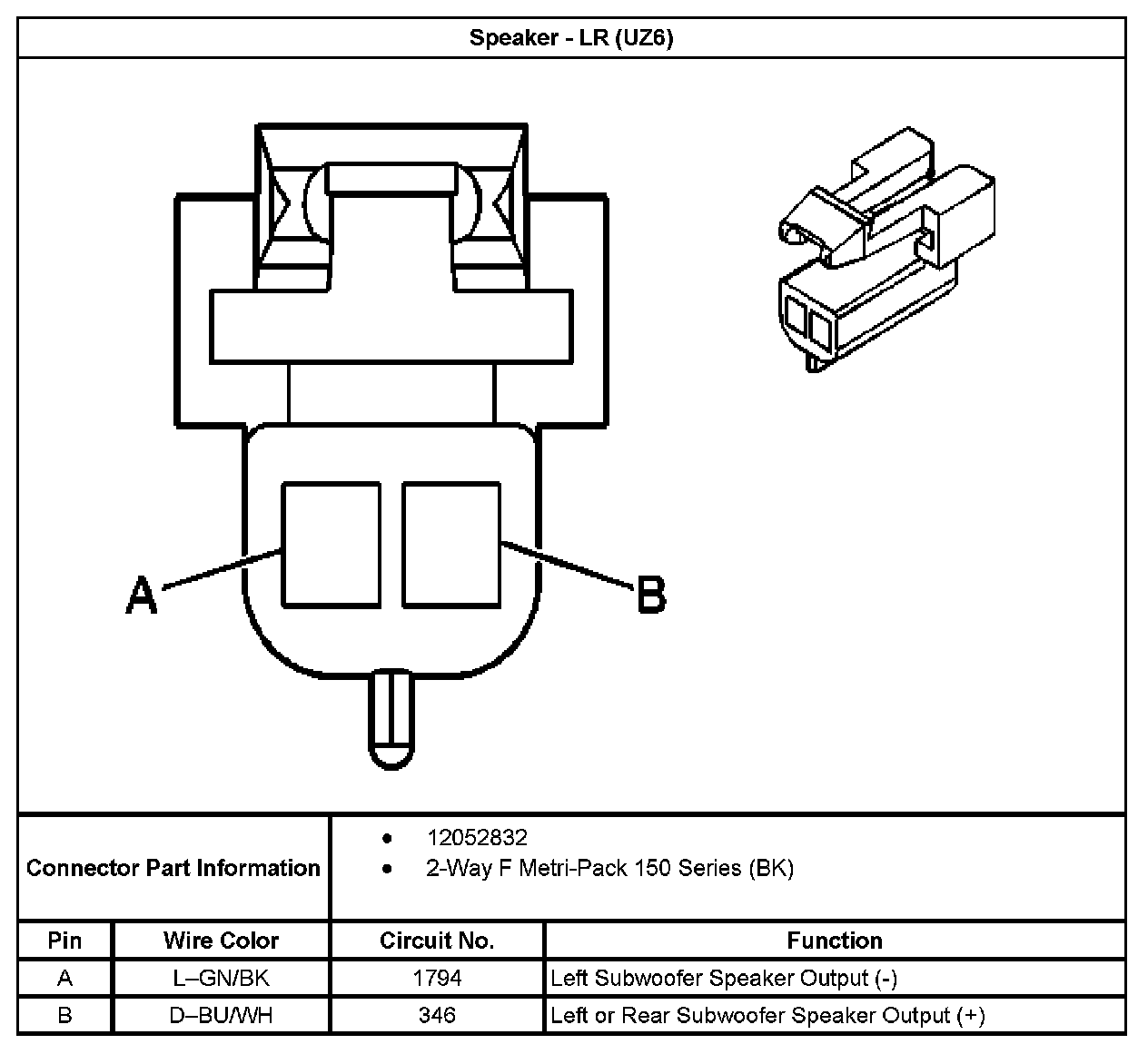

Speaker - LR (With RPO Code UZ6):
