Fluid Pan, A/T

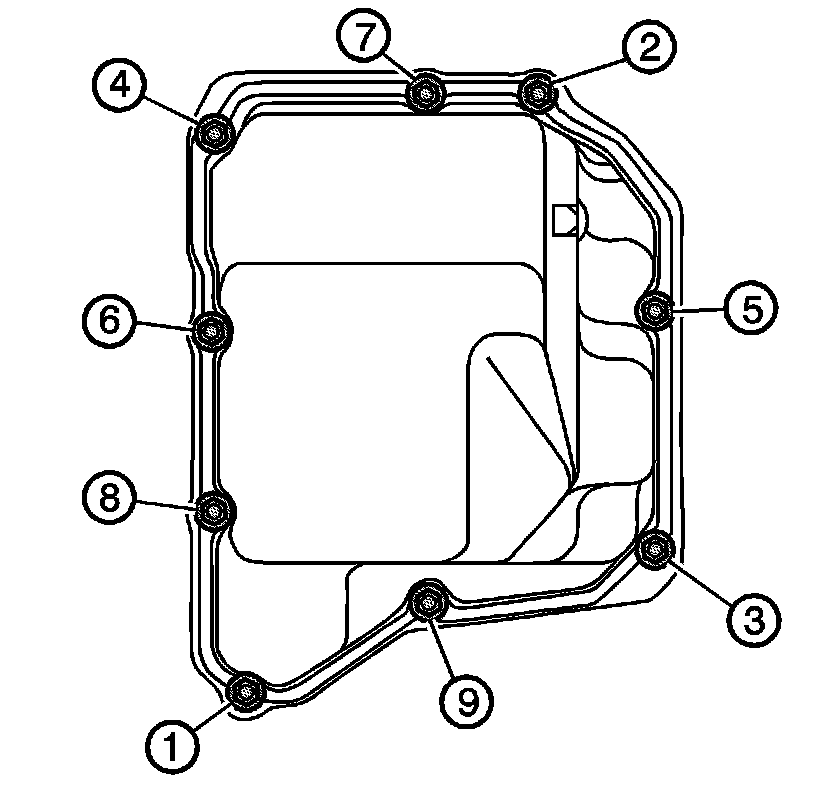

Tighten the 9 control valve body bolts/screws in sequence.
Tighten the control valve body cover bolts/screws to
13 Nm (10 ft. lbs.).
