Transmission Related Connector End Views
Automatic Transmission Related Connector End Views

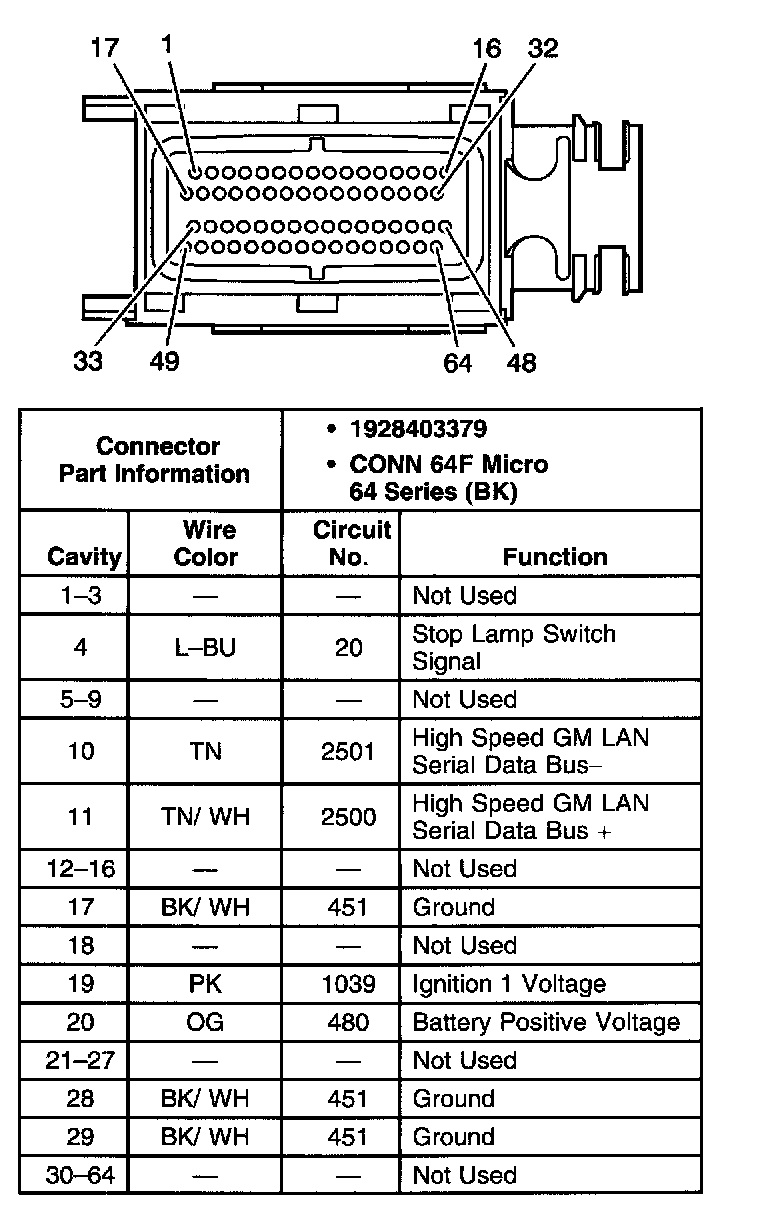

Transmission Control Module Harness 64-way C1 Connector

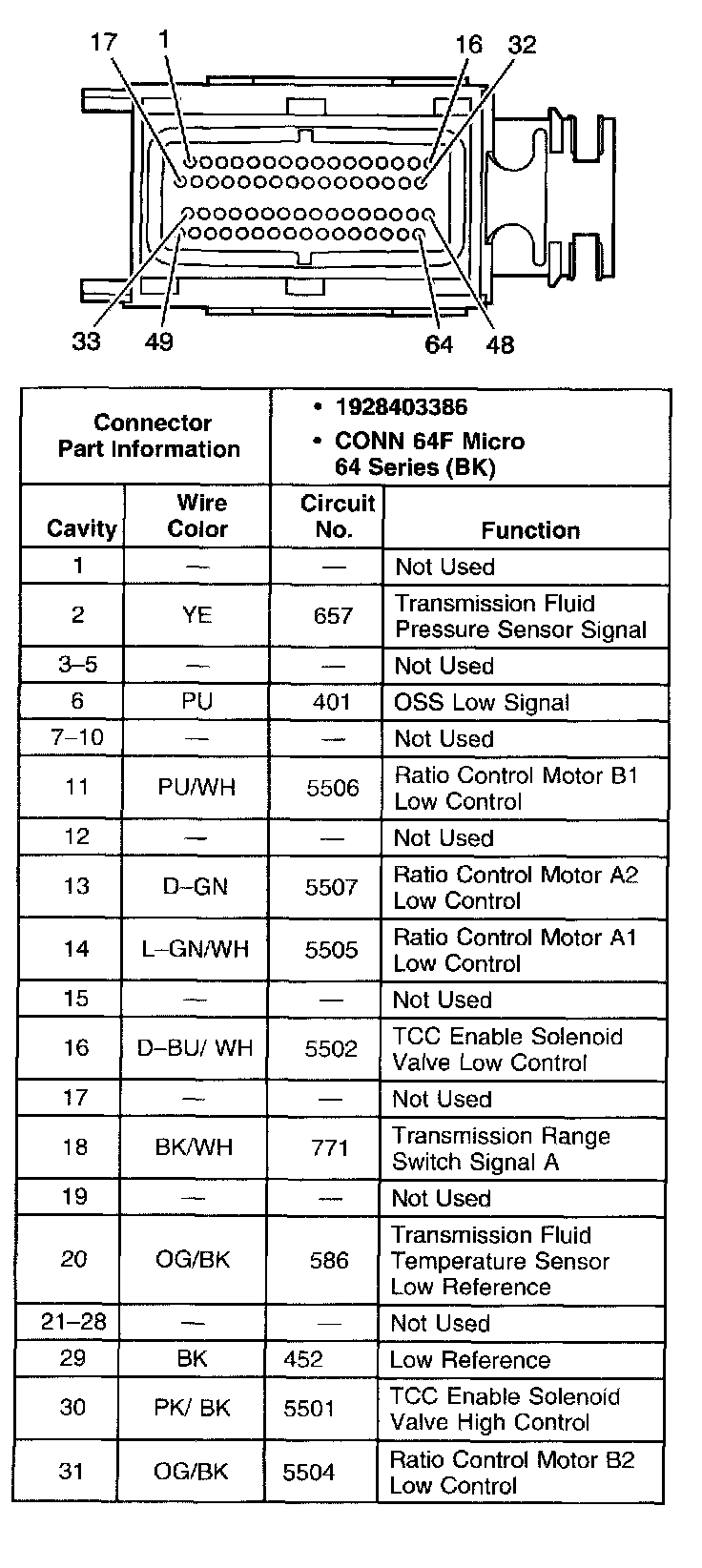

Transmission Control Module Harness 64-way C2 Connector
Park/Neutral Position Switch Harness 12-way Connector

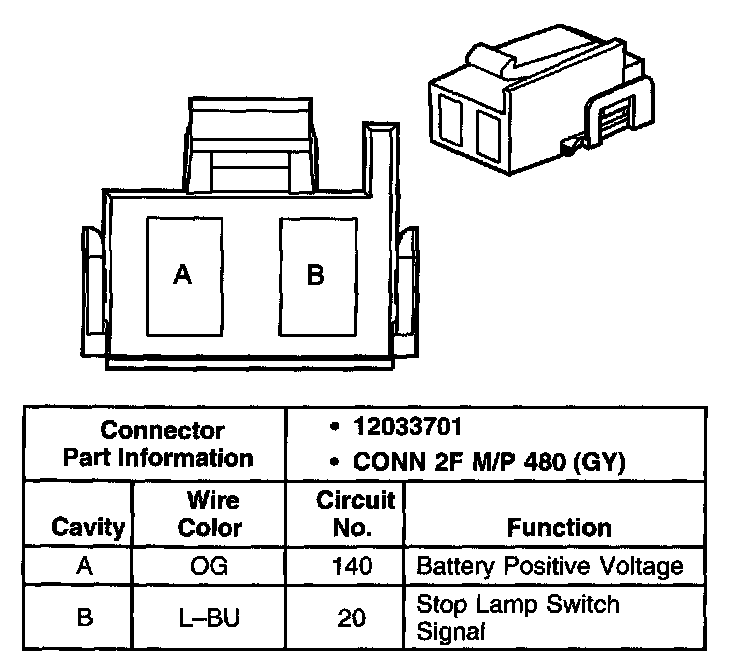

Brake Stop Lamp Switch Harness 2-way Connector
