Home >> Saturn >> 2004 >> ION L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo

Radio/Stereo

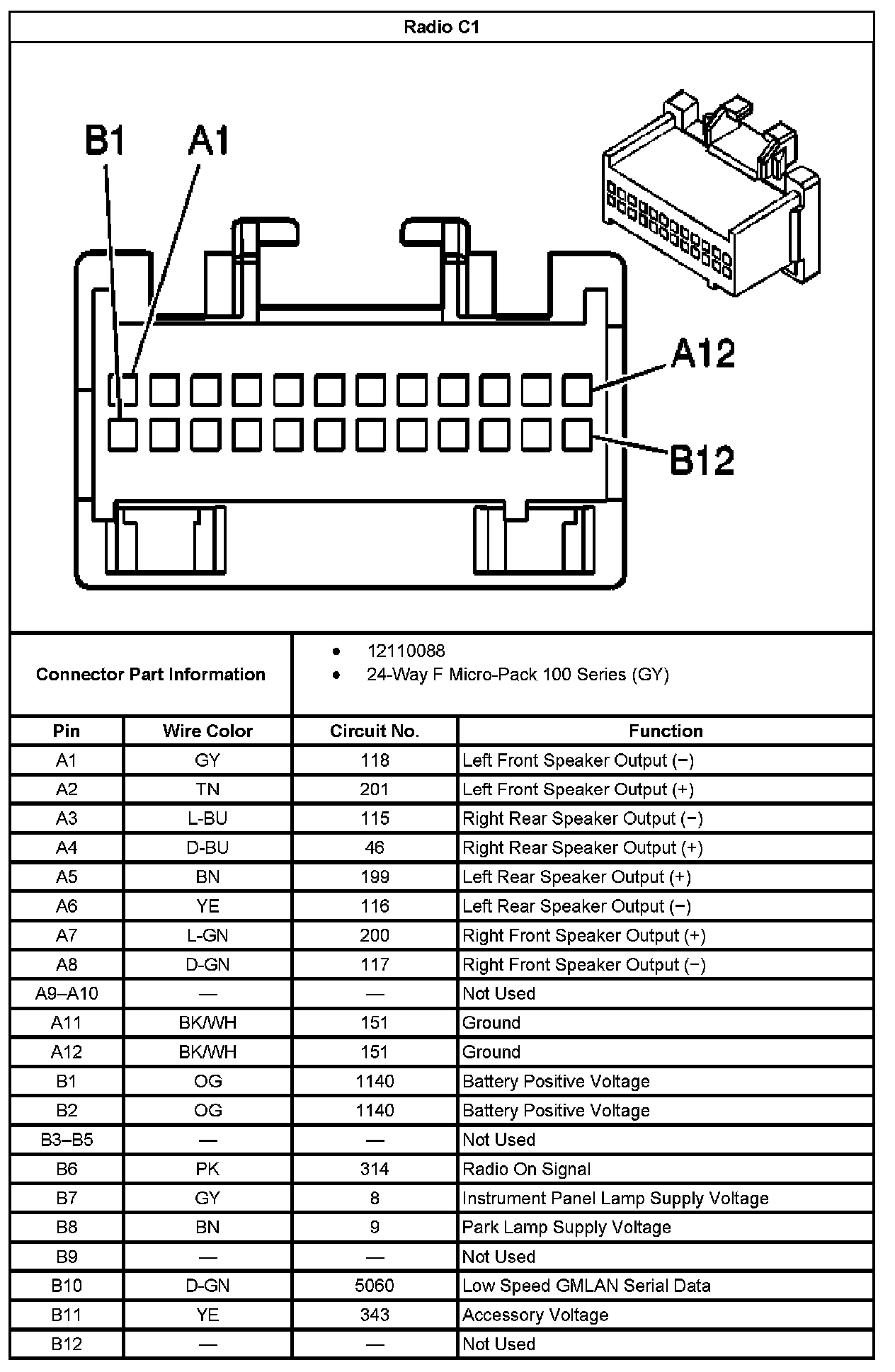

Radio C1:

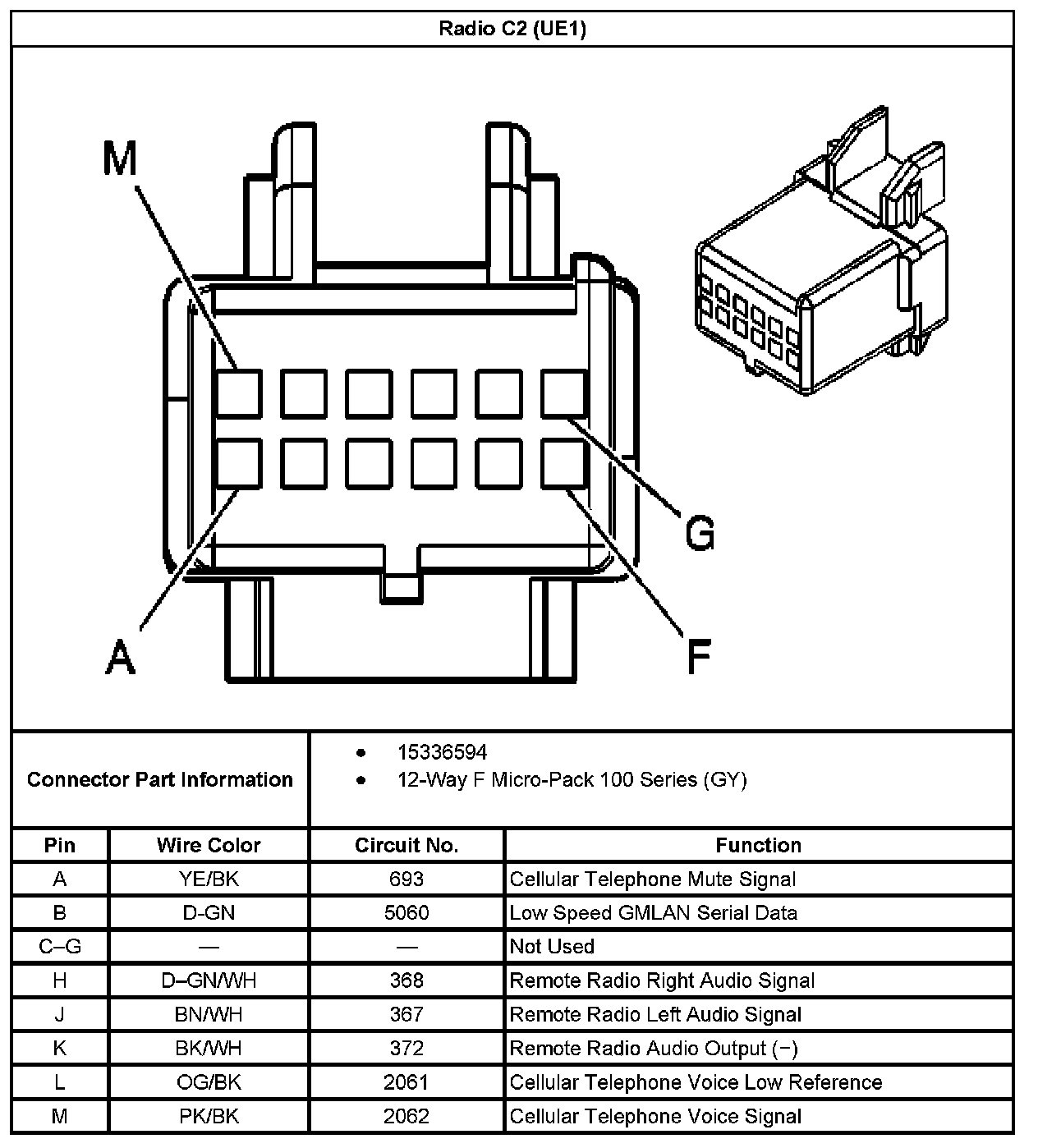

Radio C2 (With RPO Code UE1):

Digital Radio Receiver To Radio:
