Home
>>
Saturn
>>
2004
>>
ION L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>
Transmission Park/Neutral Position Switch Assembly.........
Transmission Park/Neutral Position Switch Assembly.........

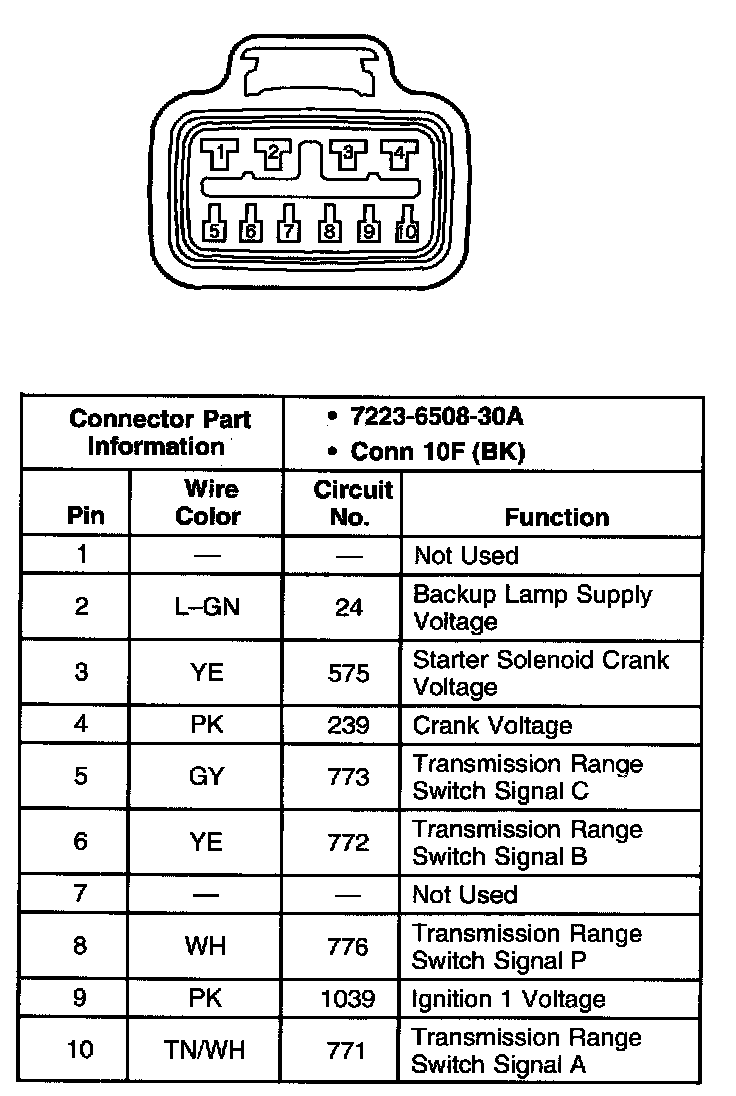

Transmission Park/Neutral Position Switch Assembly Connector, Wiring Harness Side
