Automatic Transmission/Transaxle
>>

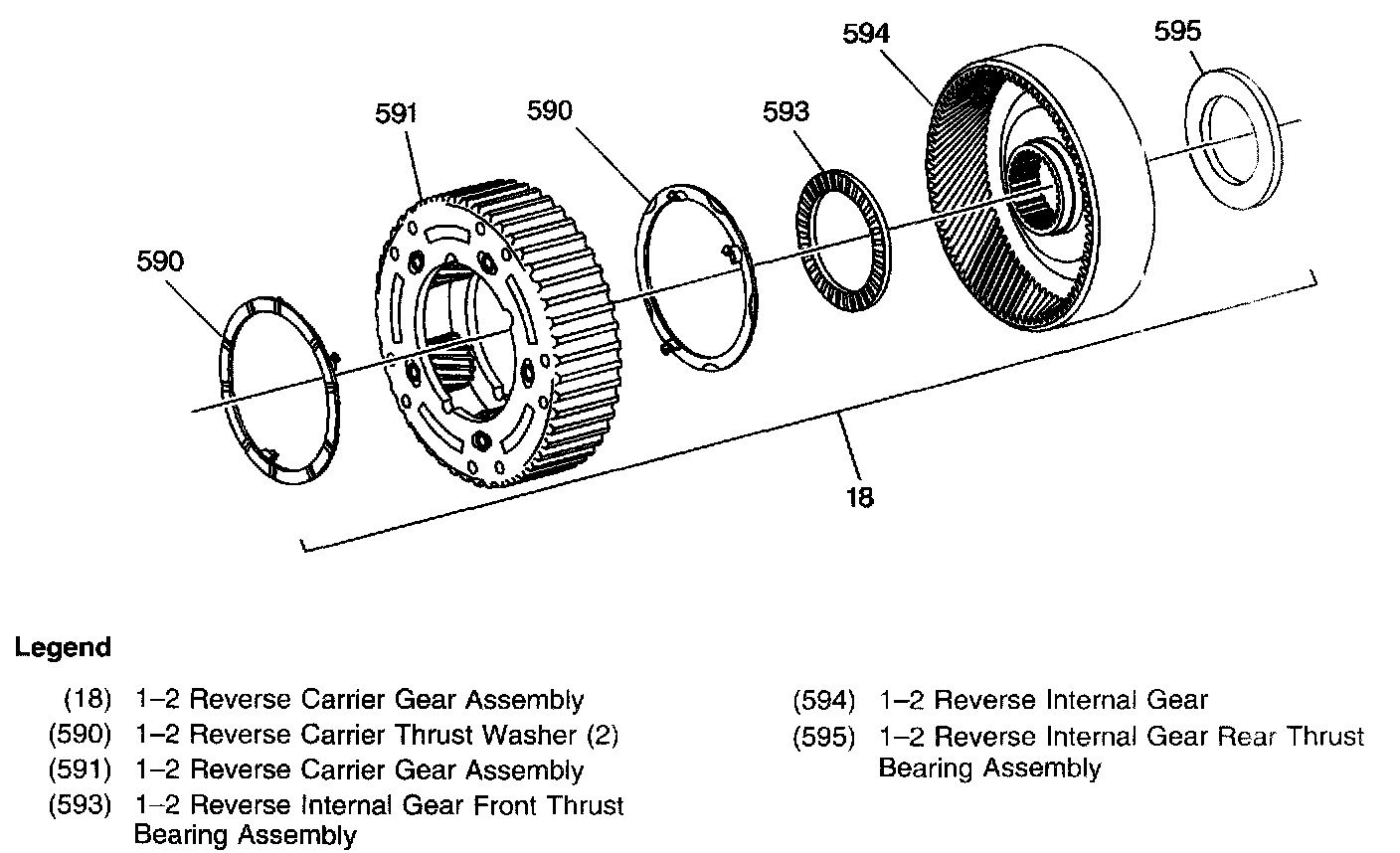

1-2 Reverse Carrier Gear Assembly
1-2 Reverse Carrier Gear Assembly
1-2 Reverse Carrier Gear Assembly
