Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saturn
>>
2004
>>
ION L4-2.2L VIN F
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Continuously Variable Transmission/Transaxle, CVT
>>
Ratio VS Speed
Ratio VS Speed
Ratio vs Speed

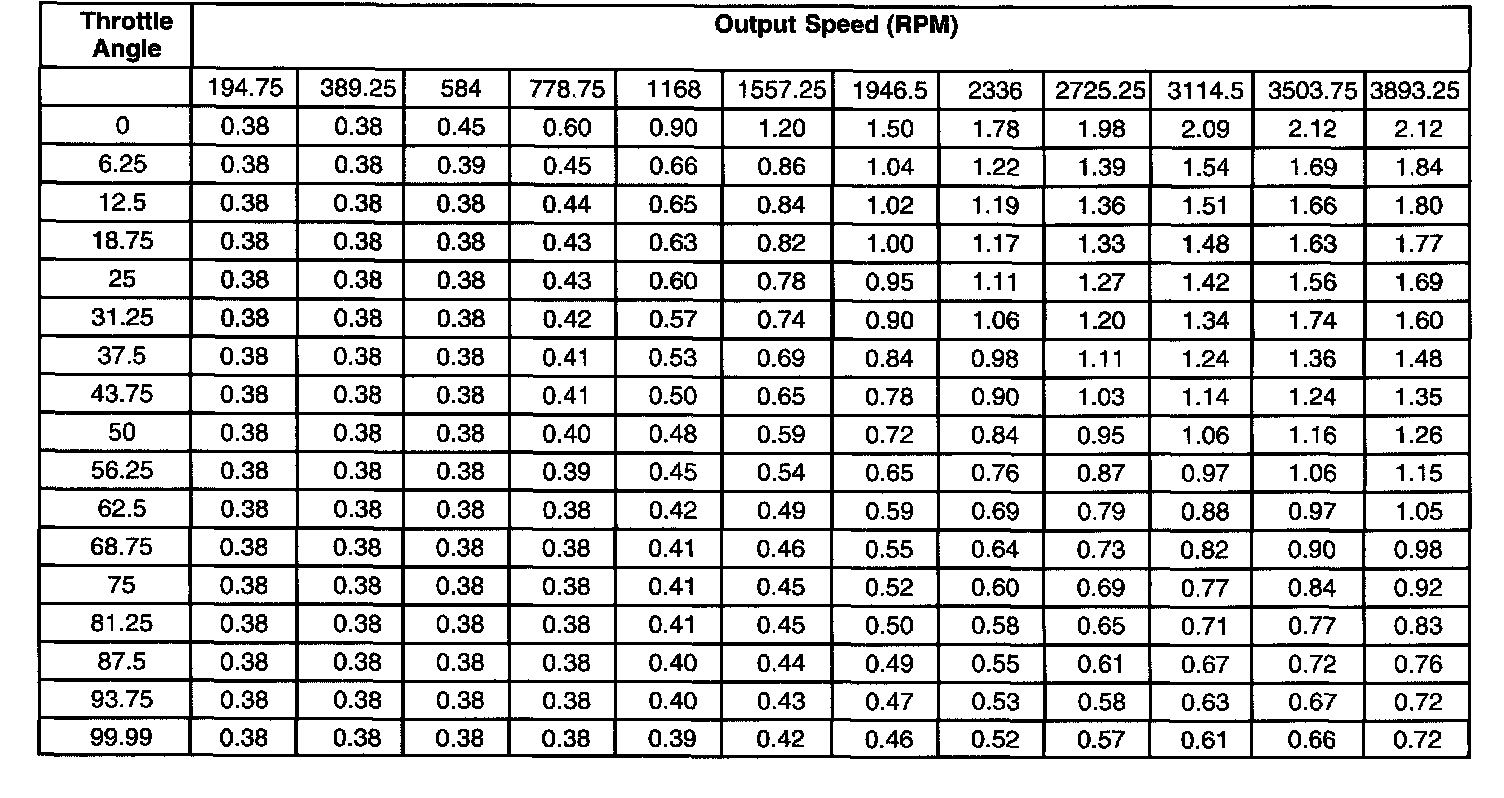

Ratio from Stop

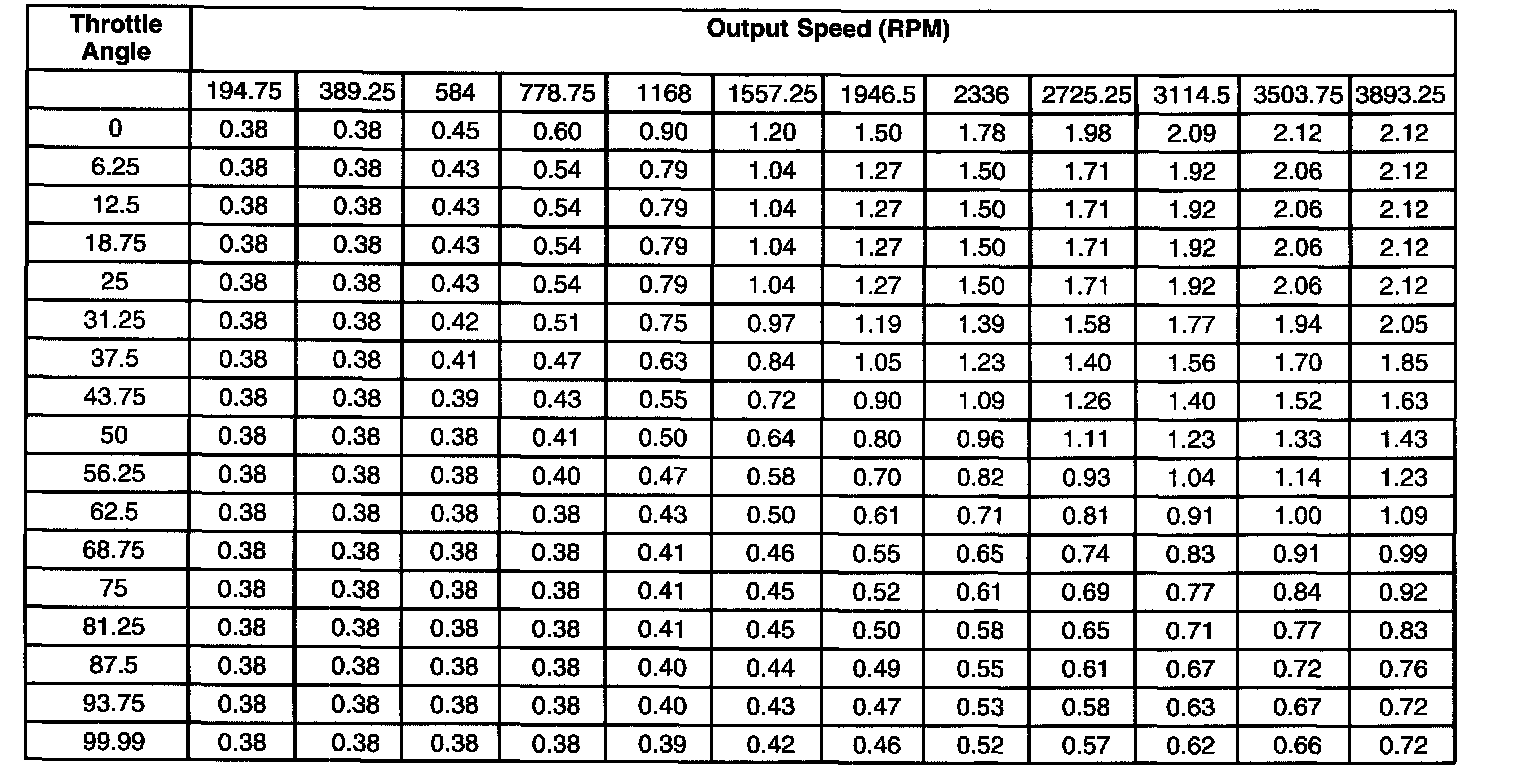

Ratio Steady State
