Fluid Passages

Fluid Passages





Transmission Case Assembly (50) - Case Cover Side Passages





Control Solenoid Valve Assembly (201) - Control Valve Body Assembly Side Passages





Control Valve Body Assembly (207) - Transmission Case Assembly Side Passages

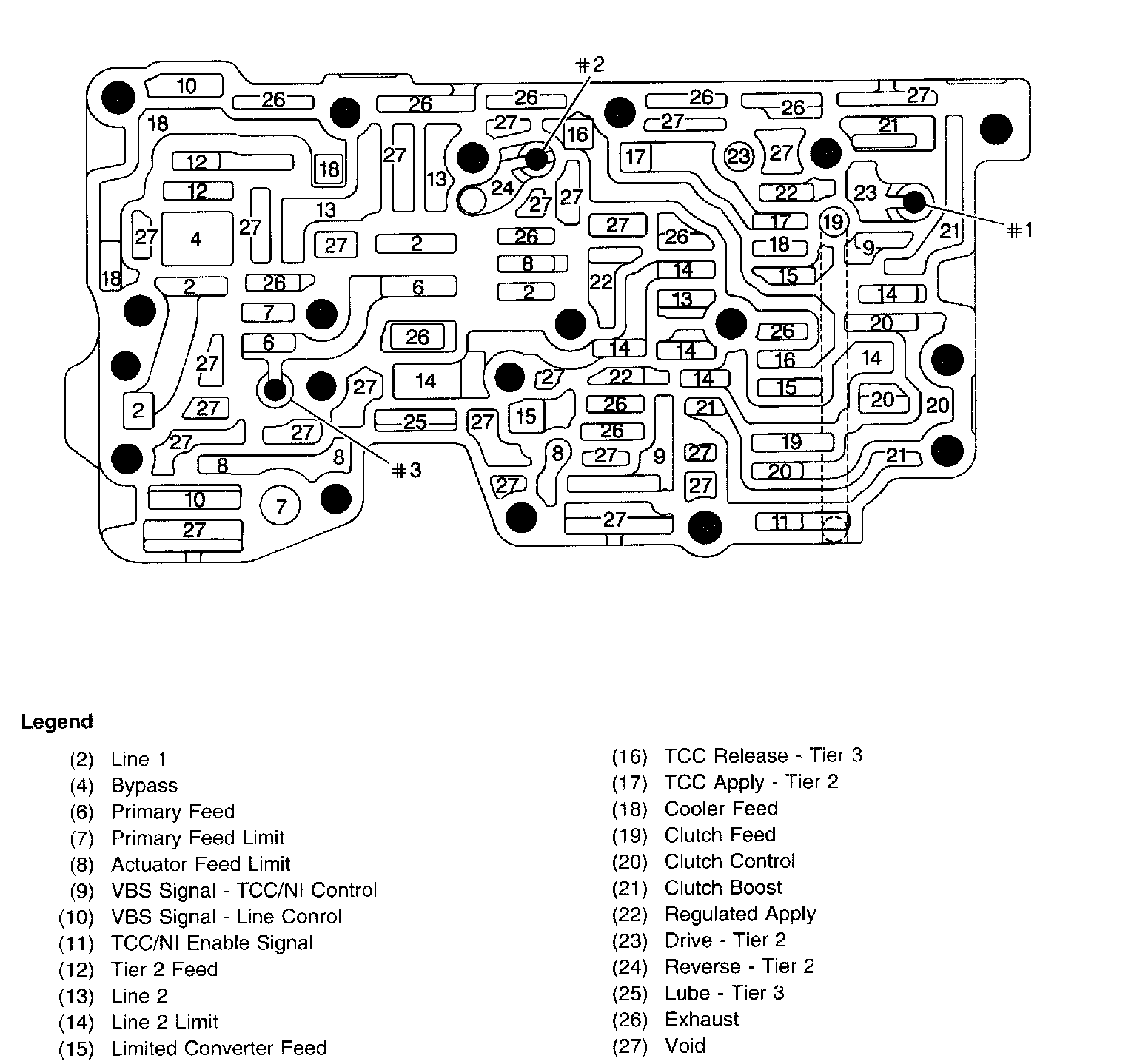

Control Valve Body Assembly (207) - Control Solenoid Valve Assembly Side Passages





Control Valve Body Spacer Plate - with Gasket (73) - Transmission Case Assembly Side Passages

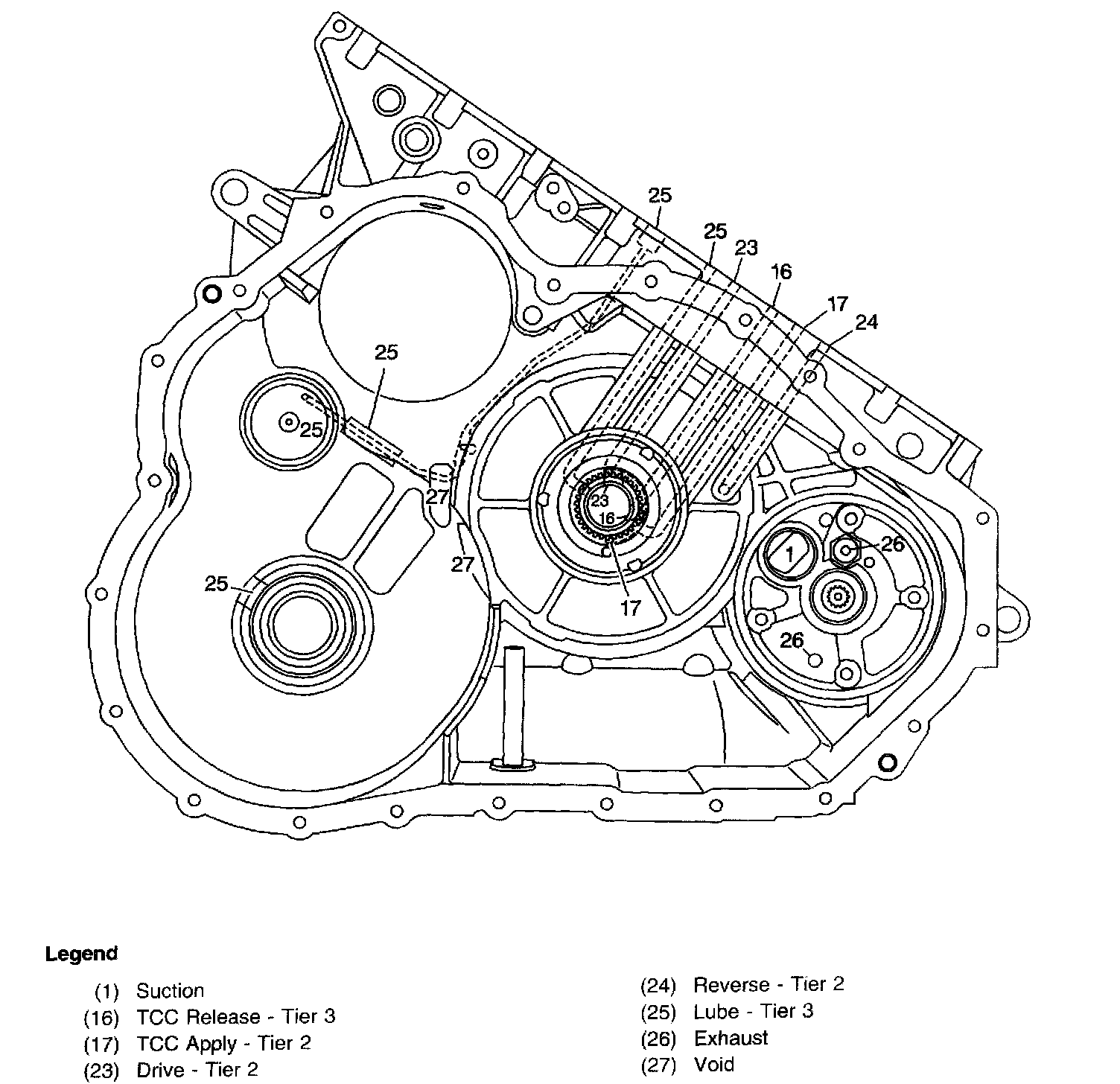

Transmission Case Assembly (50) - Torque Converter and Differential Housing Assembly Side Passages

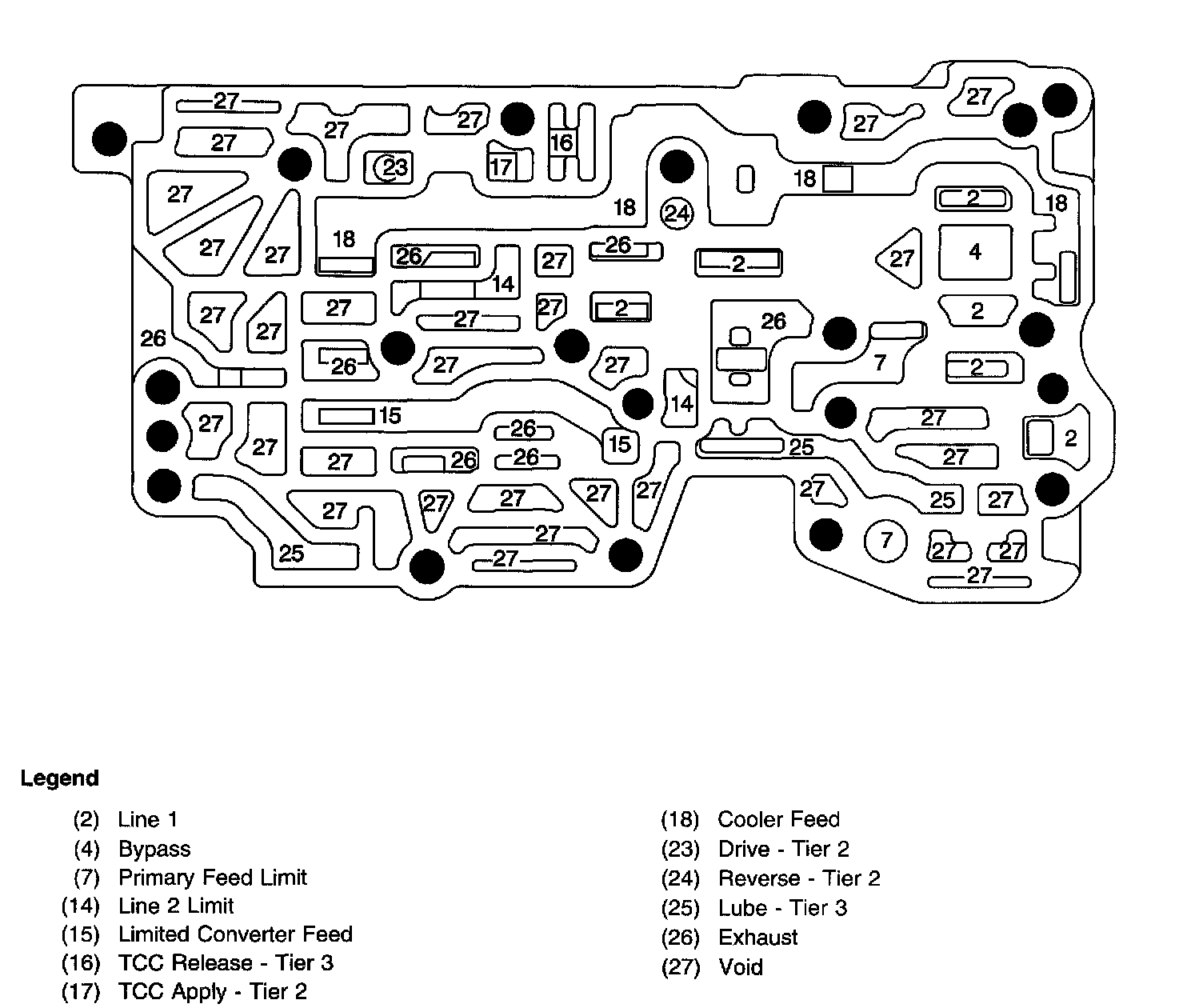

Control Valve Body Spacer Plate - with Gasket (73) - Control Valve Body Side Passages





Control Valve Body Spacer Plate - with Gasket (204) - Control Valve Body Assembly Side Passages

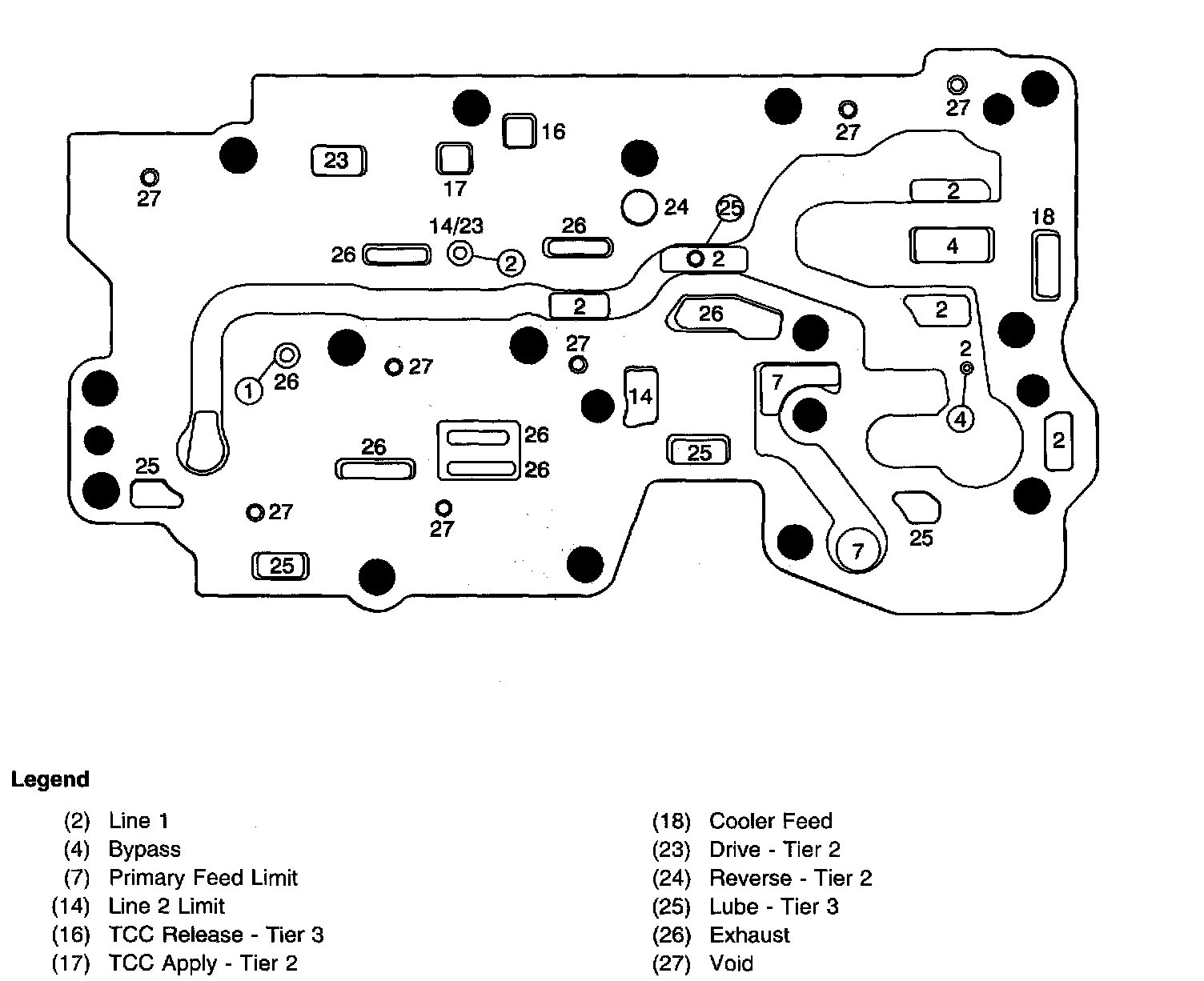

Control Valve Body Spacer Plate - with Gasket (204) - Control Solenoid Valve Assembly Side Passages





Transmission Case Cover (97) - Transmission Case Assembly Side Passages





Transmission Case Cover (97) - Pulley Opening Cover Side Passages

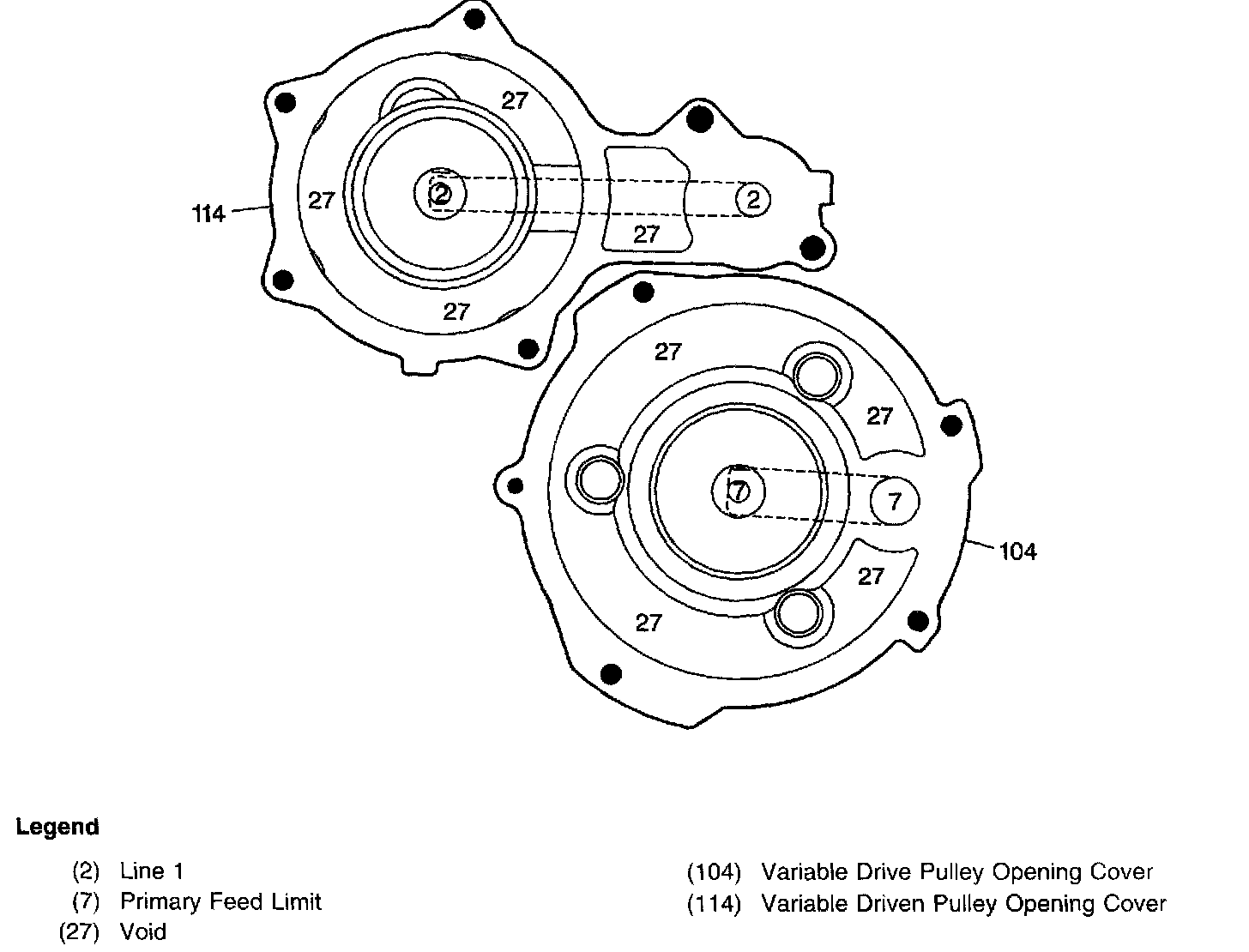

Pulley Opening Covers (114 and 104) - Transmission Case Cover Side Passages

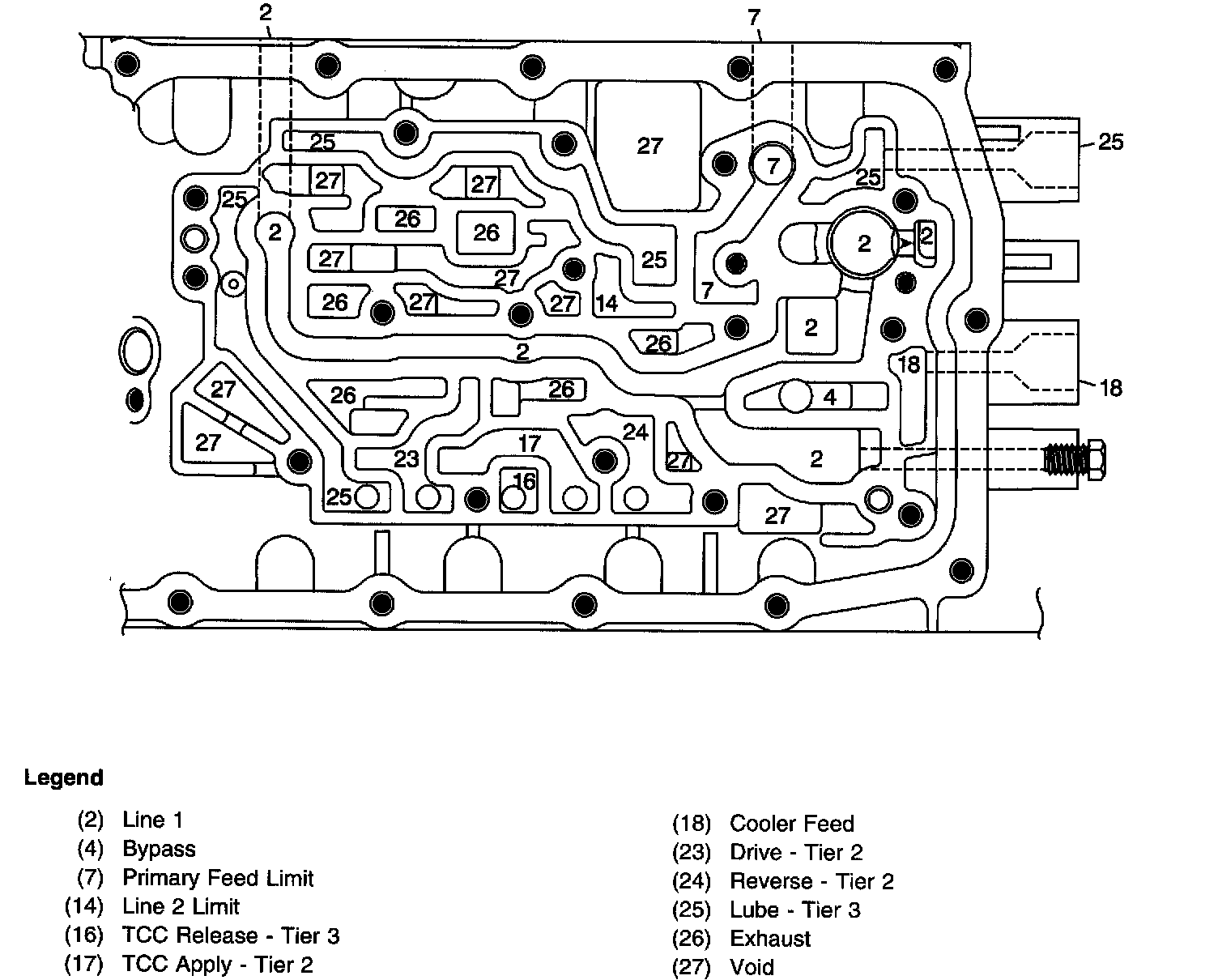

Transmission Case Assembly (50) - Control Valve Body Side Passages
