Home >> Saturn >> 2004 >> L Series L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Components

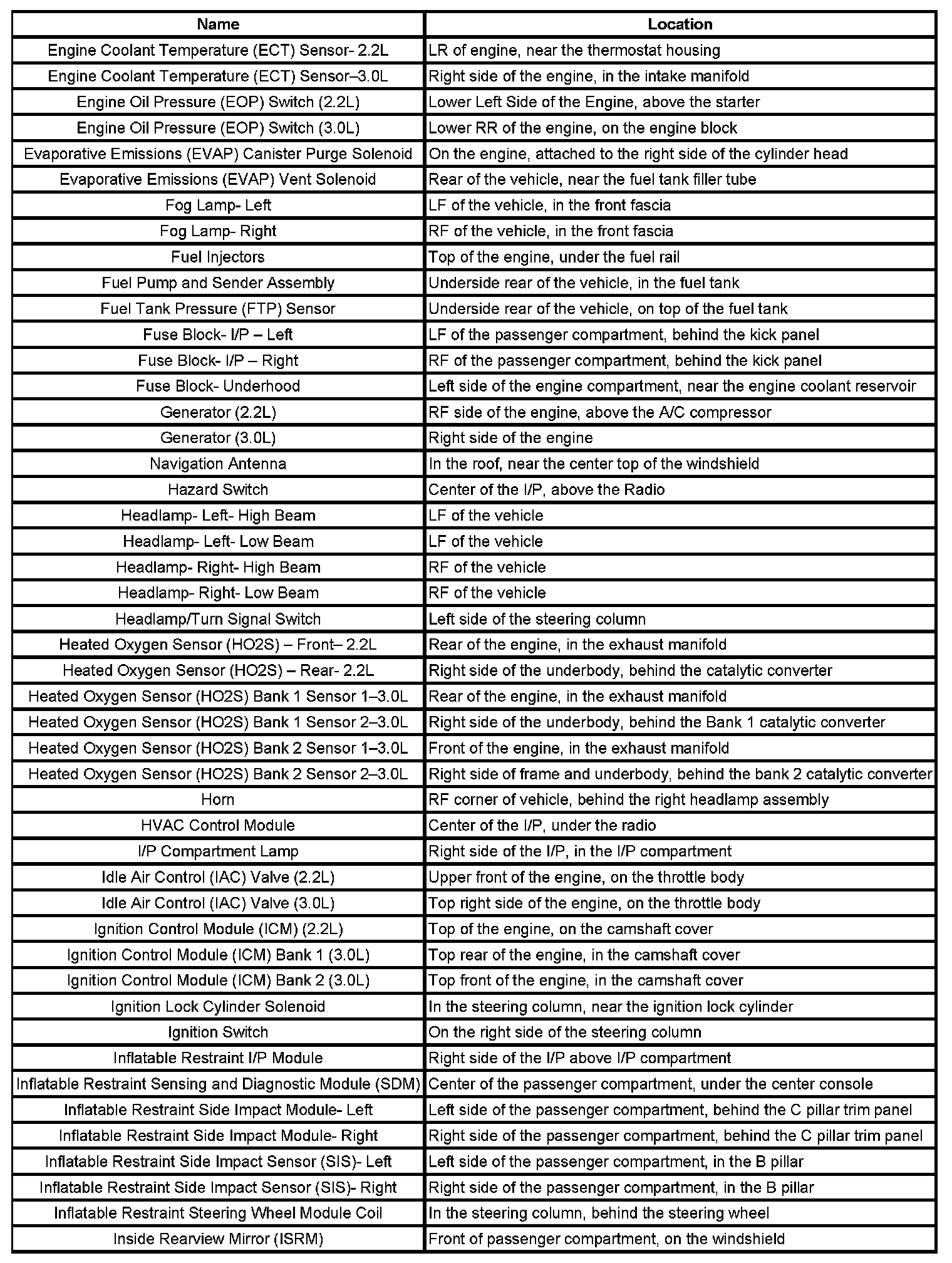

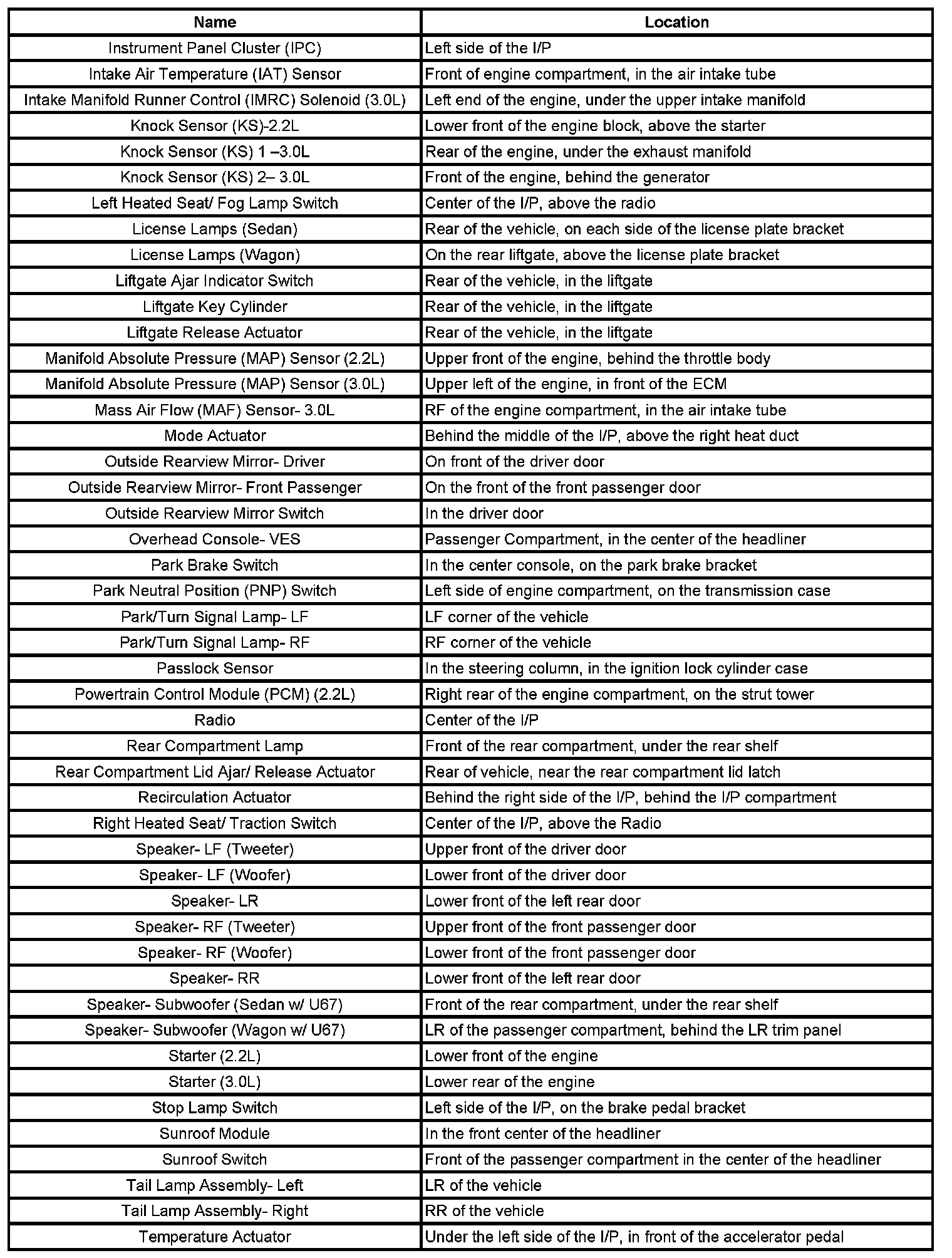

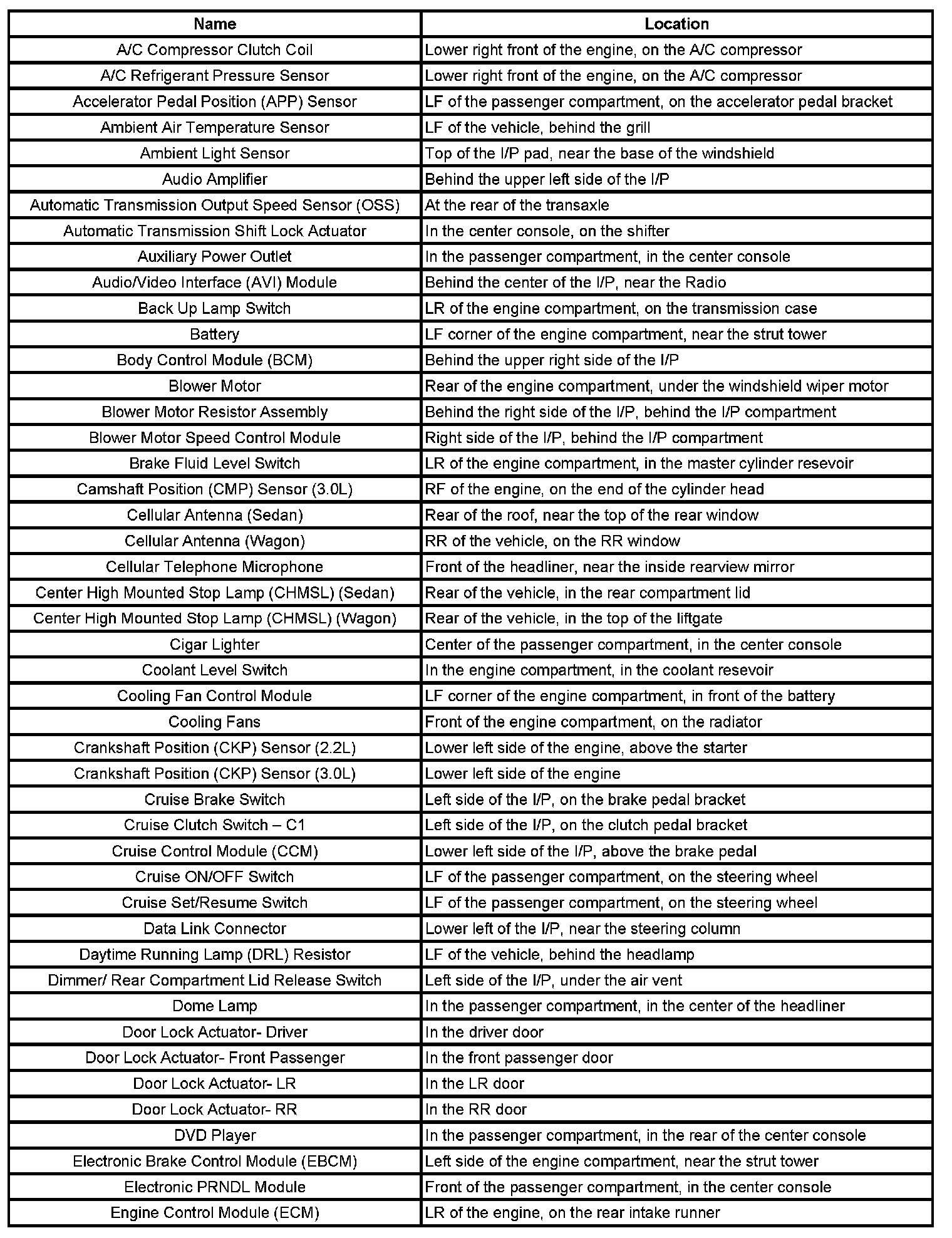

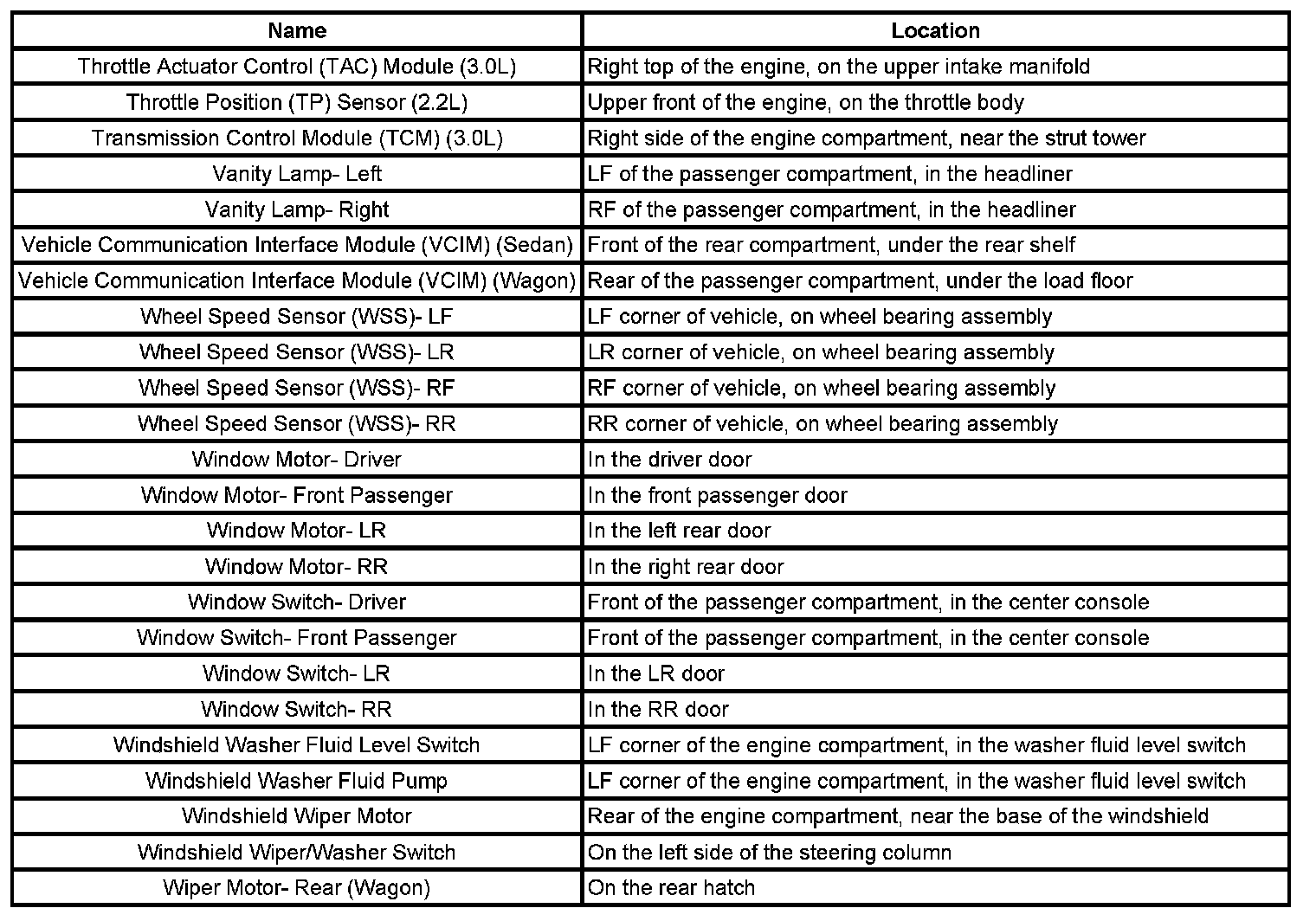

Components

A/C - En:

En - In:

In - Te:

Th - Wi:
