Home
>>
Saturn
>>
2004
>>
L Series V6-3.0L VIN R
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
C500 - C599
>>

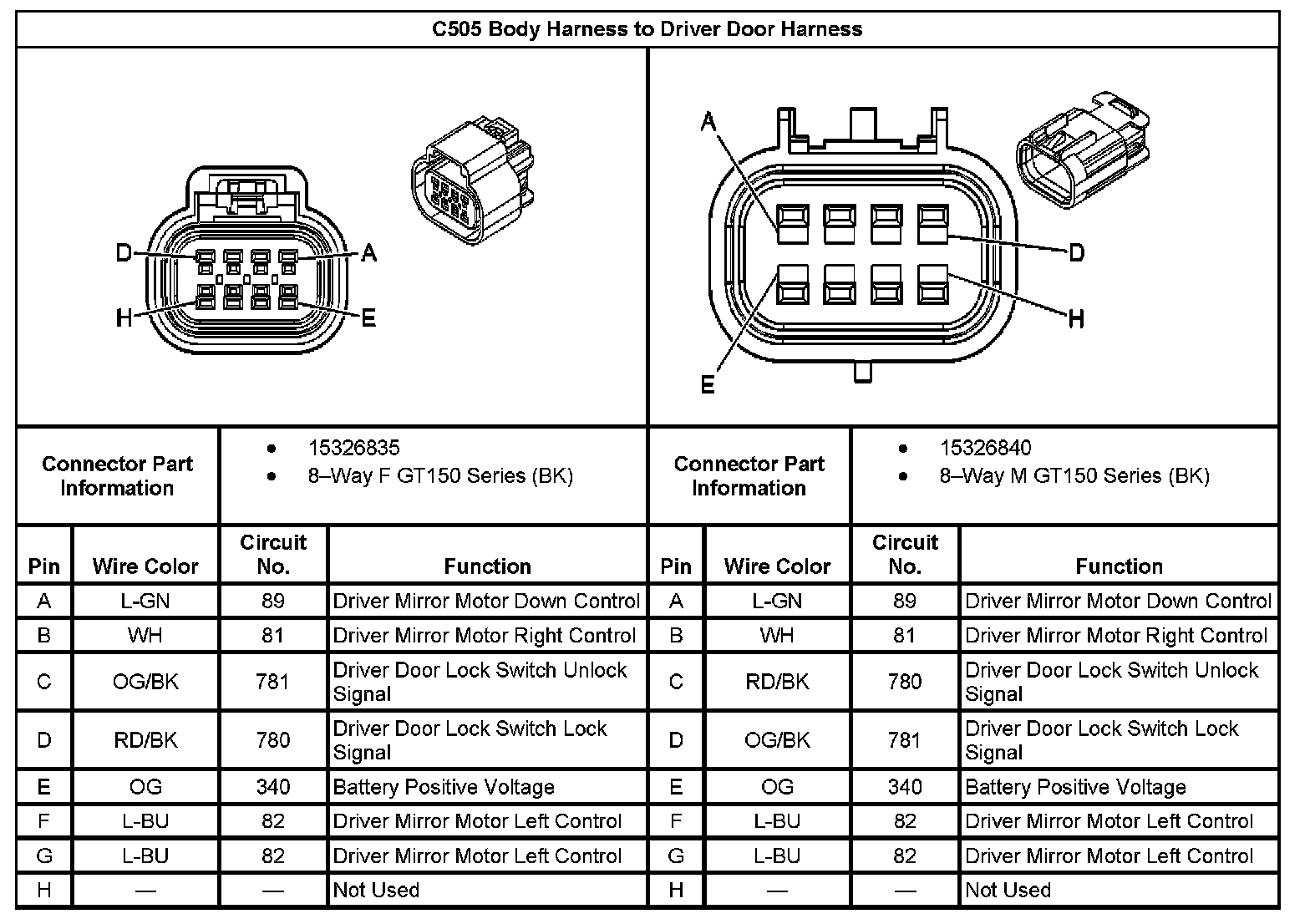

C505 Body Harness To Driver Door Harness
C505 Body Harness To Driver Door Harness
C505 Body Harness To Driver Door Harness:
