Instrument Panel Cluster (IPC) - Trim Plate Bezel Replacement

TRIM PLATE BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER

REMOVAL PROCEDURE
1. Remove the knee bolster trim panel.
2. Remove the steering column trim cover.
3. Move steering wheel to lowest position.

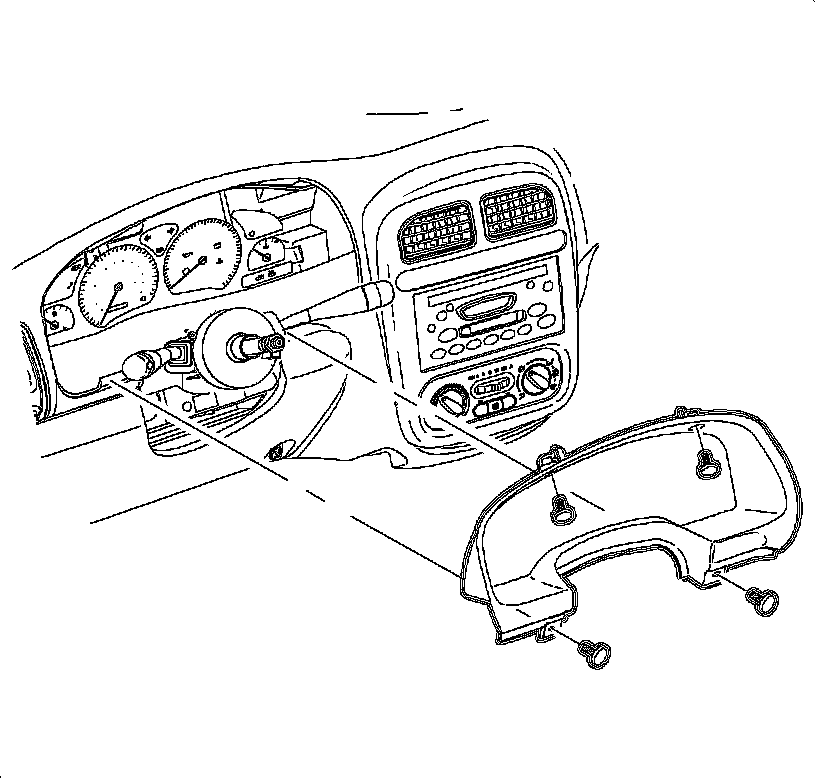

4. Remove the four fasteners.
5. Remove the cluster bezel.

INSTALLATION PROCEDURE
1. Install the cluster bezel.




2. Install the bezel fasteners.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the bezel fasteners to 2.5 N.m (22 lb in).

3. Install the steering column trim cover.
4. Install the knee bolster trim panel.
