Operation CHARM: Car repair manuals for everyone.
Home >> Saturn >> 2005 >> L Series V6-3.0L VIN R >> Repair and Diagnosis >> Diagrams >> Components

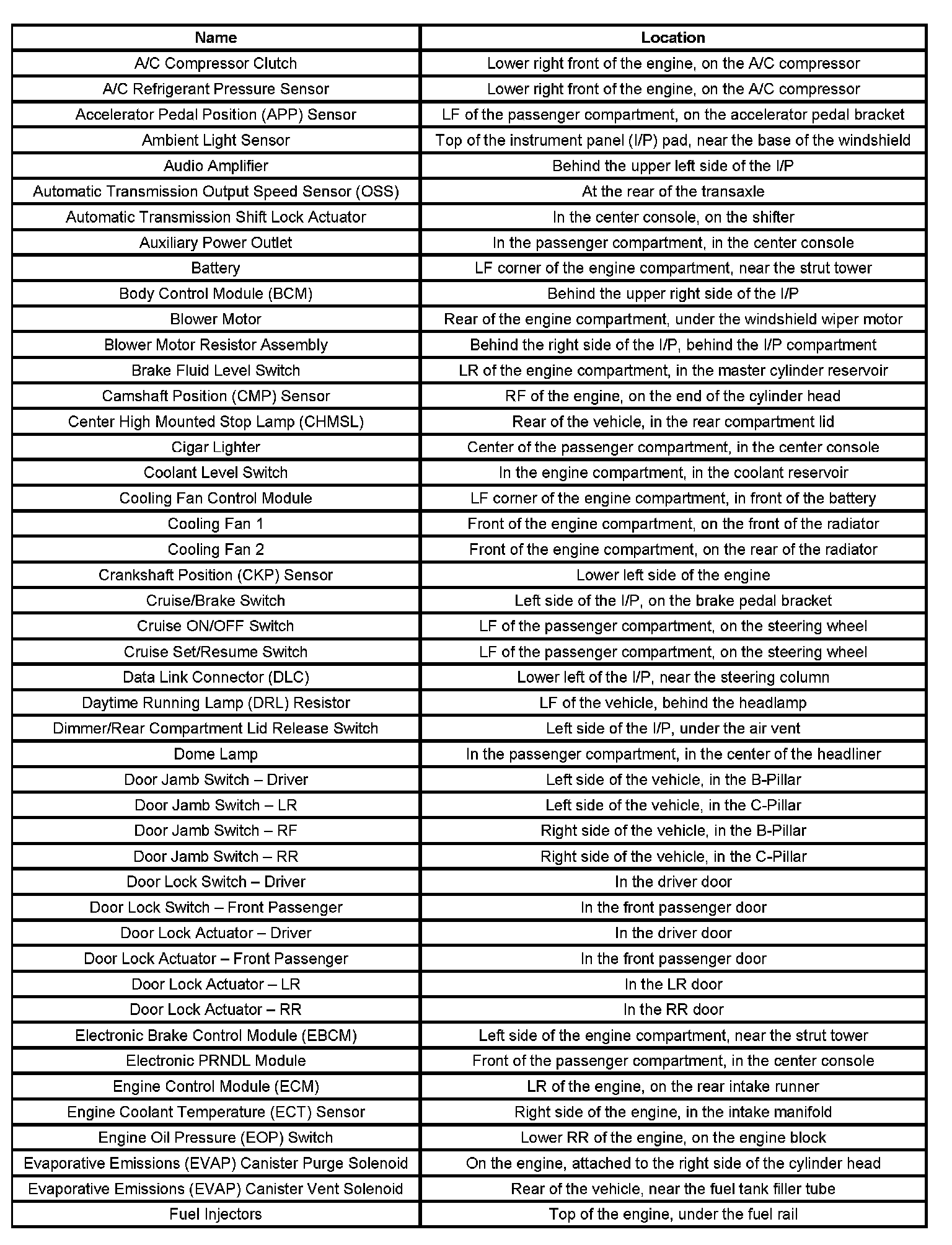

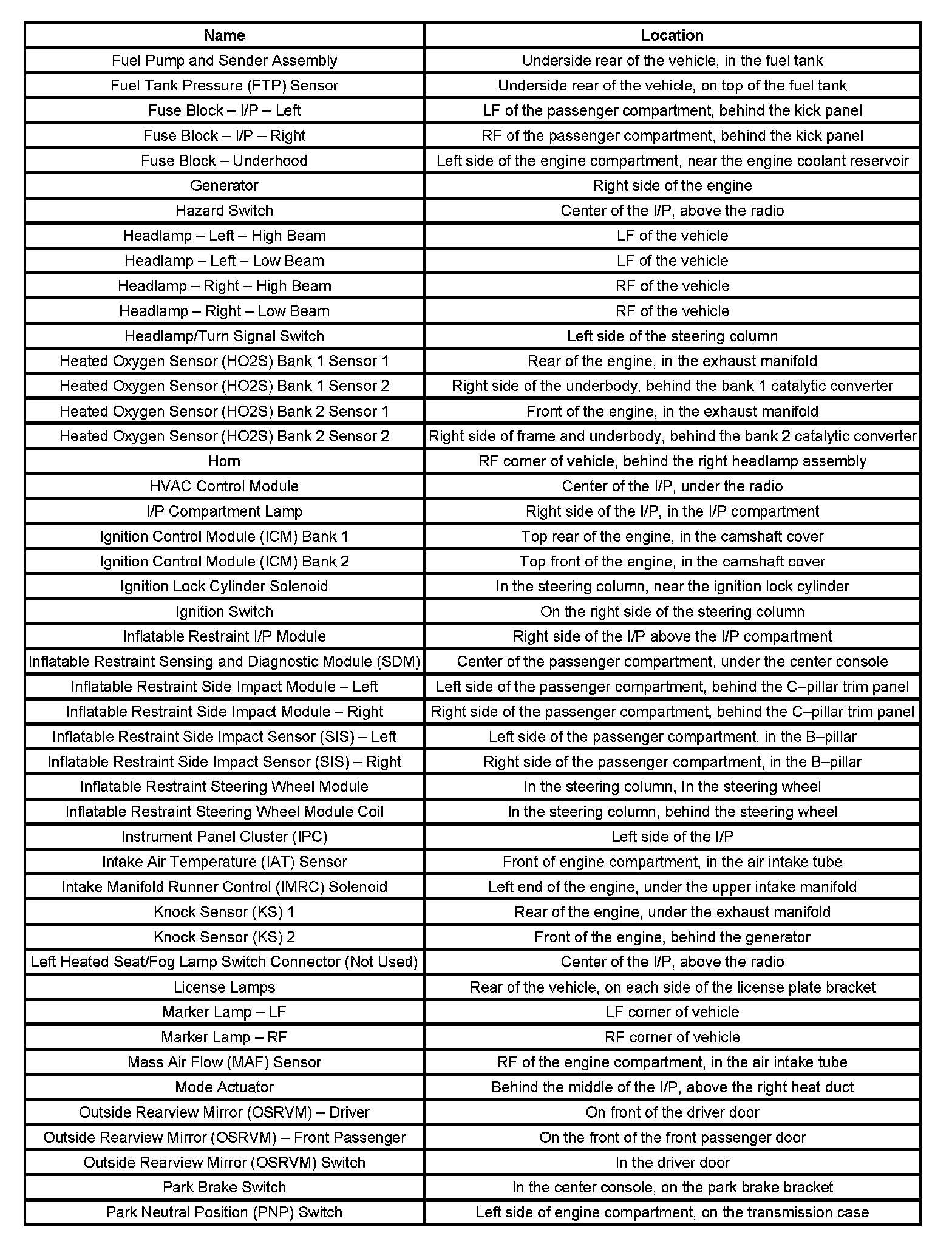

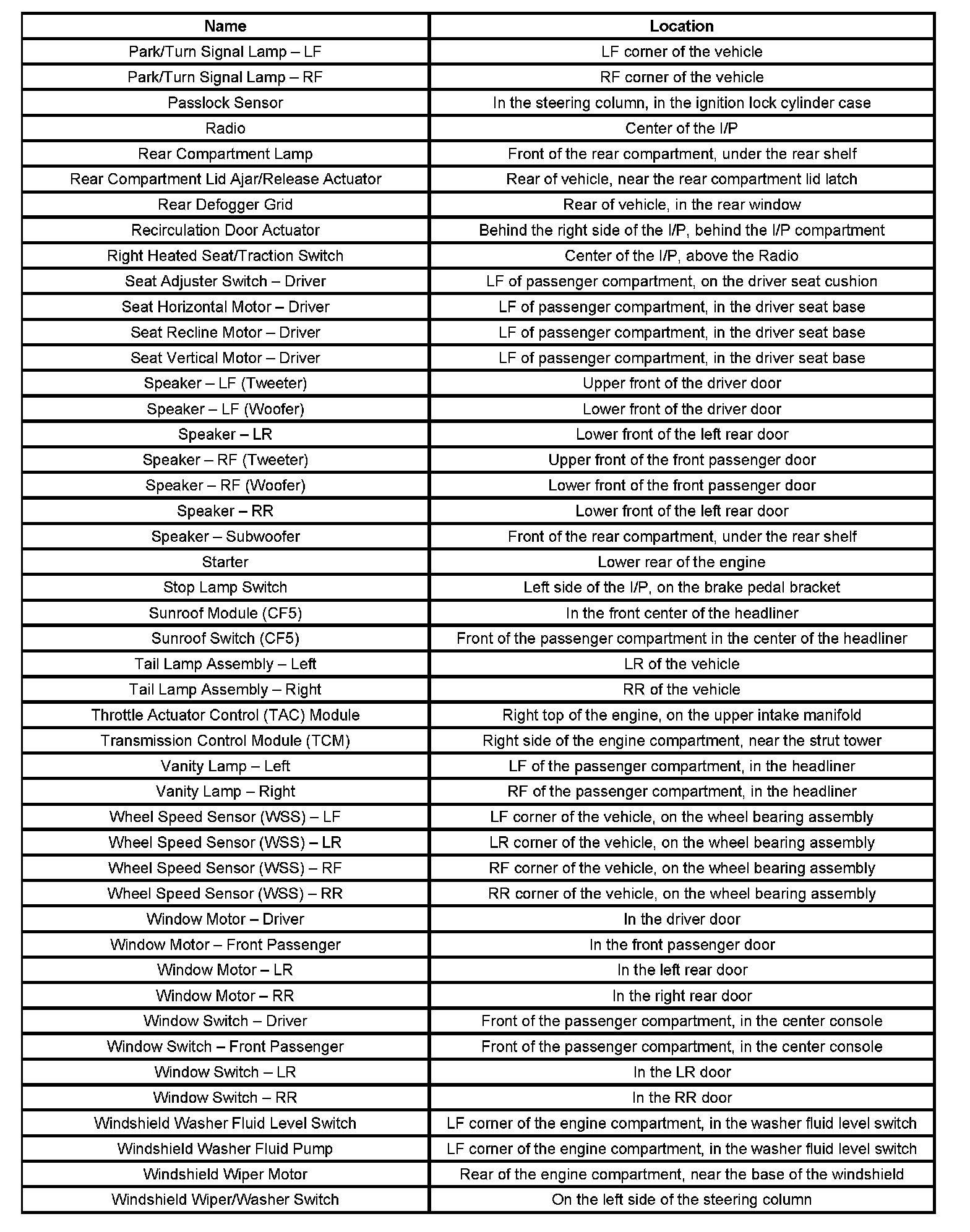

Components

A/C - Fu:



Fu - Pa:



Pa - Wi:
