Compartment Replacement - Instrument Panel (I/P)

COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P)

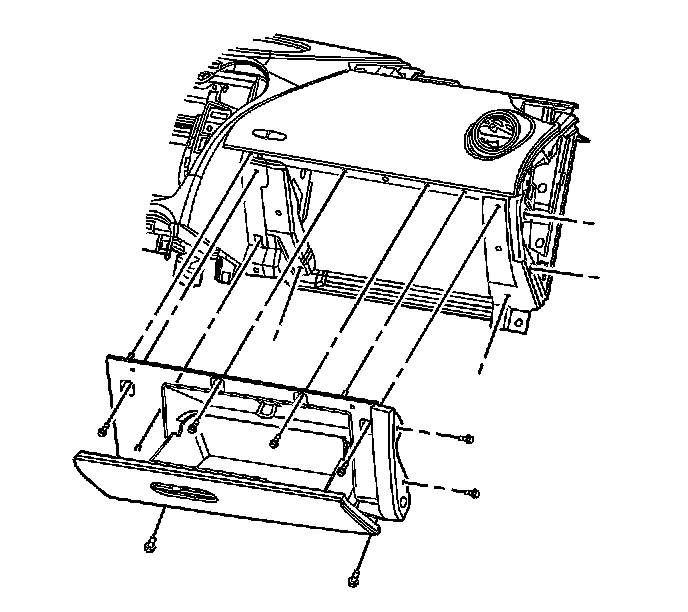

REMOVAL PROCEDURE
1. Remove the right instrument panel (I/P) outer trim cover.




2. Remove the I/P compartment screws.
3. Pull out on the I/P compartment in order to remove.

INSTALLATION PROCEDURE




1. Align the locating pins with the I/P.
2. Push the I/P compartment in order to secure.
3. Install the I/P compartment screws.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the I/P compartment screws to 2.5 N.m (22 lb in).

4. Install the right I/P outer trim cover.
