Home >> Saturn >> 2008 >> Aura L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Hybrid Drive Systems >> System Diagram

System Diagram



Component Connector End Views

Starter Generator X1

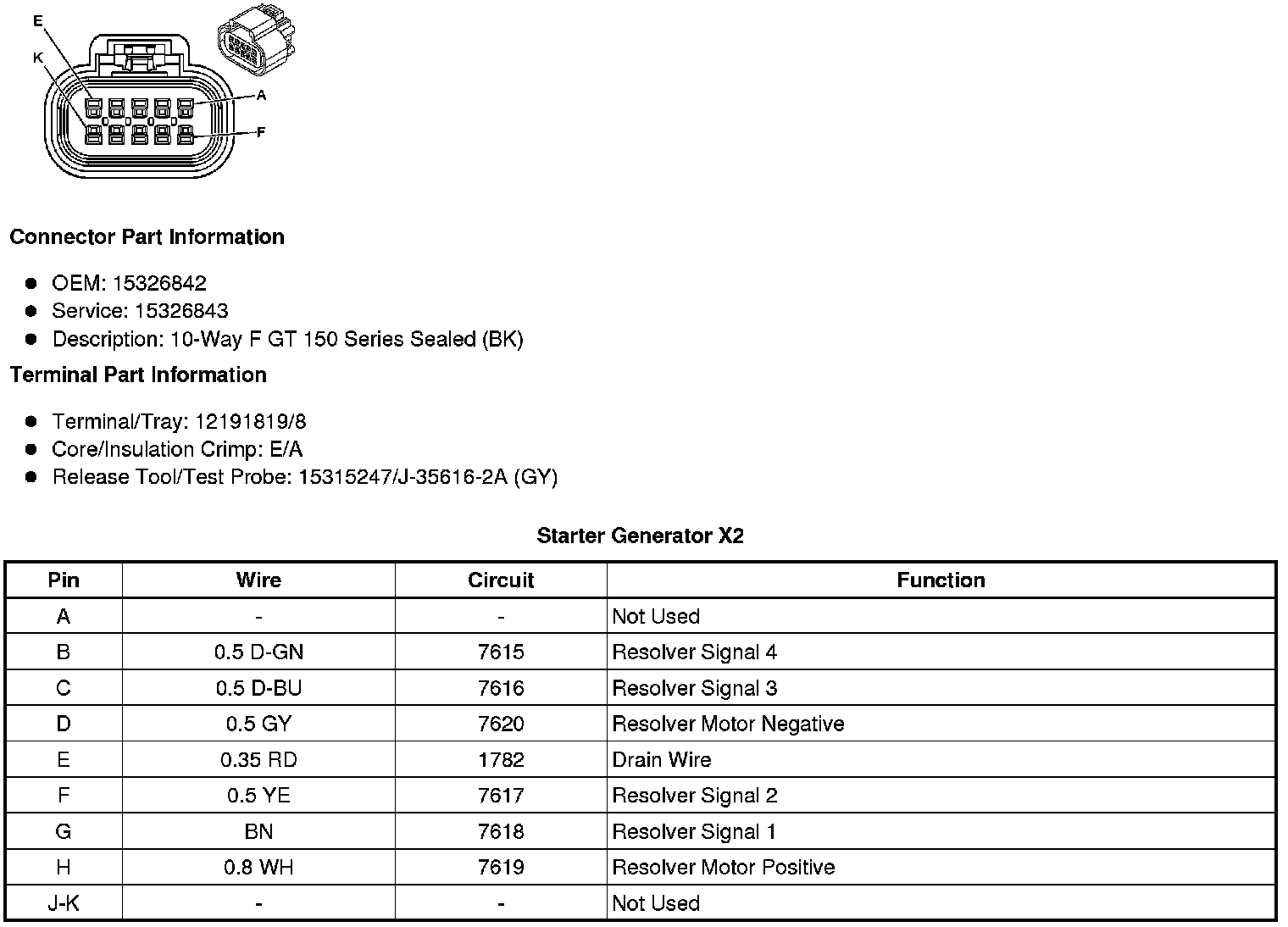

Starter Generator X2





Starter Generator Control Module (SGCM) Coolant Pump (LAT)
