Canister Purge Solenoid



Component Connector End Views

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LAT/LE5)

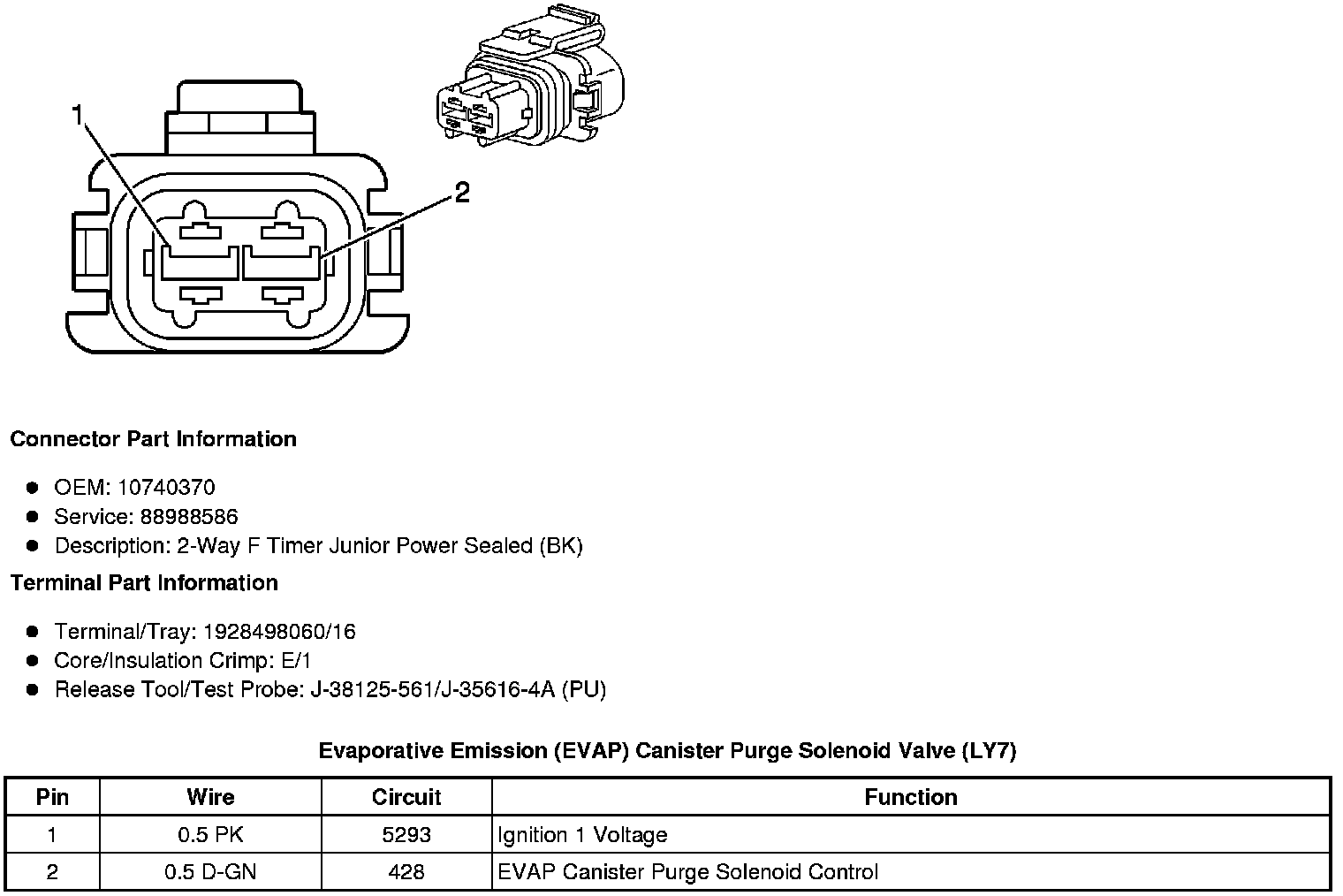

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LY7)

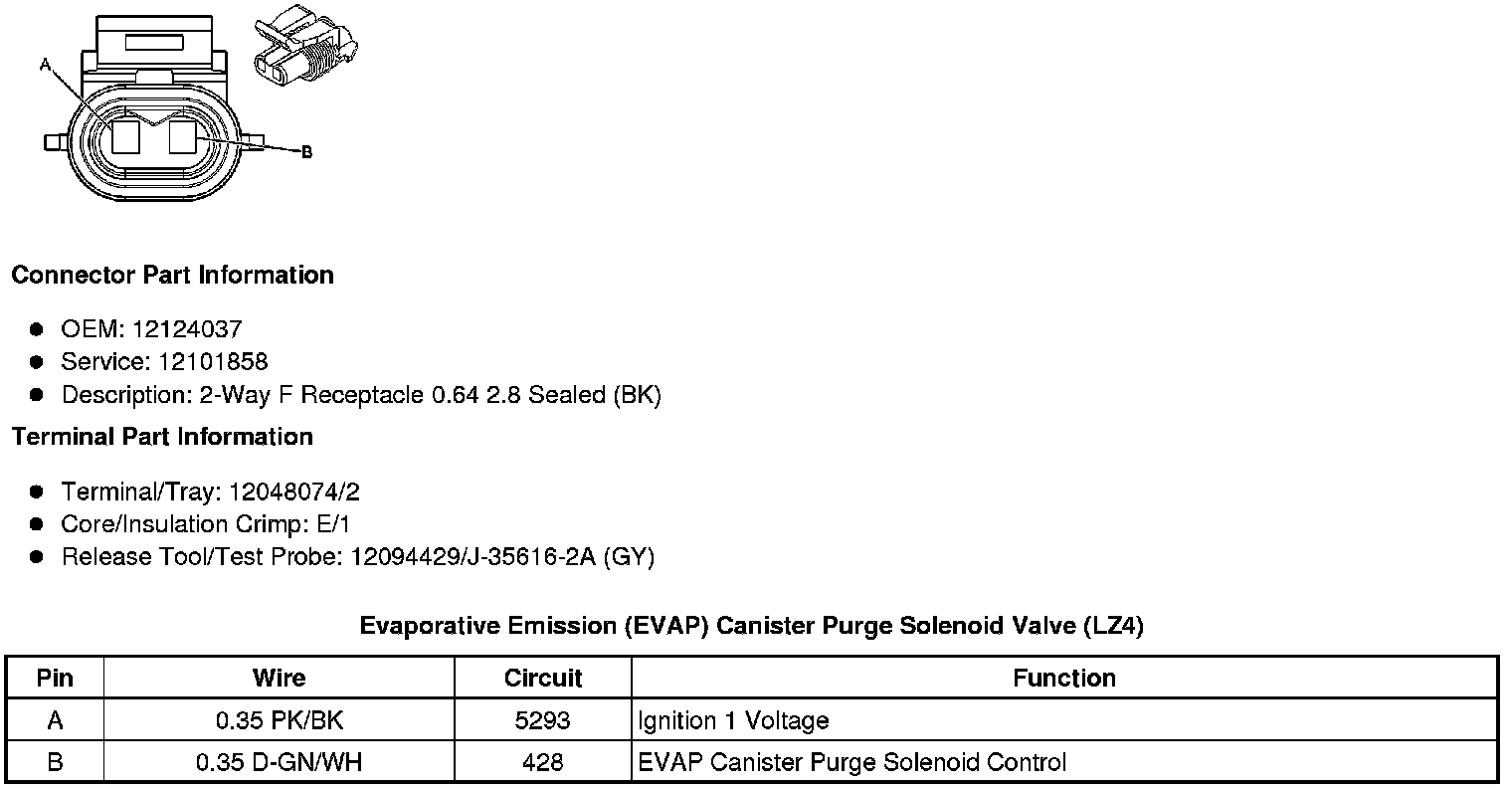

Evaporative Emission (EVAP) Canister Purge Solenoid Valve (LZ4)






Evaporative Emission (EVAP) Canister Vent Solenoid Valve (LAT)






Evaporative Emission (EVAP) Canister Vent Solenoid Valve (LY7)






Evaporative Emission (EVAP) Canister Vent Solenoid Valve (LZ4)
