Rear Seat Audio Control Replacement

Rear Seat Audio Control Replacement

Removal Procedure

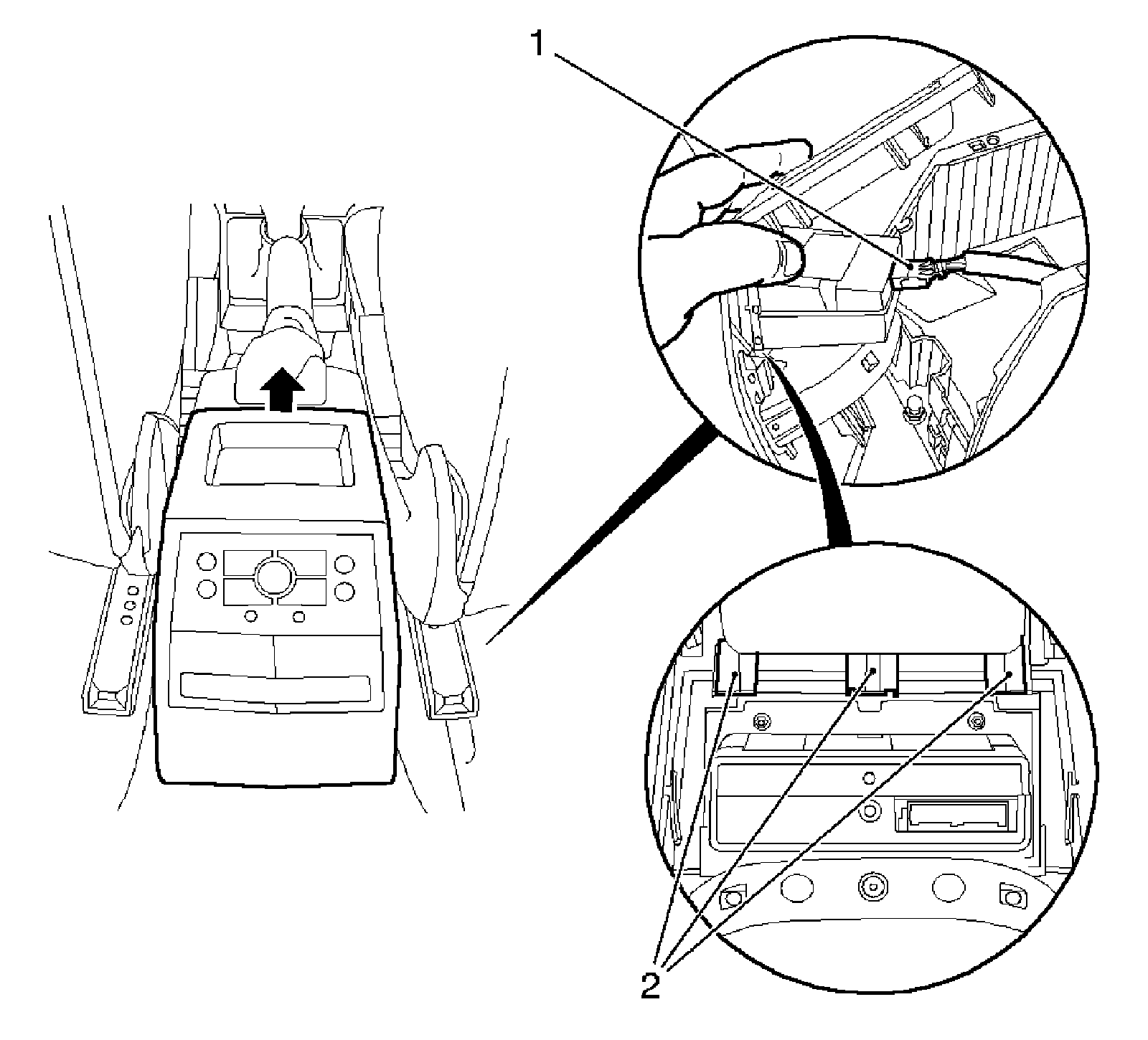

1. Remove the rear storage compartment in the front floor console.

* Remove the storage compartment in the direction of the arrow.
* Disconnect the wiring harness plug (1).

2. Remove the rear seat audio control from the storage compartment.
Release the 3 clips (2).

Installation Procedure

1. Install the rear seat audio control into the storage compartment.
Install in the 6 clips.
2. Install the rear storage compartment into the front floor console.
Connect the wiring harness plug.
