38. Crankshaft Rear Oil Seal Installation

Crankshaft Rear Oil Seal Installation

Special Tools

KM-6623 - Installer

For equivalent regional tools, refer to Special Tools (Tools and Equipment).




1. Position the new seal ring.

* Position the seal ring in such a way that the pulse pick-up bracket is over the corresponding cut-out on the cylinder block.

Note: Do not press in the seal ring all the way.

* Slide the seal ring over the crankshaft. Push, until the seal ring is flush and sits evenly in the cylinder block.

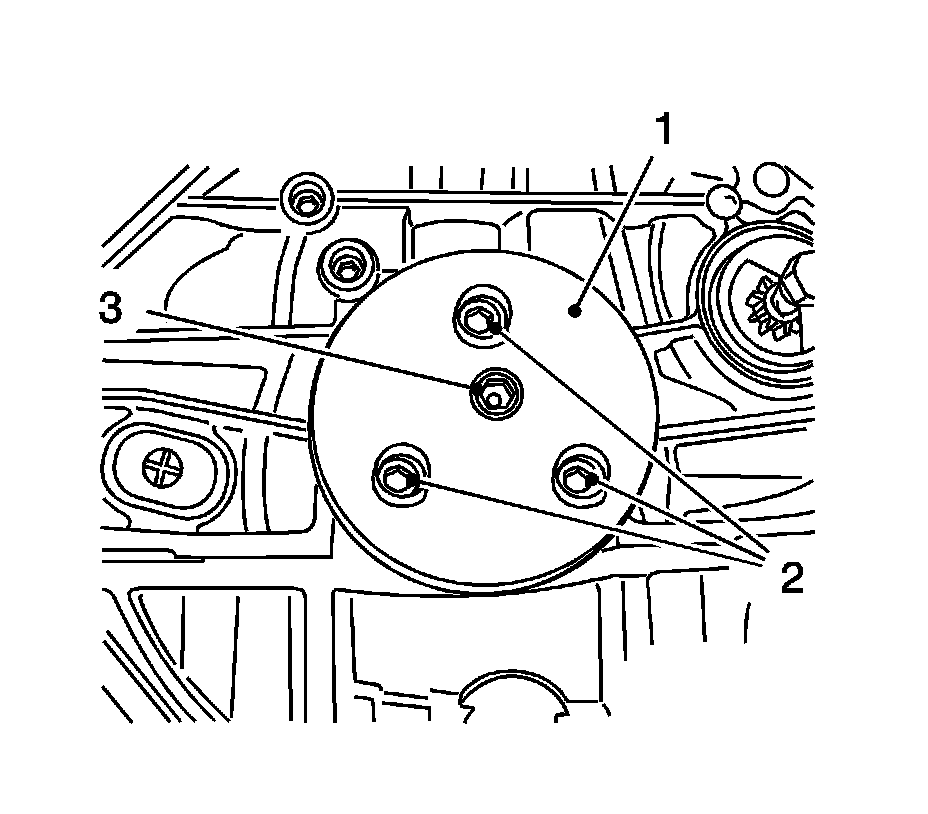

2. Using the KM-6623 - installer , install the seal ring (1).

* Tighten the 3 bolts (2).
* Press the seal ring all the way in.
* Install the bolt (3).

3. Remove the KM-6623 - installer.
4. Remove the 3 bolts.

Caution: Refer to Fastener Caution (Fastener Caution).

5. Install the crankshaft pulse pick-up to the pulse pick-up bracket. Tighten the bolt to 5 Nm (44 lb in).
6. Place the encoder on the crankshaft.
