Planetary Carrier Installation

Planetary Carrier Installation

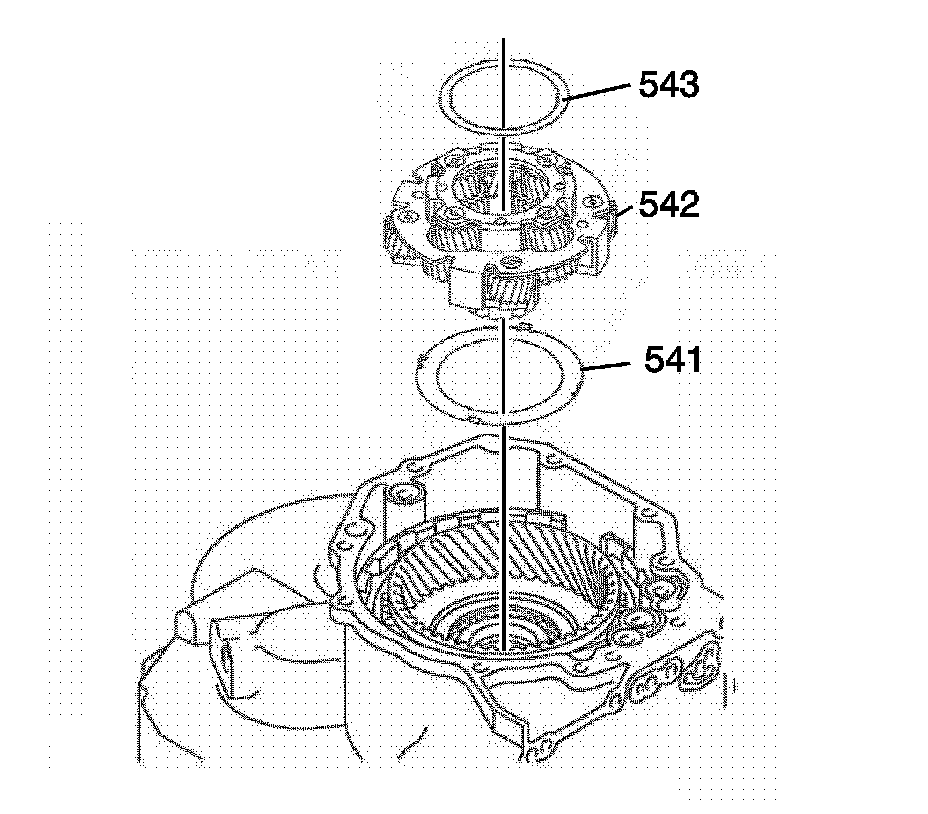

1. Place the carrier thrust washer (541) and the carrier thrust bearing (543) with grease on the carrier assembly (542).
2. Install the carrier assembly (542).
