Wiring Harness Installation

Wiring Harness Installation





Caution: Refer to Fastener Caution (Fastener Caution).

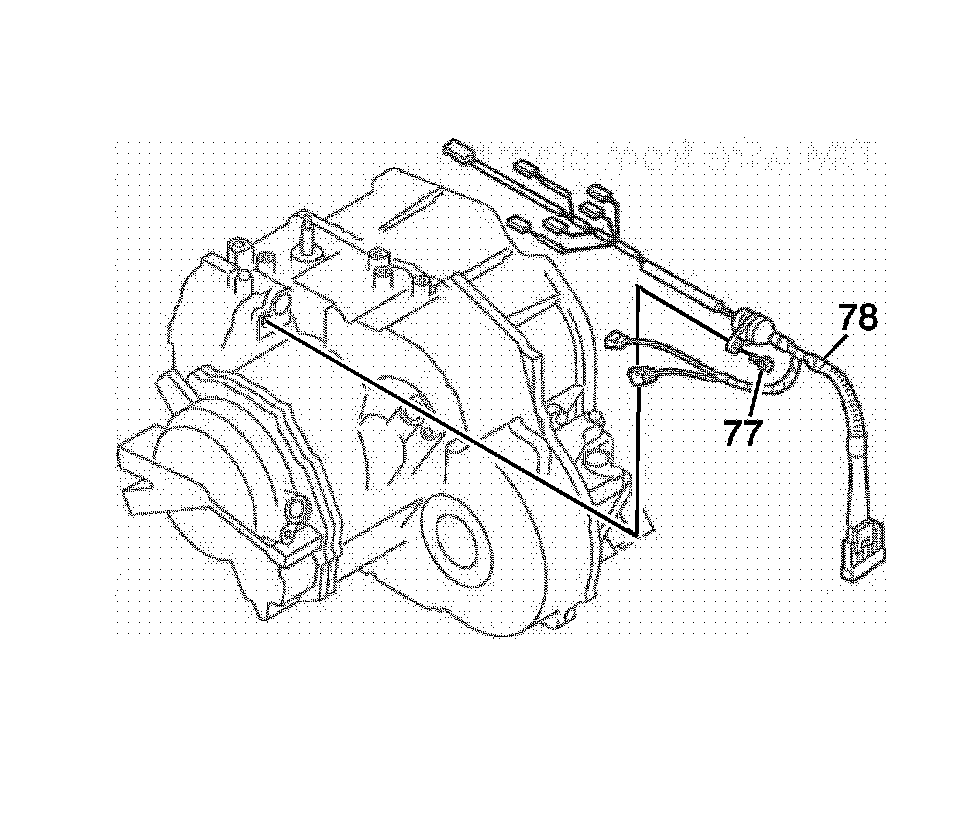

1. Install the wiring harness assembly (78).
2. Install the 1 wiring harness bolt (77). Tighten bolt to 5.4 Nm (48 lb in).
