Front Differential Transfer Drive Gear Assembly Removal

Front Differential Transfer Drive Gear Assembly Removal





Note: The front differential transfer drive gear assembly (14) is non-serviceable and replaced as an assembly.

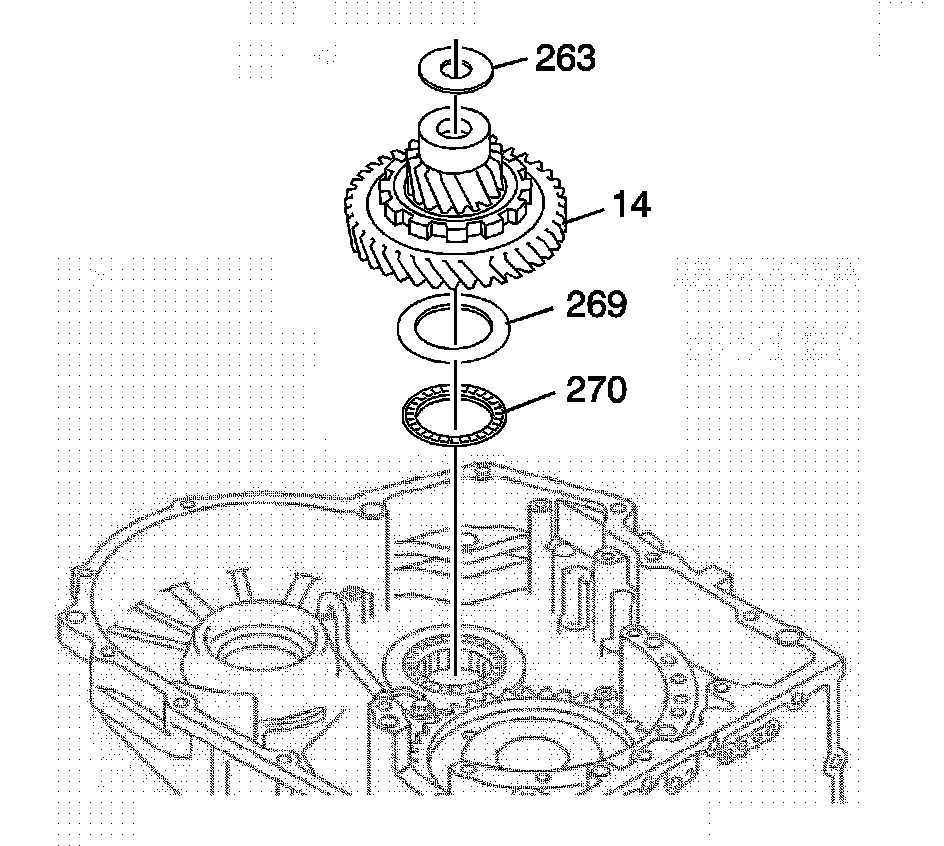

1. Remove the front differential transfer drive gear assembly (14).
2. Remove the front differential transfer drive gear front thrust bearing race (263) from the front differential transfer drive gear assembly (14).
3. Remove the front differential transfer drive gear rear thrust bearing assembly (270) and front differential transfer drive gear rear thrust bearing race (269).
